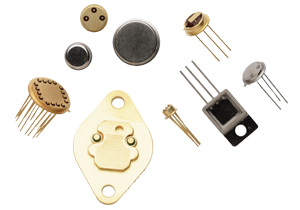

Transistor Outlines - TO Headers
西安福川电子科技有限公司2023-08-21 10:47:59

Transistor Outlines - TO Headers-西安福川电子科技

TO针座适用于高可靠性微型微电路应用。一体式结构提供了极大的强度和抗应力性。没有侧壁有助于促进电路安装以及检查和测试的可访问性。

Spectrum提供多种尺寸和引线数。我们的TO接头是标准的，因此可以满足大多数要求。

我们备有各种尺寸和高度的TO-CAS，几乎可以满足任何要求。

TO接头的优点：

高可靠性

一体式结构

由于没有侧壁，易于接近电路安装、测试和检查

低成本金属罐提供焊接或接缝密封选项。

SSM P/N	LEAD COUNT	PART TYPE	MFG DRW NO	CAVITY SIZE (W)	CAVITY SIZE (L)	PKG OD (L)	PKG OD (W)	S/R OD (L)	S/R OD (W)	S/R ID (L)	S/R ID (W)	B/F LAYOUT	LEAD CONFIG	RECOM LID
HDR00320	8	TO-HEADER	G1.871508P	0.5	0.5	1.5	1					8 + 0	NH	CAN00303
HDR00323	2	TO-HEADER	050-01595-00 REV B	0.43	0.63	1.5	1					2 + 0	NH	CAN00306
HDR00327	8	TO-HEADER	MBFM1-P8-U1									ALO	NH
HDR00328	8	TO-HEADER	N/A									ALO	STRT POST
HDR00329	2	TO-HEADER	SEAL-1159										NH
HDR00331	2	TO-HEADER	UNKNOWN
HDR00332	2	TO-HEADER	UNKNOWN
HDR00333	3	TO-HEADER	SMG100.001.11
HDR00336	3	TO-HEADER	N/A			1.5	1						STRT POST
HDR00337	2	TO-HEADER	150-01442-00 REV C	0.15	0.15	1.53	1					2 + 0	NH	CAN00303
HDR00339	2	TO-HEADER	SMG 100.064	0.704	0.704	1.53	1					2 + 0		CAN00306
HDR00342	2	TO-HEADER	100.003.11	0.43	0.63	1.5	1					2 + 0	NH	CAN00303
HDR00343	4	TO-HEADER	100.092.11	0.5	0.5	1.53	1					4 + 0		CAN00306
HDR00543	8	TO-HEADER	N/A	0.2		0.36						7 + 1	NH	CAN00509
HDR00544	10	TO-HEADER	N/A	0.23		0.36						9+1	NH	CAN00509
HDR00548	10	TO-HEADER	B1.042608	0.23		0.36						10 + 0	NH	CAN00509
HDR00557	8	TO-HEADER	KR5475	0.2		0.36						8 + 0	NH	CAN00509
HDR00562	10	TO-HEADER	N/A	0.23									STRT POST	CAN00509
HDR00563	6	TO-HEADER	B1.020500PGW7F6											CAN00509
HDR00564	6	TO-HEADER	B1.022520	0.2								6 + 0	NH	CAN00509
HDR00565	6	TO-HEADER	N/A	0.2								3X2		CAN00509
HDR00566	8	TO-HEADER	N/A	0.2		0.36						8 + 0	NH	CAN00509
HDR00568	10	TO-HEADER	KR5490 REV 2	0.23	0.23	0.36	0.36					10 + 0	STRT POST	CAN00509
HDR00569	8	TO-HEADER	KR0680 REV 4	0.2	0.2	0.36	0.36					7 + 1	NH	CAN00509
HDR00823	16	TO-HEADER	050-01787-00 REV A	0.4	0.4	0.6	0.6					16 + 0		CAN00814
HDR00827	12	TO-HEADER	KR5441	0.4	0.4	0.6	0.6					12 + 0	NH	CAN00814
HDR01808	3	TO-HEADER	CAH-1038-3	0.1		0.21						2 + 1	STRT POST	CAN01809
HDR01812	4	TO-HEADER	B2.001407	0.1		0.21						3 + 1	STRT POST	CAN01809
HDR01813	4	TO-HEADER	N/A	0.1		0.21						3 + 1	STRT POST	CAN01809
HDR01814	3	TO-HEADER		0.1		0.21						2 + 1	STRT POST	CAN01809
HDR01821	4	TO-HEADER	P2264-02	0.1		0.21						3 + 1	NH	CAN01809
HDR01826	3	TO-HEADER	N/A	0.1		0.21						2 + 1	STRT POST	CAN01809
HDR01828	4	TO-HEADER	N/A	0.1		0.21						3+1	NH	CAN01809
HDR01829	4	TO-HEADER	N/A	0.1		0.21						3 + 1	NH	CAN01809
HDR01832	4	TO-HEADER	01018-043	0.1		0.21						4 + 0	NH	CAN01809
HDR01833	4	TO-HEADER	B2.001407	0.1		0.21						3 + 1	STRT POST	CAN01809
HDR01834	4	TO-HEADER	01018-030									3 + 1	STRT POST
HDR01835	3	TO-HEADER	KR5509 REV 01	0.1	0.1	0.21	0.21					2 + 1	STRT POST	CAN01809
HDR03914	3	TO-HEADER	N/A	0.2		0.36						2 + 1	STRT POST	CAN00509
HDR03920	4	TO-HEADER	D4.212402PGG6F0	0.2		0.36						3 + 1	STRT POST	CAN00509
HDR03922	3	TO-HEADER	050-00426-00	0.2		0.36						2 + 1		CAN00509
HDR03923	3	TO-HEADER	D4.221.307	0.2								2 + 1
HDR03925	3	TO-HEADER	SEAL1217.3									2 + 1
HDR03927	3	TO-HEADER	CH2017_019-2	0.2		0.36						2 + 1	NH	CAN00509
HDR03928	4	TO-HEADER	CH2017_052	0.2		0.36						3 + 1	STRT POST	CAN00509
HDR04604	3	TO-HEADER	CAH-1149-3B	0.1		0.21						2+1	STRT POST	CAN01809
HDR04621	2	TO-HEADER	01046-028-50 REV D	0.1		0.21						1+1	STRT POST	CAN01809
HDR04623	3	TO-HEADER	N/A									2 + 1
HDR04624	2	TO-HEADER	D4.011208	0.1		0.21						1+1	NH	CAN01809
HDR04625	3	TO-HEADER	CH2017_018 REV 2	0.1		0.21						2 + 1		CAN01809
HDR06603	2	TO-HEADER	G4PW001	0.4	0.222							2 + 0	NH	CAN06605
HDR25402	3	TO-HEADER	BP1313	0.44	0.44	0.54	0.54							SL-54001
HDR25708	3	TO-HEADER	150-01902-00 REV A	0.327	0.327	0.65	0.417	0.417	0.417			2 + 1		SL-41403
HDR25709	3	TO-HEADER	150-02085-00 REV A	0.327	0.327	0.65	0.417	0.417	0.417	0.326	0.326	3+0	NH	SL-41404
HDR25802	3	TO-HEADER	150-02083-00 REV A	0.34	0.59	0.837	0.69	0.69	0.54	0.59	0.34	3+0	NH	SL685302
