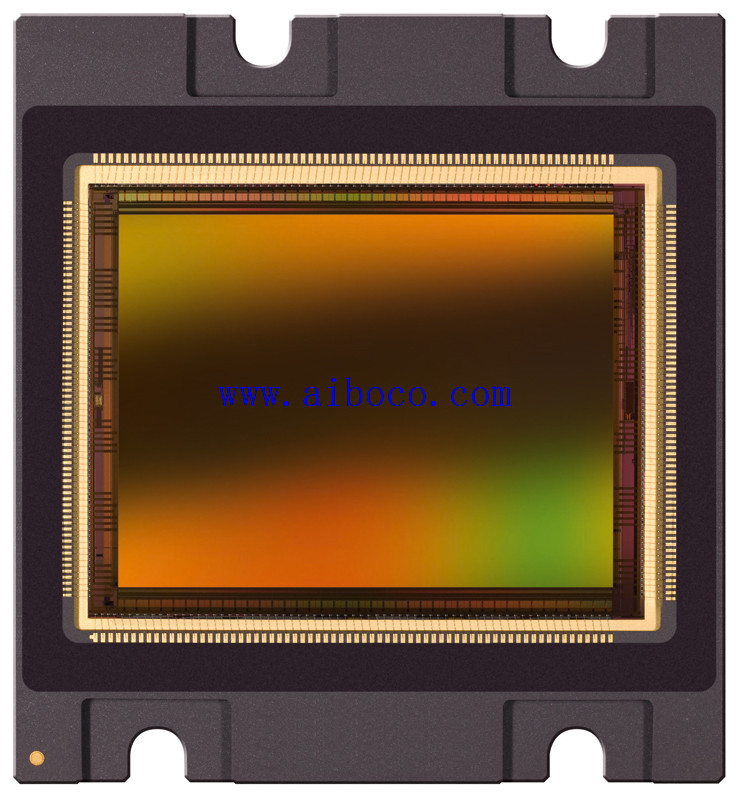

CMOSIS CMV20000 CMOS图像传感器
CMV20000是高灵敏度流水线全局快门CMOS图像传感器，分辨率为5120 x 3840像素。 流水线意味着读出期间的曝光是可能的。 最先进的像素设计使真正的相关双采样（CDS）成为可能，从而显着降低了固定图案噪声和暗噪声。 成像器集成了16个LVDS通道，每个通道以480Mbps的速度运行，从而在全分辨率（每像素12位）下实现30fps的帧速率。 驱动和读出编程可以通过串行外设接口进行设置。 内部定时发生器产生读取和曝光图像传感器所需的信号，而外部曝光触发仍然是可能的。 CMV20000源自一个定制的CMOS图像传感器。 该传感器不用于交通应用。
| Part Number | Version | Chroma | Microlens | Package | Glass |
| CMV20000-1E5M1PA | 5 um epi | mono | Yes | ceramic 143pins PGA | double sided AR coated |
| CMV20000-1E5C1PA | 5 um epi | color RGB Bayer | Yes | ceramic 143pins PGA | double sided AR coated |
| CMV20000-1E5M1PN | 5 um epi | mono | Yes | ceramic 143pins PGA | removable |
| Part status | Production |
| Resolution | 20MP - 5120(H) x 3840(V) |
| Pixel size | 6.4 x 6.4 μm2 |
| Optical format | 35mm |
| Shutter type | Global shutter |
| Frame rate | 30 fps (12 bit) |
| Output interface | 16 LVDS channels @ 480 Mbps |
| Sensitivity | 8,3 V/lux.s |
| Conversion gain | 0,25 LSB/e- |
| Full well charge | 15000 e- |
| Dark noise | 8 e- (RMS) |
| Dynamic range | 66 dB |
| SNR max | 41,7 dB |
| Parasitic light sensitivity | 1/50000 |
| Extended dynamic range | Yes, up to 90 dB |
| Dark current | 125 e-/s (25 degC) |
| Fixed pattern noise | < 8 LSB (<0,2% of full swing) |
| Chroma | Mono and RGB |
| Supply voltage | 1,8V / 3,3V |
| Power | 1100 mW |
| Operating temperature range | -30 to +70 degC (TBC) |
| RoHS compliance | Yes (TBC) |
| Package | 143 pins PGA |
| Socket | Andon Electronics (http://www.andonelectronics.com) |
| 575-18-38-143-01M-R27-L14 (thru-hole) | |
| 575-18-38-143-93M-R27-L14 (surface mount) |
