Hypertac HBB/HBC 电源连接器
西安福川电子科技有限公司2017-10-18 18:52:58

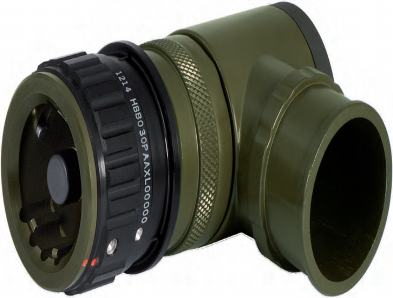

Hypertac HBB/HBC
HBB单极电源连接器结合了高电流处理，更少的空间和卓越的性能在苛刻的环境中，这是苛刻的电力系统应用所需要的。
设计用于易于配对和快速释放，连接器的标准电流额定值为300A和500A（可根据要求提供750A），具有高可靠性和优异的完整性。

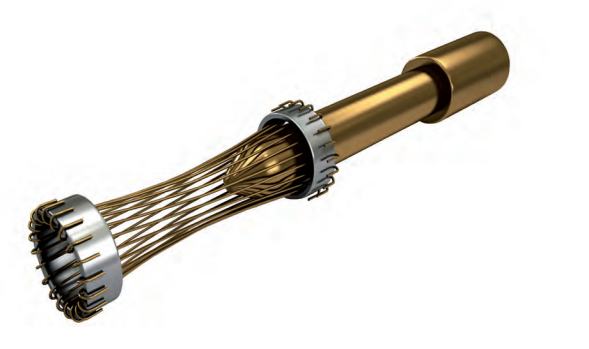

双曲面触点产生低至0.05mW的接触电阻图，有助于减少电阻损耗。这既简化了热管理的任务，并且在较小的空间中实现更好的功率处理，总体质量较低。
HBB提供金属或塑料外壳，IP 67密封，具有360°EMI / RFI屏蔽，并具有极性设计，可轻松组装，方便维护和快速切换。

型号规格	名称描述
HBB030PA1XLAA000	Connector power 300 amp plug
HBB030PA1XR00000	Connector power 300 amp plug
HBB030PA1XS00000	Plug, 300A, pin ct, 50mm crimp
HBB030PA1YLAA000	Connector power 300 amp plug
HBB030PA1YR00000	Connector power 300 amp plug
HBB030PA1YS00000	Plug, 300A, skt ct, 50mm crimp
HBB030PAAXLA0000	Connector power 300 amp plug
HBB030PAAXLA000E	Connector power 300 amp plug EMI Band
HBB030PAAXRB0000	Connector power 300 amp plug
HBB030PAAXRB000E	Connector power 300 amp plug EMI Band
HBB030PAAXSB0000	Plug, 300A, pin ct, 50mm crimp
HBB030PAAYLA0000	Connector power 300 amp plug
HBB030PAAYLA000E	Connector power 300 amp plug EMI band
HBB030PAAYRB0000	Connector power 300 amp plug
HBB030PAAYRB000E	Connector power 300 amp plug EMI Band
HBB030PAAYSB0000	Plug, 300A, skt ct, 50mm crimp
HBB030PABXLA000	Connector power 300 amp plug
HBB030PBAXLA000E	Connector power 300 amp plug EMI band
HBB030PBAYLA000E	Connector power 300 amp plug EMI band
HBB030PBBXLA0000	Connector power 300 amp plug
HBB030PBBXSB0000	Plug 300 amp, pin ct straight backshell
HBB030PCAYLA000E	Connector power 300 amp plug EMI band
HBB030PCBXLA0000	Connector power 300 amp plug
HBB030PCBXLAC000	Connector power 300 amp plug
HBB030PCBXR0000E	Connector power 300 amp plug

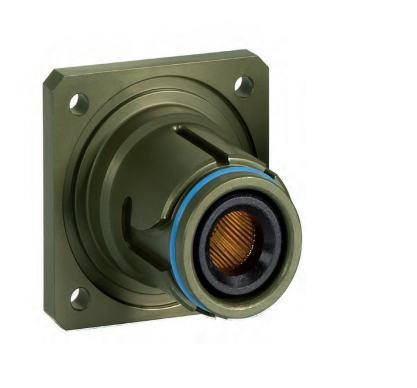

HBB030RA1XL00000	Connector power 300 amp receptacle
HBB030RA1XR00000	Connector power 300 amp receptacle
HBB030RA1YL00000	Connector power 300 amp receptacle
HBB030RA1YR00000	Connector power 300 amp receptacle
HBB030RAAXL00000	Connector power 300 amp receptacle
HBB030RAAXL000M0	Connector power 300 amp receptacle
HBB030RAAXR00000	Connector power 300 amp receptacle
HBB030RAAYL00000	Connector power 300 amp receptacle
HBB030RAAYR00000	Connector power 300 amp receptacle
HBB030RBAXL00000	Connector power 300 amp receptacle
HBB030RBAXL000M0	Connector power 300 amp receptacle
HBB030RBBYL000M0	Receptacle 300 amp front panel Mt
HBB030RCAXL000M0	Connector power 300 amp receptacle
HBB050PA1XLAA000	Connector power 500 amp plug
HBB050PA1XQ00000	Plug, 500A, pin ct, 50mm crimp
HBB050PA1XV00000	Connector power 500 amp plug
HBB050PA1YLAA000	Connector power 500 amp plug
HBB050PA1YQ00000	Plug, 500A, skt ct, 50mm crimp
HBB050PA1YV00000	Connector power 500 amp plug
HBB050PAAXLA0000	Connector power 500 amp plug
HBB050PAAXLA000E	Connector power 500 amp plug EMI Band
HBB050PAAXQB0000	Plug, 500A, pin ct, 50mm crimp
HBB050PAAXVB0000	Connector power 500 amp plug
HBB050PAAXVB000E	Connector power 500 amp plug EMI Band
HBB050PAAYLA0000	Connector power 500 amp plug
HBB050PAAYLA000E	Connector power 500 amp plug EMI Band
HBB050PAAYQB0000	Plug, 500A, skt ct, 50mm crimp
HBB050PAAYV0000E	Connector power 500 amp plug EMI Band
HBB050PAAYVB0000	Connector power 500 amp plug
HBB050PAAYVB000E	Connector power 500 amp plug EMI Band
HBB050PAEXLA000E	Connector power 500 amp plug EMI Band
HBB050PAEXVB000E	Connector power 500 amp plug EMI Band
HBB050PAEYLA000E	Connector power 500 amp plug EMI Band
HBB050PAEYLA0012	Connector power 500 amp plug EMI Band
HBB050PAEYVB000E	Connector power 500 amp plug EMI Band
HBB050PBEXLA000E	Connector power 500 amp plug EMI Band
HBB050PBEXLA0012	Connector power 500 amp plug EMI Band
HBB050PBEXVB000E	Connector power 500 amp plug EMI Band
HBB050PBEYLA000E	Connector power 500 amp plug EMI Band
HBB050PBEYLA0012	Connector power 500 amp plug EMI Band
HBB050PBEYVB000E	Connector power 500 amp plug EMI Band
HBB050PCEXLA000E	Connector power 500 amp plug EMI Band
HBB050PCEYLA000E	Connector power 500 amp plug EMI Band
HBB050RA1XL00000	Connector power 500 amp receptacle
HBB050RA1XV00000	Connector power 500 amp receptacle
HBB050RA1YL00000	Connector power 500 amp receptacle
HBB050RA1YV00000	Connector power 500 amp receptacle
HBB050RAAXL00000	Connector power 500 amp receptacle
HBB050RAAXL000C0	Connector power 500 amp receptacle
HBB050RAAXV00000	Connector power 500 amp receptacle
HBB050RAAYL00000	Connector power 500 amp receptacle
HBB050RAAYL000C0	Connector power 500 amp receptacle
HBB050RAAYL000M0	Connector power 500 amp receptacle
HBB050RAAYL000N0	Connector power 500 amp receptacle
HBB050RAAYV00000	Connector power 500 amp receptacle
HBB050RBAXL000C0	Connector power 500 amp receptacle
HBB050RBAXL000N0	Connector power 500 amp receptacle
HBB050RBAYL000C0	Connector power 500 amp receptacle
HBB-1061	Protective Cap with lanyard. HBB 500 amp
HBB-1150-A	Connector plug 500A, female ct, 90 deg
HBB-1150-B	Connector plug 500A, female ct, 90 deg
HBB-1150-C	Connector plug 500A, female ct, 90 deg
HBB-1150-D	Connector plug 500A, female ct, 90 deg
HBB-1150-E	Connector plug 500A, female ct, 90 deg
HBB-1150-F	Connector plug 500A, female ct, 90 deg
HBB-1151-A	Receptacle 500A, male ct, 90 degree
HBB-1151-B	Receptacle 500A, male ct, 90 degree
HBB-1151-C	Receptacle 500A, male ct, 90 degree
HBB-1151-D	Receptacle 500A, male ct, 90 degree
HBB-1151-E	Receptacle 500A, male ct, 90 degree
HBB-1151-F	Receptacle 500A, male ct, 90 degree
HBB-950-10-120-A-68	Crimp lug 500 amp 120mm tin plated
HBB-950-10-120-B-68	Crimp lug 500 amp 120mm tin plated
HBB-950-10-95-B-68	Crimp lug 500 amp 95mm tin plated
HBB-950-8-35-B-68	Crimp lug 300 amp 35mm tin plated
HBB-950-8-50-A	do not use see HBB-950-8-50-A-68
HBB-950-8-50-A-68	Crimp lug 300 amp 50mm
HBB-950-8-50-B-68	Crimp lug 300 amp 50mm tin plated
HBC030PA1ALAA000	Plug, 300A, pin ct,lug termination
HBC030PABASB000E	Plug,300A, pin ct, crimp termination
HBC030PABBSB0000	Plug,300A, skt ct,50mm crimp termination
HBC030PB1ALAA000	Plug, 300A, pin ct,lug termination
HBC030PBBASB000E	Plug,300A, pin ct, crimp termination
HBC030RA1BL00000	Receptacle, 300A, skt ct,lug termination
HBC030RABAL00000	Receptacle, 300A, pin ct,lug termination
HBC030RB1BL00000	Receptacle, 300A, skt ct,lug termination
HBC050PA1BLAA000	Plug, 500A, skt ct,lug termination
HBC050PABALA0000	Plug, 500A, pin ct,lug termination
HBC050RA1AL00000	Receptacle, 500A, pin ct,lug termination
HBC050RABBL00000	Receptacle, 500A, skt ct,lug termination
HBC112-9	SUB ASSY
HBC113-7	FULL PART NUMBER HBC113-7S = TIN DIPPED
HBC113-7S	Module Sub-Assembly

HBB-Catalog.pdf
