航空军用插座,无键槽
穿舱插座
为了应对高电流,高压直流连接器的非航空电子应用的需求的增长,Rebling将其经过时间验证的快速断开技术与商业级制造技术结合在一起,提供了一系列隔板安装插座,具有OEM厂商所需的功能 我们服务的市场(动力,固定动力,发动机起动,辅助动力和可再生能源)。 这两个两极的隔板安装插座设计为与我们的商业级电缆安装插头连接器配合使用。
Mil Spec Current Rating 600 amps
Peak Current 3,000 amps
Rated Voltage 800 volts
Maximum Wire Size 4/0
Environmental Sealing IP68
Operating Temperature -40° C to +140° C
Flammability Rating UL94 V-0

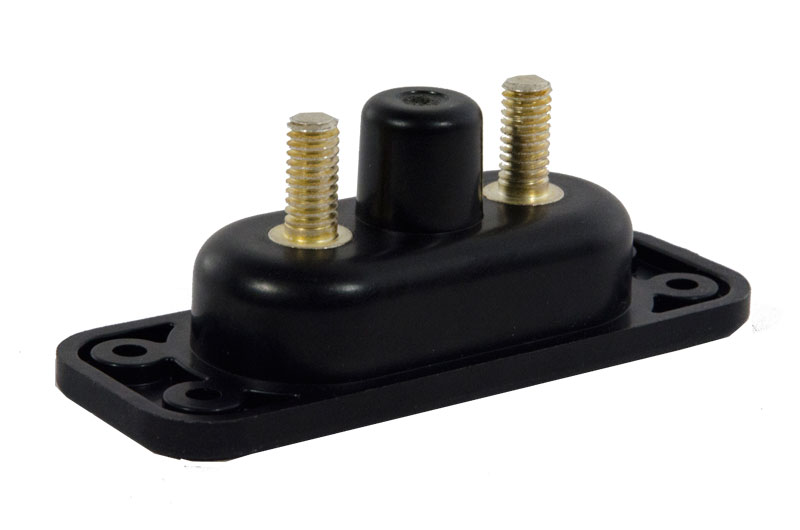

7009-3 Receptacle, Style 1, Threaded Post, Black
7009-51 Receptacle, Style 1, Threaded Post, EMI Shielded, Gray
7009-8 Receptacle, Style 1, Straight Adapter for 4/0 Cable, Brown
700222-1 Gasket with attached Dust Cover, Elastomeric, Black
643A1625 Gasket, Elastomeric, Flat, Black, Conductive for EMI
644A1626 Backshell for rear of receptacle, Style 1, 3/0 or Smaller Cable
644A1627 Backshell for rear of receptacle, Style 1, 4/0 Cable
