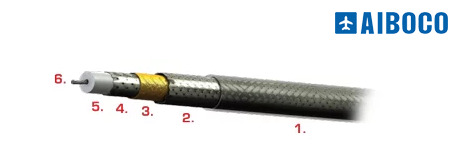

西安福川电子PICVideoMATES®75欧姆是轻型,灵活,低损耗,高温,高科技的电缆,专门用于飞机系统和其他恶劣环境, 全部都由镀银铜导体制成,并带有可激光标记的护套。西安福川电子PIC VideoMATES 75欧姆的飞机视频电缆旨在最大程度地降低EMI,同时提供低损耗的视频信号传输,以确保机舱安全,机上娱乐和座舱显示。西安福川电子PIC VideoMATES飞机电缆和飞机电缆组件被广泛指定用于商用,公司和军用飞机的主要航空电子系统,并且它们均满足或超过FAA可燃性要求。
Part Number | Ω | AWG | Application Notes | Loss dB/100 ft (dB/100m) | O.D. in (mm) | Weight lbs/100 ft (kg/100 m) |
Coax Cables | ||||||
V75268 | 75 | 26 | SMPTE 259M | 5.9 (19.4) @ 135 MHz | 0.12 (3.10) | 1.3 (1.9) |
RG179 Replacement | ||||||
V76261 | 75 | 26 | SMPTE 259M | 5.8 (19.0) @ 135 MHz | 0.12 (3.10) | 1.1 (1.7) |
RG179 Replacement | ||||||
V73263 | 75 | 26 | SMPTE 292M Video | 20.6 (67.6) @ 1.5 GHz | 0.13 (3.18) | 1.5 (2.2) |
V78209 | 75 | 20 | SMPTE 424M Video | 19.0 (62.3) @ 3.0 GHz | 0.21 (5.36) | 3.2 (4.7) |
Triax Cables | ||||||
L7626TX | 75 | 26 | Radar Systems | 5.5 (18.0) @ 100 MHz | 0.16 (3.99) | 2.2 (3.3) |
