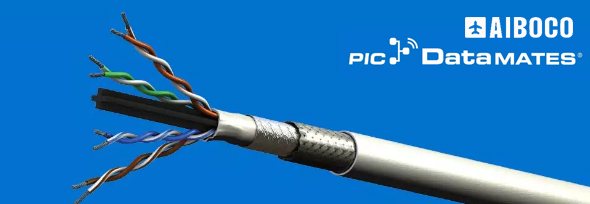

航空数据网络的需求不断增长,其应用范围从监视和管理飞行数据,机舱管理系统到飞行中的乘客通信。 西安福川电子PICDataMATES®可靠的航空数据电缆是专为苛刻的民用和军事应用而设计的高质量,高性能产品。西安福川电子PICDataMATES包括1对,2对,4对和四轴100欧姆屏蔽以太网电缆,可传输高达10G性能的高速数据。 西安福川电子PIC E61224 航空以太网电缆以其轻巧,灵活,低损耗,高温和可激光打标的解决方案而著称,可满足苛刻的高速数据要求。
Part Number | Data Conductor | Description | Weight lbs/100 ft (kg/100 m) | O.D. in (mm) | Temperature Rating (°C) |
E61224 | 24 AWG SPCA | Two shields with laser markable jacket | 1.9 (2.8) | 0.15 (3.81) | -0.25 |
E60224 | 24 AWG SPC | Unshielded with laser markable jacket | 0.9 (1.3) | 0.10 (2.59) | -0.275 |
E5E2224-D | 24 AWG SPC | Low skew, two shields with drain wire and laser markable jacket | 2.0 (3.0) | 0.16 (4.06) | -0.275 |
E5E2222-D | 22 AWG SPC | Low skew, two shields with drain wire and laser markable jacket | 2.3 (3.4) | 0.18 (4.57) | -0.275 |
E20224 | 24 AWG SPCA | One shield with laser markable jacket | 1.1 (1.6) | 0.14 (3.58) | -0.25 |
E13226 | 26 AWG SPCA | One shield with flexible tape wrapped, laser markable jacket | 1.7 (2.5) | 0.13 (3.40) | -0.275 |
E13224 | 24 AWG SPCA | One shield with flexible tape wrapped, laser markable jacket | 2.2 (3.3) | 0.16 (4.06) | -0.275 |
E12224 | 24 AWG TPC | Two shields with laser markable jacket | 1.6 (2.4) | 0.15 (3.71) | -0.36667 |
E10224 | 24 AWG SPC | Two shields with blue fluoropolymer jacket | 2.2 (3.2) | 0.16 (4.06) | -0.25 |
E10222 | 22 AWG TPC | Two shields with laser markable jacket | 2.3 (3.4) | 0.19 (4.80) | -0.33333 |
