CarlisleIT的Tufflite

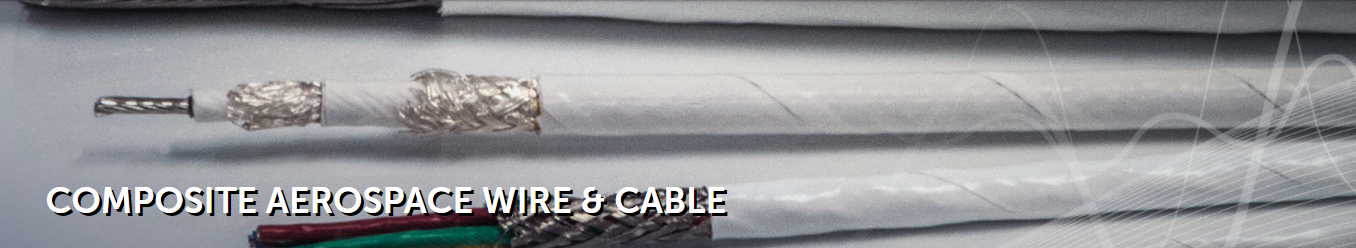

电缆适用于需要小型、轻型、抗电弧、额定温度为260℃的通用电线的应用场合。我们的复合绝缘电缆是为了克服与聚酰亚胺和XL-ETFE有关的限制，与传统的商业航空航天电缆相比，具有尺寸和重量的节省。
Tufflite-包括正常重量(TL)、轻量级(SLT)、欧洲米制(TLR)、增强正常重量(ST)、厚壁(TLS)、铝(TLA)等全套Tufflite线
无缝聚四氟乙烯(PTFE)绝缘线和电缆夹套提供了胶带包覆的所有优点，具有光滑的外观和挤出机的安装特性
无缝产品满足AS22759/80-/92和NEMA WC27500的所有要求
无缝t符合AS22759/180-/192的要求
Part Name AWG Conductor Resistance (Ohms/1000 ft) Conductor Stranding Number x Size (mm²) Finished Wire Diameter Max (in) Type
SLT-260-10N 10 1.25 37 x 26 0.127 SLT Thin Wall
SLT-260-12N 12 1.98 37 x 28 0.104 SLT Thin Wall
SLT-260-14N 14 3 19 x 27 0.083 SLT Thin Wall
SLT-260-16N 16 4.76 19 x 29 0.0695 SLT Thin Wall
SLT-260-16NA 16 5.16 19 x 29 0.0695 SLT Thin Wall
SLT-260-18N 18 6.1 19 x 32 0.062 SLT Thin Wall
TL-260-10N 10 1.25 37 x 26 0.13 TL Medium Wall
TL-260-12N 12 1.98 37 x 28 0.108 TL Medium Wall
TL-260-14N 14 3 19 x 27 0.086 TL Medium Wall
TL-260-16N 16 4.76 19 x 29 0.073 TL Medium Wall
TL-260-16NA 16 5.16 19 x 29 0.073 TL Medium Wall
TL-260-18N 18 6.1 19 x 32 0.065 TL Medium Wall
TL-260-18NA 18 6.79 19 x 30 0.065 TL Medium Wall
TL-260-20N 20 9.77 19 x 34 0.056 TL Medium Wall
TL-260-20NA 20 11.4 19 x 32 0.056 TL Medium Wall
TL-260-22N 22 16 19 x 36 0.047 TL Medium Wall
TL-260-22NA 22 18.6 19 x 34 0.047 TL Medium Wall
TL-260-24NA 24 30.1 19 x 36 0.041 TL Medium Wall
TL-260-26NA 26 58.4 19 x 38 0.037 TL Medium Wall
TL-260-8N 8 0.694 133 x 29 0.187 TL Medium Wall
TLA-175-1/0A 0 TLA Thick Wall Alum
TLA-175-1A 1 0.214 219 x 24 0.42 TLA Thick Wall Alum
TLA-175-2/0A 0 TLA Thick Wall Alum
TLA-175-2A 2 0.268 168 x 24 0.382 TLA Thick Wall Alum
TLA-175-3/0A 0 TLA Thick Wall Alum
TLA-175-4/0A 0 TLA Thick Wall Alum
TLA-175-4A 4 0.427 107 x 24 0.314 TLA Thick Wall Alum
TLA-175-6A 6 0.641 70 x 24 0.258 TLA Thick Wall Alum
TLA-175-8A 8 1.09 41 x 24 0.207 TLA Thick Wall Alum
TLS-260-4/0N 0 TLS Thick Wall Copper
SLT-260-18NA 18 6.79 19 x 30 0.062 SLT Thin Wall
SLT-260-20N 20 9.77 19 x 34 0.053 SLT Thin Wall
SLT-260-20NA 20 11.4 19 x 32 0.053 SLT Thin Wall
SLT-260-22N 22 16 19 x 36 0.044 SLT Thin Wall
SLT-260-22NA 22 18.6 19 x 34 0.044 SLT Thin Wall
SLT-260-24NA 24 30.1 19 x 36 0.038 SLT Thin Wall
SLT-260-26NA 26 58.4 19 x 38 0.034 SLT Thin Wall
