C&K高可靠性连接器
C&K的高可靠性连接器系列包括超小型D-Sub,微D MDM / MDMA和单列直插式微带MTB1。 高可靠性连接器通过在恶劣环境中没有脱气,无磁性,无缺陷,满足世界各地空间机构的苛刻要求。
空间准备连接器
C&K高Rel连接器用于卫星,发射器,望远镜和其他航天器应用(行星,空间探头...),并具有ESA-ESCC,MIL-M24308和GSFC-311P的资格。
应用
空间(卫星,发射器...)
计算机空间系统
天线连接和线束
航天
军事
医用器材
测验设备
SERIES | DESCRIPTION |
---|---|

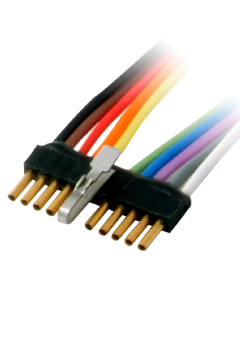

One way connector for linking 2 wires with removable contacts. | |
Compliant to ESA/ESCC3401-001 Specification | |
Compliant to ESA/ESCC 3401-001 Specification | |

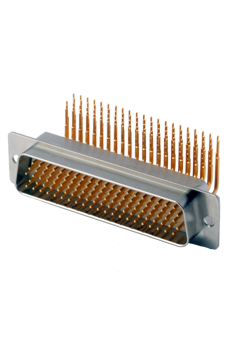

![]() D*M High Density 104 Contacts | Compliant to ESA/ESCC 3401-001 Specification Solderable PCB terminations Available with or without brackets High density layouts |
![]() D*MA | Compliant to ESA/ESCC 3401-002 and 3401-005 Specifications |
![]() | Compliant to ESA/ESCC 3401-020 and 3401-021 Specifications Savers for D*MA and D*M connectors Standard and High density available (all sizes from 9 to 104 ways) |
![]() D*M - Coaxial and Power Contacts | Compliant to ESA/ESCC 3401-004 and 3401-040 Specifications Coaxial contact up to 1GHz Power Contacts from 10 to 40 A Solder or crimp Straight or 90° PCB termination |
![]() D*BM Combo Savers | Compliant to ESA/ESCC 3401-040 and 3401-080 Specifications Savers combo connectors Removable coaxial contacts Removable power contacts Non removable signal contacts Combination arrangements |
![]() D-Sub Lightweight Backshells | Compliant to ESA/ESCC 3401-072 Specification Ultra light weight Machined aluminium alloy |
![]() Fast Locking System | Compliant with ESA/ESCC 3401-085 specification Reduces the number of D*Sub Screwlock types in inventory Avoid loosing piece parts during handling Visual control of the locking effect Eliminate measuring the torque on each screwlock system Save time during the Satellites AIT phase |
![]() D-Sub accessories | Compliant with ESA/ESCC 3401-022 Specification Universal Clip, Screwlocks, Backshells, Dust Caps, Cable Clamps |
FR165: Refers to the old ESA/ESCC 3405-001 Specification Filtration 4000 to 12000 pf Direct filtration included inside the connectors EPPL listed connector | |

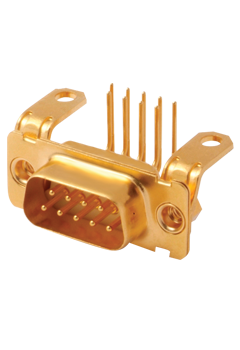

![]() D-Sub MIL-DTL-24308 Class M | D*MA (Removable crimp contact technology), D*M (Solder bucket) and D*M (90° PCB) termination available Non-magnetic Non-outgassing All sizes available (standard and high density) |
![]() MicroD - MDM | Compliant to ESA/ESCC 3401-029 and MIL-PRF-83513 Specification |
| MDMA: Compliant with ESA/ESCC 3401-077 and 3401-078 Specifications |
![]() MicroD - Savers | Compliant with ESA/ESCC 3401-041 Specification |
MicroD - Lightweight Backshell: | Compliant with ESCC specifications 3401-087 Lightweight |
![]() MicroD - Accessories | Compliant with ESA/ESCC 3401-032 Specification |
![]() MTB1 | Compliant with ESA/ESCC 3401-031 Specification Single Line Connectors High performance MicropinTM contact system Large range of termination (cable, pigtail...) Non-magnetic Non-outgassing Single-in-line strip insulator (no metal shell): 2 to 40 cavities |
