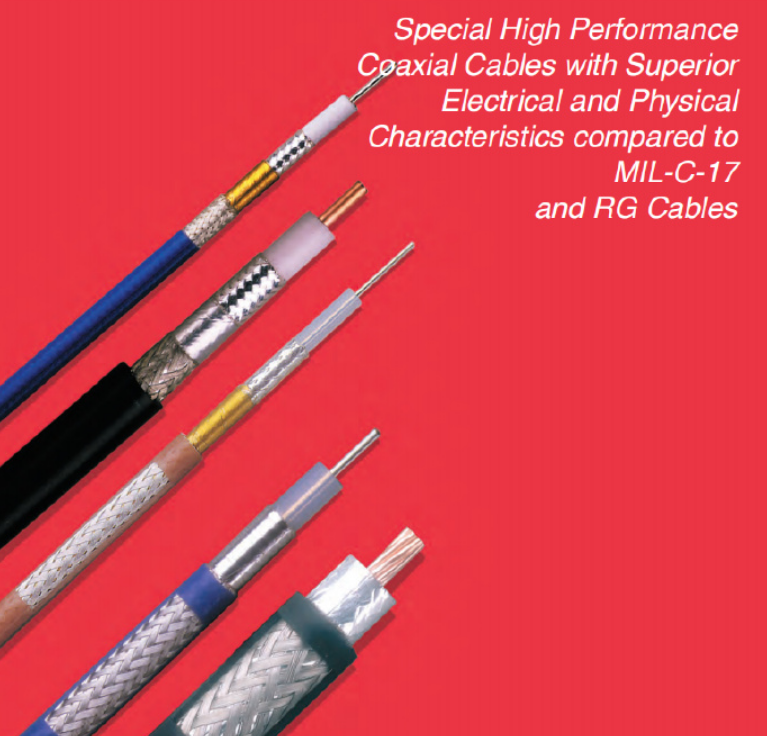

Tensolite同轴电缆是一种传输线,其中一个导体在内部,并与作为第二外部导体的外部柔性金属编织绝缘。由于其电气和机械性能,用Tensolite提供的同轴电缆的基本介质材料是聚四氟乙烯。PTFE的一些吸引人的特性是极低的损耗,高介电强度,在高温和低温下都没有可测量的吸水性和电效率。
Part Number AWG Construction SweptVersion Impedance
M17/60-RG142 18 Solid yes 50ohms
M17/86-00001 12 Stranded no 50ohms
M17/93-RG178 30 Stranded yes 50ohms
M17/94-RG179 30 Stranded no 75ohms
M17/95-RG180 30 Stranded no 95ohms
M17/110-RG302 22 Solid no 75ohms
M17/111-RG303 18 Solid yes 50ohms
M17/113-RG316 25 Stranded yes 50ohms
M17/127-RG393 12 Stranded yes 50ohms
M17/128-RG400 20 Stranded yes 50ohms
M17/136-00001 30 Stranded no 75ohms
M17/137-00001 30 Stranded no 95ohms
M17/152-00001 25 Stranded yes 50ohms
M17/158-00001 18 Solid no 50ohms
M17/169-00001 30 Stranded no 50ohms
M17/170-00001 18 Solid no 50ohms
M17/172-00001 25 Stranded no 50ohms
M17/174-00001 12 Stranded no 50ohms
M17/175-00001 20 Stranded no 50ohms
M17/176-00002 24 Stranded no 77ohms
