A Hybrid Package is a special carrier of hybrid microcircuits and components interconnected as one unit. It can be considered a component of an electronic subsystem.
The Hybrid may consist of a single construction or be made up of sub-modules. Each module usually contains a compartment to house the hermetically packaged hybrids and discrete passive component parts such as transformers, axle-lead resistors, etc.

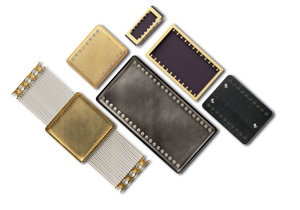

These packages come in a wide variety of package configurations; Ceramic, Metal, DIP style and Flat Pack.
Advantages of Hybrid Packages:
Wide variety of package configurations and lead counts
Packages available in metal, DIP style, Flat Pack
Hermetic
| SSM P/N | LEAD COUNT | PART TYPE | MFG DRW NO | CAVITY SIZE (W) | CAVITY SIZE (L) | PKG OD (L) | PKG OD (W) | S/R OD (L) | S/R OD (W) | S/R ID (L) | S/R ID (W) | B/F LAYOUT | RECOM LID | COMMENTS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HYB00201 | 2 | HYBRID | KM-1017 | 0.48 | 0.535 | 0.65 | 0.59 | 0.65 | 0.59 | 0.595 | 0.54 | |||
| HYB01405 | 14 | HYBRID | KD-80095-A | 0.17 | 0.55 | 0.77 | 0.31 | 0.71 | 0.29 | 0.575 | 0.221 | 0X7 | CL652704 | |
| HYB01406 | 14 | HYBRID | KPP-08700498-014-008 | 0.3 | 0.6 | 0.855 | 0.493 | 0X7 | PLATFORM PACKAGE, PIN # 4 GRND | |||||
| HYB01407 | 14 | HYBRID | KPP-08700498-014-001 | 0.3 | 0.6 | 0.855 | 0.493 | 0X7 | PLATFORM PACKAGE | |||||
| HYB01605 | 16 | HYBRID | KD-H96492-JMI | 0.44 | 0.65 | 0.85 | 0.6 | 0.85 | 0.59 | 0.71 | 0.49 | 0X8 | ||
| HYB01607 | 16 | HYBRID | IDK16F1-941L | 0.17 | 0.65 | 0.8 | 0.31 | 0.77 | 0.395 | 0.65 | 0.22 | 0X7 | CL752702 | |
| HYB02002 | 20 | HYBRID | 52007D | 0.55 | 0.9 | 1.131 | 0.822 | NEO | CAN02002 | |||||
| HYB02413 | 24 | HYBRID | KD-H86255-B | 0.43 | 1.05 | 1.25 | 0.61 | 1.25 | 0.59 | 1.11 | 0.49 | 0X12 | CLX195601 | |
| HYB02416 | 24 | HYBRID | IDK24F1-7405B | 0.58 | 1.144 | 1.295 | 0.79 | 1.295 | 0.79 | 1.179 | 0.58 | SIDES ONLY | CLX277701 | |
| HYB02807 | 28 | HYBRID | KD-85169 | 0.43 | 1.25 | 14X0 | ||||||||
| HYB02810 | 28 | HYBRID | IDK28F2-6593E | 0.43 | 1.25 | 1.4 | 0.61 | 1.39 | 0.584 | 1.32 | 0.5 | 14X0 | ||
| HYB03207 | 32 | HYBRID | KD-77064-B | 0.57 | 1.58 | 1.695 | 0.79 | NSR | 0X16 | |||||
| HYB04004 | 40 | HYBRID | PB114214EC057J | 0.8 | 1.9 | 2.14 | 1.14 | 2.14 | 1.14 | 1.9 | 0.9 | NEO | CRX2141101 | |
| HYB04007 | 40 | HYBRID | KD-77065-B | 0.57 | 1.95 | 2.1 | 0.795 | NSR | 0X20 | |||||
| HYB04402 | 44 | HYBRID | PB100230EC005 | 2.3 | 1 | 0X22 |
