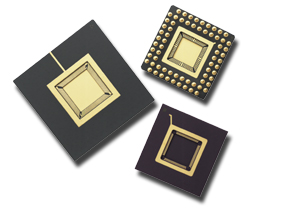

塑料引脚栅格阵列于1993年首次开发，用于解决高性能微处理器中的电源去耦问题。这种方形芯片封装技术专为每个芯片上具有比以前型号更多的晶体管的微处理器而设计。与陶瓷引脚栅格阵列 （CPGA） 不同，PPGA 封装提供更大的热阻、改进的电气性能和配电。所有这些都直接影响对传热敏感的微处理器的潜在性能。
| SSM P/N | LEAD COUNT | PART TYPE | MFG DRW NO | CAVITY SIZE (W) | CAVITY SIZE (L) | PKG OD (L) | PKG OD (W) | S/R OD (L) | S/R OD (W) | S/R ID (L) | S/R ID (W) | B/F LAYOUT | RECOM LID | MATRIX | CAVITY UP/DN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PPG06401 | 64 | PPGA | PGA-64U-C-270 | 0.27 | 0.27 | 1.01 | 1.01 | PL-10201 | UP | ||||||
| PPG06802 | 68 | PPGA | N/A | 0.345 | 0.345 | 1.1 | 1.1 | ||||||||
| PPG06803 | 68 | PPGA | PGA-68-LO1G-MOD | 0.345 | 0.345 | 1.1 | 1.1 | ||||||||
| PPG06805 | 68 | PPGA | PGA-68U-C-AMI-3 | 0.35 | 0.35 | 1.17 | 1.17 | ||||||||
| PPG06806 | 68 | PPGA | NKB | 0.35 | 3.1 | 1.17 | 1.17 | ||||||||
| PPG06807 | 68 | PPGA | PLIC/069TR1000 | 0.3 | 0.3 | 1.165 | 1.165 | ||||||||
| PPG07001 | 70 | PPGA | PGA70U-C-VLSI | 0.2 | 0.2 | 1.317 | 1.317 | ||||||||
| PPG08401 | 84 | PPGA | PLIC/085LL1001 | 0.325 | 0.325 | 1.102 | 1.102 | NSR | NSR | NSR | NSR | 21X21 | N/A | 11 X 11 | |
| PPG08406 | 84 | PPGA | PGA-84U-C-325 | 0.325 | 0.325 | 1.1 | 1.1 | NSR | NSR | NSR | NSR | 21X21 | 11 X 11 | UP | |
| PPG08408 | 84 | PPGA | PGA-84U-C-300-1 | 0.3 | 0.3 | 1.1 | 1.1 | ||||||||
| PPG08801 | 88 | PPGA | 130-XXX-077 | 0.345 | 0.345 | 1.23 | 1.23 | ||||||||
| PPG08802 | 88 | PPGA | PL1C/089TR1000 | 0.32 | 0.32 | 1.363 | 1.363 | 13X13 | |||||||
| PPG10002 | 100 | PPGA | PGA-100U-C-433-1 | 0.433 | 0.433 | 1.324 | 1.324 | ||||||||
| PPG10802 | 108 | PPGA | PGA108U-C-CD | 0.41 | 0.41 | 1.2 | 1.2 | ||||||||
| PPG10803 | 108 | PPGA | PGA108U-C-CD | 0.4 | 0.4 | 1.2 | 1.2 | ||||||||
| PPG12003 | 120 | PPGA | PGA120-STD-1 | 0.433 | 0.433 | 1.32 | 1.32 | ||||||||
| PPG12004 | 120 | PPGA | PL1C/121TR2000 | 0.395 | 0.395 | 1.36 | 1.36 | 13X13 | |||||||
| PPG12005 | 120 | PPGA | PL1C/121TR1001 | 13X13 | |||||||||||
| PPG12401 | 124 | PPGA | PPG-124U-C-420-1 | 0.42 | 0.42 | 1.32 | 1.32 | ||||||||
| PPG13201 | 132 | PPGA | PGA132U-C-CDI-2 | 0.455 | 0.455 | 1.4 | 1.4 | ||||||||
| PPG13501 | 135 | PPGA | N/A | 0.45 | 0.45 | 1.4 | 1.4 | ||||||||
| PPG14403 | 144 | PPGA | PGA-144U-C-400-STD | 0.4 | 0.4 | 1.515 | 1.515 | 15X15 | UP | ||||||
| PPG14404 | 144 | PPGA | PW-S98080-A | 0.3 | 0.3 | 1.515 | 1.515 | 15 X 15 | UP | ||||||
| PPG14405 | 144 | PPGA | PGA-144U-C-450 | 0.45 | 0.45 | 1.53 | 1.53 | NSR | NSR | NSR | NSR | 36X36 | 15 X 15 | UP | |
| PPG14406 | 144 | PPGA | PGA-144U-C-400-2 | 0.4 | 0.4 | 1.53 | 1.53 | ||||||||
| PPG14407 | 144 | PPGA | PGA-14SU-C-380 | 0.38 | 0.38 | 1.515 | 1.515 | ||||||||
| PPG14901 | 149 | PPGA | 0.425 | 0.425 | 1.5 | 1.5 | |||||||||
| PPG14902 | 149 | PPGA | PL2J/149AC1001 | 0.425 | 0.425 | 1.5 | 1.5 | ||||||||
| PPG29902 | 299 | PPGA | 0.641 | 0.641 | 2.06 | 2.06 | 0.846 | 0.846 | 0.735 | 0.735 | UNEVEN | 20 X 20 | DOWN | ||
| PPG38302 | 383 | PPGA | PGA-383D-MS-557 | 0.557 | 0.557 | 2.26 | 2.26 | NSR | NSR | NSR | NSR | 22 X 22 | DOWN |
