SMD (Surface Mount Devices)

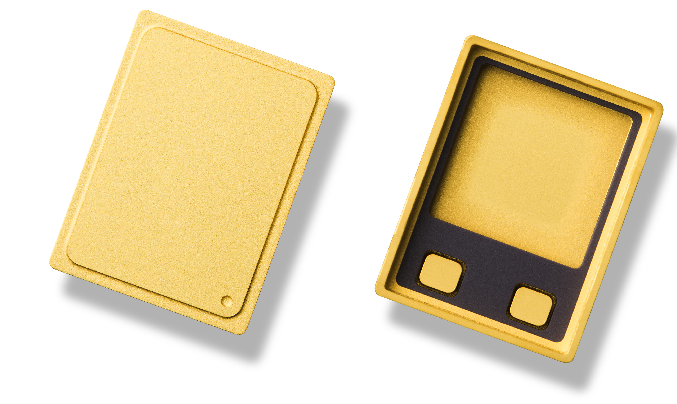

SMD packages are small, highly efficient, excellent thermal performance, and surface mountable. They are ideal for MOSFET, Schottky Rectifiers, and Voltage Regulators for power management applications.
The versatility of these SMD packages also allows them to be adaptable to support many other non-power applications as well.
They are available in three standard sizes (SMD .5mm, SMD 1.0mm, SMD 2.0mm.) Spectrum can also customize these packages to meet your specific requirements.
Advantages of SMD
W/Cu thermal pads allow for significant thermal transfer and provide excellent electrical conductivity
Material composition makes them ideal for thermally sensitive, light weight, low resistance PCB designs
Ease of use in prototyping, testability, fixture options, and welding characteristics
Well suited for radiation tolerant/rad hard applications for Military and Aerospace environments
| SSM P/N | LEAD COUNT | PART TYPE | MFG DRW NO | CAVITY SIZE (W) | CAVITY SIZE (L) | PKG OD (L) | PKG OD (W) | S/R OD (L) | S/R OD (W) | S/R ID (L) | S/R ID (W) | B/F LAYOUT | RECOM LID | COMMENTS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMD050001 | 3 | SMD 0.5 | SD-570-A2829 REV D | 0.17 | 0.206 | 0.4 | 0.296 | 0.4 | 0.296 | 0.36 | 0.256 | CUSTOM | SL394290 | SMD 0.5 PKG / KOVAR RING |
| SMD10003 | 3 | SMD-1 | SD-570-A2830 REV D | 0.34 | 0.34 | 0.625 | 0.45 | 0.625 | 0.45 | 0.585 | 0.41 | CUSTOM | SL619440 | SMD 1.0 PKG / KOVAR RING |
