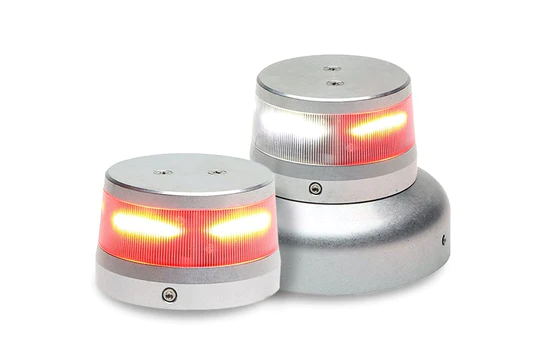

ORION 360 Beacons are the 4th Generation LED beacons for fixed-wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%. Please see documents for more information on this product. Available in 14 VDC and 28 VDC. Red, Red / White Split, and White assemblies available.
Drawing: 72010
Current: 0.53 AMPS average @14VDC 0.26 AMPS average @28VDC
Weight: 0.30 lbs (Narrow Base) 0.37 lbs (Wide Base)
Lens: 68-1972008A30
Dimensions: 2.60"L X 2.6"W X 1.60"H (Narrow Base) 3.67"L X 3.67" W X 2.83" H (Wide Base)
| Model | Part # | Description | Approvals |
| OR36R1N | 01-0772010-50 | Red LED Beacon 14 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36R1W | 01-0772010-52 | Red LED Beacon 14 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36R2N | 01-0772010-10 | Red LED Beacon 28 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36R2W | 01-0772010-12 | Red LED Beacon 28 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36R2WL | 01-0772010-13 | Red LED Beacon 28 VDC, 3.75" Base Lower Mount | FAA TSO-C96a Class III/ STC |
| OR36S1N | 01-0772010-70 | Red / White Split LED Beacon 14 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36S1W | 01-0772010-72 | Red / White Split LED Beacon 14 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36S2N | 01-0772010-30 | Red / White Split LED Beacon 28 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36S2W | 01-0772010-32 | Red / White Split LED Beacon 28 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36S2WL | 01-0772010-33 | Red / White Split LED Beacon 28 VDC, 3.75" Base Lower Mount | FAA TSO-C96a Class III/ STC |
| OR36W2N | 01-0772010-20 | White LED Beacon 28 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36W2W | 01-0772010-22 | White LED Beacon 28 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36W2WL | 01-0772010-23 | White LED Beacon 28 VDC, 3.75" Base Lower Mount | FAA TSO-C96a Class III/ STC |
