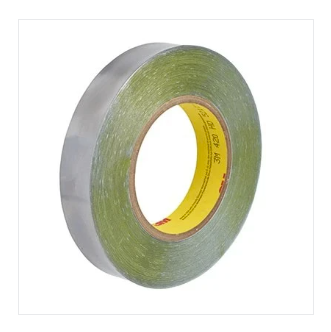

3M Lead Foil Tape 420 is backed with a rubber adhesive, offering excellent conformability in a variety of application conditions, indoors and out

Download the 3M 420 Linered Lead Foil Tape technical data sheet (TDS) and the 3M 420 Linered Lead Foil Tape safety data sheet (SDS) from Silmid today. Once you have logged in or signed up, select the product size you are interested in and the datasheet will be visible for download if one is available.

Features:

Very good conformability

Good thermal properties and will perform over a wide variety of temperature conditions (-60° to 225°F or -54° to 106°C). It has been used at higher temperatures for shorter duration

Electrically and thermally conductive

Can be die-cut into specific shapes

Elevated lead levels in water may result from long term submersion of this product

Best results are obtained when applied to a clean dry surface above 32°F (0°C). Also, by “feathering” the edges – rubbing the tape down with a smooth-edged plastic piece (or similar object) – the tape can be made to better conform to the substrate. This is especially important if the tape is to be used as a “thief” in electroplating where the edges must fully contact the metal base.

Applications:

Electroplating

Radiation barrier

Moisture barrier

Chemical milling

X-ray plate masking

Maskant during paint stripping

Add weight (balance) to equipment parts
