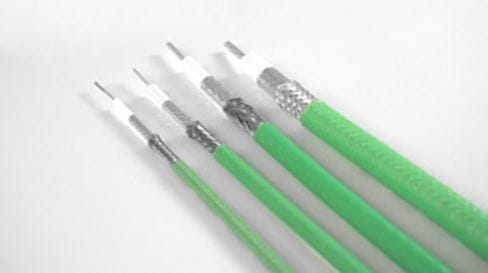

Significantly reduce your radio-frequency cable weight with our lightweight, high-performance, 50- and 75-ohm coaxial and triaxial cables. We offer two types: polyethylene (PFLX) and fluorinated ethylene propylene (TFLX). These high-temperature coaxial and triaxial cables exceed FAA flammability testing requirements. Available in bulk or as prefabricated and certified cable assemblies, contact us to find the right cable solution for your aircraft.
CIIS RF Coaxial Cable Brochure.pdf
PFLX and TFLX cables
Both cables are approved by the Federal Aviation Administration (FAA) and original equipment manufacturers. Though suited for different needs, they’re as much as 75 percent lighter than many radio guide (RG) and MIL-C-17 cables – while delivering superior electrical performance.
PFLX: Resistant to kinking and hydraulic fluids, these cables offer excellent shielding effectiveness and flexibility with low smoke and zero halogen at high temperatures
| Part Number | Ohm (Ω) | Outer Diameter | Min. Bend Radius | Weight (per 100’) | Attenuation (1.0 Ghz, dB/100') |
|---|---|---|---|---|---|
| PFLX140-500 | 50 | .140” | 0.35” | 1.4 lbs | 20.28 |
| PFLX195-500 | 50 | .195” | 0.50” | 2.6 lbs | 10.93 |
| PFLX240-500 | 50 | .242” | 0.75” | 3.8 lbs | 8.79 |
| PFLX240-501 | 50 | .242” | 0.75” | 4.5 lbs | 8.13 |
| PFLX340-500 | 50 | .340” | 0.85” | 7.4 lbs | 5.70 |
| PFLX400-500 | 50 | .405” | 1.0” | 8.4 lbs | 4.00 |
| PFLX500-500 | 50 | .500” | 1.25” | 11.8 lbs | 3.31 |
| PFLX900-500 | 50 | .870” | 3.0” | 26.6 lbs | 1.70 |
| PFLX175-075-01 | 75 | .175” | 0.5” | 1.8 lbs | 16.00 |
| PFLX190-075-01 | 75 | .207” | 0.5” | 2.8 lbs | 8.16 |
| PFLX-275-075-01 | 75 | .274" | 2.75” | 4.26 lbs | 5.89 |
TFLX: These ruggedized cables can withstand temperatures from -55° C to 150° C, and the surrounding jackets are temperature rated to 200° C
| Part Number | Ohm (Ω) | Outer Diameter | Min. Bend Radius | Weight (per 100’) | Attenuation (1.0 Ghz, dB/100') |
|---|---|---|---|---|---|
| TFLX130-100 | 50 | .130” | 1.25” | 1.4 lbs | 16.70 |
| TFLX165-100 | 50 | .165” | 1.75” | 2.2 lbs | 13.00 |
| TFLX205-100 | 50 | .195” | 1.75” | 3.2 lbs | 10.00 |
| TFLX225-100 | 50 | .225” | 2.5” | 4.1 lbs | 8.00 |
| TFLX295-100 | 50 | .295” | 3.0” | 7.2 lbs | 5.95 |
| TFLX410-100 | 50 | .415” | 2.0” | 14.7 lbs | 4.00 |
| TFLX480-100 | 50 | .480” | 4.0” | 19.4 lbs | 3.50 |
| TFLX125-075-01 | 75 | .123” | 0.6” | 1.1 lbs | 17.06 |
| TFLX180-075-01 | 75 | .180” | 1.0” | 2.4 lbs | 10.0 |
| TRX165-100 | 50 TRIAX | .164” | 1.6” | 3.4 lbs | 21.9 |
| TRX245-200 | 50 TRIAX | .240” | 2.5” | 5.0 lbs | 13.10 |
Compare PFLX and TFLX cable characteristics
| B/E Cable Characteristics | PFLX | TFLX |
|---|---|---|
| 50% - 75% Lighter than RG Cable | X | X |
| Greater Flexibility over RG Cable | X | X |
| Small Bend Radius | X | X |
| Skydrol and Hydraulic Fluid Resistant | X | X |
| >90dB Shielding Effectiveness | X | X |
| Low Susceptibility to Kinking | X | |
| Low Smoke, Zero Halogen Emission | X | |
| Low Coefficient of Friction | X | |
| Temperature rated for -55 to +85 C | X | |
| Temperature rated for -55 to +200 C | X | |
| Terminates to EMTEQ Line of Coaxial Connectors | X | X |
| Meets or Exceeds FAR part 25.869, App. F Part 1 (a) (3) for Flammability | X | X |
| Meets or Exceeds Applicable MIL-C-17 Design and Construction Requirements | X | X |
| Meets Boeing and Airbus Smoke and Toxic Gas Emission Tests | X | X |
| Meets or Exceeds Environmental Requirements of RTCA DO-160 and MIL-STD-810 | X | X |
We test our cables and connectors according to several performance metrics, including Voltage Standing Wave Ratio (VSWR), insertion loss, time delay and phase angle at frequencies up to 20 GHZ on our Vector Network Analyzer. Our cables also meet the following performance requirements:
FAR Part 25.869, App. F Part 1 (a)(3) for flammability
Altitude MIL-STD-810C
High Temperature MIL-STD-810C
Low Temperature MIL-STD-810F
Thermal Shock MIL-STD-810C
Temperature Altitude MIL-STD-810C
Humidity MIL-STD-810C
Fungus MIL-STD-810C
Salt Fog MIL-STD-810F
Dust MIL-STD-810C
Static Load MIL-STD-810F
Vibration MIL-STD-810F
Shock MIL-STD-810F
Explosion MIL-STD-810F
Boeing, FAA and Military Specification
