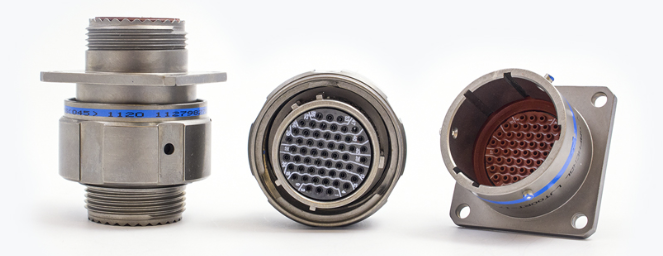

Amphenol® MIL-DTL-38999 系列 I 连接器是为满足航空航天工业的需求而开发的，并为 MIL-C-38999 规范的开发提供了动力，该规范后来被 MIL-DTL-38999 取代。Amphenol 的 MIL-DTL-38999 系列 I 和商用 LJT 系列连接器满足或超过 Mil-Spec 要求，并提供铝或不锈钢以及几种不同的表面处理选项。Amphenol 还符合 MIL-DTL-27599 系列连接器规范。
轻巧、节省空间的设计
触点保护 - 100% 防铲设计可防止插拔过程中的引脚弯曲和短路
快速正向接头 - 3 点卡口锁定系统
消除雾化 - 采用 5 键/键槽设计
防错交替定位 - 由不同的键/键槽位置投保
EMI 屏蔽 - 接地手指标准
九种外壳尺寸和多种外壳样式
触点选项 - 尺寸 8、10、12、16、20、22M 和 22D 压接、焊接、PCB、绕线、同轴电缆、双同轴、三同轴、热电偶、光纤和滤波器
固定焊点 - 安费诺 MIL-DTL-38999 系列 I LJT 提供焊接版本，符合 MIL-DTL-27599 的商业和军用标准
“分离式”挂绳释放样式 - 提供 LJT 插头。通过轴向拉动挂绳，快速断开连接器插头和插座。
库存支持通用性 - 使用标准 MIL-DTL-38999 触点、插入排列和应用工具。
提供符合 RoHS 标准的产品 - 请咨询 Amphenol 航空航天运营部门。
| Part Number | Industry Type | Service Class | Contacts | Alternate Keying Position | Type & Style | Shell Size Insert Arrangement | Strain Relief/Finish Variation Suffix |
|---|---|---|---|---|---|---|---|
| LJT00RP-17-55S | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | Cadmium plated nickel base 175 C |
| LJT00RP-17-55S(005) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (005) (005) - Anodic coating (Alumilite) 200 C |
| LJT00RP-17-55S(011) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (011) (011) - Chromate treated (Iridite 14-2) 125 C |
| LJT00RP-17-55S(014) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (014) (014) - Olive drab cadmium plate nickel base 175 C |
| LJT00RP-17-55S(023) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (023) (023) - Electroless nickel 200 C |
| LJT00RP-17-55S(033) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (033) (033) - Zinc-Nickel Plated 175 C |
| LJT00RP-17-55S(045) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (045) (045) - Nickel-PTFE 175 C |
| LJT00RP-17-55S(453) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | 95 Degrees Normal Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (453) (453) - Electroless Nickel space compatible 200 C |
| LJT00RP-17-55SA | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | Cadmium plated nickel base 175 C |
| LJT00RP-17-55SA(005) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (005) (005) - Anodic coating (Alumilite) 200 C |
| LJT00RP-17-55SA(011) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (011) (011) - Chromate treated (Iridite 14-2) 125 C |
| LJT00RP-17-55SA(014) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (014) (014) - Olive drab cadmium plate nickel base 175 C |
| LJT00RP-17-55SA(023) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (023) (023) - Electroless nickel 200 C |
| LJT00RP-17-55SA(033) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (033) (033) - Zinc-Nickel Plated 175 C |
| LJT00RP-17-55SA(045) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (045) (045) - Nickel-PTFE 175 C |
| LJT00RP-17-55SA(453) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | A A - 77 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (453) (453) - Electroless Nickel space compatible 200 C |
| LJT00RP-17-55SB | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | B B - 65 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | Cadmium plated nickel base 175 C |
| LJT00RP-17-55SD | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | Cadmium plated nickel base 175 C |
| LJT00RP-17-55SD(005) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (005) (005) - Anodic coating (Alumilite) 200 C |
| LJT00RP-17-55SD(011) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (011) (011) - Chromate treated (Iridite 14-2) 125 C |
| LJT00RP-17-55SD(014) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (014) (014) - Olive drab cadmium plate nickel base 175 C |
| LJT00RP-17-55SD(023) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (023) (023) - Electroless nickel 200 C |
| LJT00RP-17-55SD(033) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (033) (033) - Zinc-Nickel Plated 175 C |
| LJT00RP-17-55SD(045) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (045) (045) - Nickel-PTFE 175 C |
| LJT00RP-17-55SD(453) | Commercial | RP- RP- Potting Crimp applications. Supplied with spacer grommet and potting boot | S S - Socket Crimp Solder | D D - 113 Degrees Rotation | LJT00 LJT00 - Crimp Wall Mounting Receptacle - Long Junior Tri-Lock | 17-55 | (453) (453) - Electroless Nickel space compatible 200 C |
