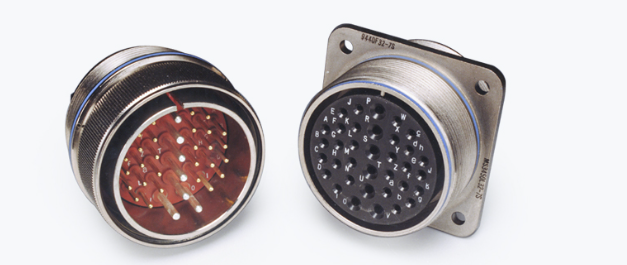

Matrix MIL-DTL-5015 是一款压接后释放高功率连接器，为旧的 MIL-C-5015 焊接类型提供了改进的替代方案。它弥合了旧连接器标准与当前技术中对环境和高性能标准的需求之间的差距。
这种带有 RADSOK® 触点的高功率选项可提供高达 40% 的载流能力。
中到重型环境圆柱形
多个联锁系统确保刀片永久固定 完全密封，可抵御极端环境
七种安装方式，外壳尺寸为 8 至 40
专有的快速断开插头，带或不带挂绳
类别包括铝或不锈钢外壳，或防火墙功能
适合 0 至 16 的触点尺寸
提供 100 多种插件排列模式，可容纳最少 1 个到最多 85 个电路，包括高功率 RADSOK 插座触点
| Part Number | Connector Type | Shell Style | Service Class | Shell Size Insert Arrangement | Contact Type | Alternate Keying Position |
|---|---|---|---|---|---|---|
| MS3456L28-19A | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | A A-Less Pins | Normal Position: No letter required for (no rotation) |
| MS3456L28-19AW | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | A A-Less Pins | W W: 80° |
| MS3456L28-19AX | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | A A-Less Pins | X X: 110° |
| MS3456L28-19AY | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | A A-Less Pins | Y Y: 250° |
| MS3456L28-19AZ | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | A A-Less Pins | Z Z: 280° |
| MS3456L28-19B | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | B B-Less Sockets | Normal Position: No letter required for (no rotation) |
| MS3456L28-19BW | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | B B-Less Sockets | W W: 80° |
| MS3456L28-19BX | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | B B-Less Sockets | X X: 110° |
| MS3456L28-19BY | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | B B-Less Sockets | Y Y: 250° |
| MS3456L28-19BZ | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | B B-Less Sockets | Z Z: 280° |
| MS3456L28-19P | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | P P-Pin Contacts | Normal Position: No letter required for (no rotation) |
| MS3456L28-19PW | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | P P-Pin Contacts | W W: 80° |
| MS3456L28-19PX | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | P P-Pin Contacts | X X: 110° |
| MS3456L28-19PY | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | P P-Pin Contacts | Y Y: 250° |
| MS3456L28-19PZ | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | P P-Pin Contacts | Z Z: 280° |
| MS3456L28-19S | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | S S-Socket Contacts | Normal Position: No letter required for (no rotation) |
| MS3456L28-19SW | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | S S-Socket Contacts | W W: 80° |
| MS3456L28-19SX | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | S S-Socket Contacts | X X: 110° |
| MS3456L28-19SY | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | S S-Socket Contacts | Y Y: 250° |
| MS3456L28-19SZ | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | L L: Aluminum shell, electroless nickel finish, fluid resistant insert | 28-19 | S S-Socket Contacts | Z Z: 280° |
| MS3456W28-19P | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | W W: Aluminum shell, cadmium olive drab finish, fluid resistant | 28-19 | P P-Pin Contacts | Normal Position: No letter required for (no rotation) |
| MS3456W28-19PW | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | W W: Aluminum shell, cadmium olive drab finish, fluid resistant | 28-19 | P P-Pin Contacts | W W: 80° |
| MS3456W28-19PX | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | W W: Aluminum shell, cadmium olive drab finish, fluid resistant | 28-19 | P P-Pin Contacts | X X: 110° |
| MS3456W28-19PY | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | W W: Aluminum shell, cadmium olive drab finish, fluid resistant | 28-19 | P P-Pin Contacts | Y Y: 250° |
| MS3456W28-19PZ | MS MS: Matrix 5015 Military Standard | 3456 3456: Military Straight Plug | W W: Aluminum shell, cadmium olive drab finish, fluid resistant | 28-19 | P P-Pin Contacts | Z Z: 280° |
