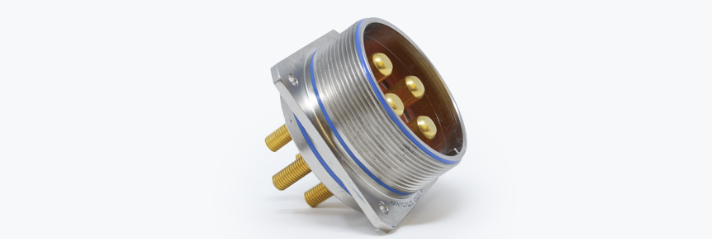

高功率 5015 系列采用先进的插座触点技术，与标准 40 连接器触点相比，载流能力提高了 50-5015%。这些高功率连接器采用成熟的 RADSOK® 技术以及大电流、高温回火夹具，可为任何工作温度提供解决方案。利用久经考验的 Matrix 5015 和 MGT-5015 连接器配接设计和一系列新的触点端接方法，高功率系列在标准目录产品中提供定制连接器性能。
与标准 40 连接器相比，载流能力提高 50-5015%
目录定制缩短了设计导入时间
标准接口允许用户在需要高性能的地方利用现有的布线设计
触点端接方法，包括压接、公螺纹和母螺纹端接、焊接、PCB 和母线
超过 25 种工具刀片布置，载流能力从 50 到 1200 安培
易于定制，型号可在 48 小时内提供
| PKB00DTM18-13P | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | P P: Pin |
| PKB00DTM18-13P | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | P P: Pin |
| PKB00DTM18-13PW | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | P P: Pin |
| PKB00DTM18-13像素 | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | P P: Pin |
| PKB00DTM18-13PY | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | P P: Pin |
| PKB00DTM18-13PZ | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | P P: Pin |
| PKB00DTM18-13秒 | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | S S: Standard Socket Contacts |
| PKB00DTM20-02P | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | P P: Pin |
| PKB00DTM20-02P | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | P P: Pin |
| PKB00DTM20-02R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-02R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-02秒 | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | S S: Standard Socket Contacts |
| PKB00DTM20-02秒 | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | S S: Standard Socket Contacts |
| PKB00DTM20-02吨 | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | T T: Temper-Grip recommended for 150°C + |
| PKB00DTM20-02吨 | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-02 | T T: Temper-Grip recommended for 150°C + |
| PKB00DTM20-08R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-08RW | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-08RX | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-08RY | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-08RZ | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | R R: RADSOK recommended up to 150°C |
| PKB00DTM20-08T | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | T T: Temper-Grip recommended for 150°C + |
| PKB00DTM20-08TW | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | T T: Temper-Grip recommended for 150°C + |
| PKB00DTM20-08TX | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | T T: Temper-Grip recommended for 150°C + |
| PKB00DTM20-08TY | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | T T: Temper-Grip recommended for 150°C + |
| PKB00DTM20-08TZ | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 20-08 | T T: Temper-Grip recommended for 150°C + |
