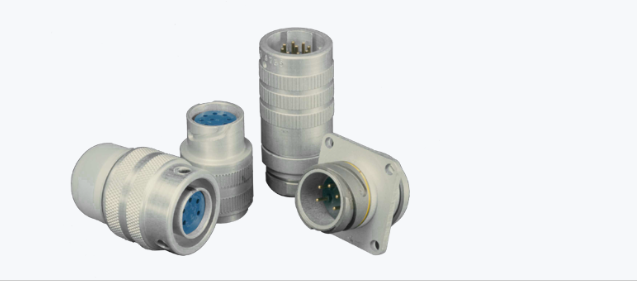

Amphenol® 165 系列连接器
西安福川电子科技有限公司2023-09-21 17:05:17

Amphenol® 165 系列连接器-西安福川电子科技-高速连接器

描述：

Amphenol® 67 系列连接器非常适合需要轻到中等重量、耐用、环境密封连接器的应用。

Amphenol® 165 系列连接器非常适合需要满足 MIL-C-5015 要求的轻型连接器的应用。

特点和优点：

67系列

工作温度范围为 -67 °F （-55 °C）至 257 °F （125 °C），符合 MIL-C-5015 标准
密封连接器能够在 1500,70 英尺高度下实现 000 VRMS
10Gs 时的抗振性为 2 至 000,20 cps
灌封时防潮性超过 MIL-C-5015 要求
五种外壳样式
可选择单元式后端索环或灌封装置
17 种刀片配置
提供四种结构等级

165系列

快速、正向、卡口耦合
插头和插座中的 O 形圈密封件使连接器在配接时具有耐压性和防水保护
符合 MIL-C-5015 C 级结构的压力密封要求

Voltage Rating

	Rating**	Mechanical Spacing (Nominal)	Flashover V-RMS*	Test V-RMS*	Recommended Working Voltage
	Rating**	Mechanical Spacing (Nominal)	Flashover V-RMS*	Test V-RMS*	DC	AC
Sea Level (unsealed)	A	.034	2,000	1,500	700	500
Sea Level (unsealed)	B	.046	2,300	1,800	840	600
Sea Level (sealed)	A	.034	2,500	2,000	700	500
Sea Level (sealed)	B	.046	3,000	2,500	840	600
70,000 ft (unsealed)	A	.034	500	375	175	125
70,000 ft (unsealed)	B	.046	600	450	210	150
70,000 ft. (sealed)	A	.034	2,500	1,500	700	500
70,000 ft. (sealed)	B	.046	3,000	1,800	840	600

*Rating:
"B" is rating for insert 14-5 which takes a higher voltage
"A" rating is for other inserts

** Typical Flashover Voltages at Standard Conditions
(unsealed) Refers to connectors with no provisions for sealing front or rear areas
(sealed) Refers to connectors that are potted or pressurized in mounting, with front and rear areas sealed.

Part Number	Connector Type	Shell Style	Shell Finish	Contact Type	Shell Size Insert Arrangement	Contacts	Alternate Keying Position
PKB00DWT16-12P	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	P P: Pin	16-12: Normal
PKB00DWT16-12P	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	P P: Pin	Normal
PKB00DWT16-12R	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	R R: RADSOK recommended up to 150°C	16-12: Normal
PKB00DWT16-12R	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	R R: RADSOK recommended up to 150°C	Normal
PKB00DWT16-12S	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	S S: Standard Socket Contacts	Normal
PKB00DWT16-12S	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	S S: Standard Socket Contacts	16-12: Normal
PKB00DWT16-12T	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	T T: Temper-Grip recommended for 150°C +	Normal
PKB00DWT16-12T	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	16-12	T T: Temper-Grip recommended for 150°C +	16-12: Normal
PKB00DWT20-02P	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	20-02	P P: Pin	20-2: Normal
PKB00DWT20-02P	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	20-02	P P: Pin	Normal
PKB00DWT20-02S	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	20-02	S S: Standard Socket Contacts	Normal
PKB00DWT20-02S	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	20-02	S S: Standard Socket Contacts	20-2: Normal
PKB00DWT20-02T	PKB PKB: 5015 High Power with bayonet coupling	00 00: Wall Mount Receptacle	DW DW: Thick Olive Drab Cadmium	T T: PC Tail (Potted-in)	20-02	T T: Temper-Grip recommended for 150°C +	Normal
