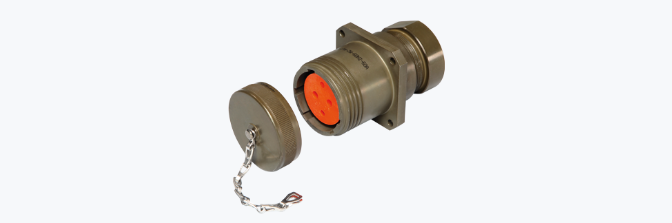

Amphenol 商用 L 类重型电源连接器相当于符合 MIL-DTL-22992 标准的连接器 - 我们最大尺寸的圆柱形连接器。这些坚固耐用的高放大器连接器仅在 MIL-DTL-22992 规范定义的特定配置中可用。这种严格的配置控制确保了电路的正确互连，以实现最大的安全性和可靠性。
重电气负载：电流范围为 40 至 200 安培
直流或单/三相，60/400赫兹交流电
自动接地以确保安全
基于 MIL-DTL-22992 认证

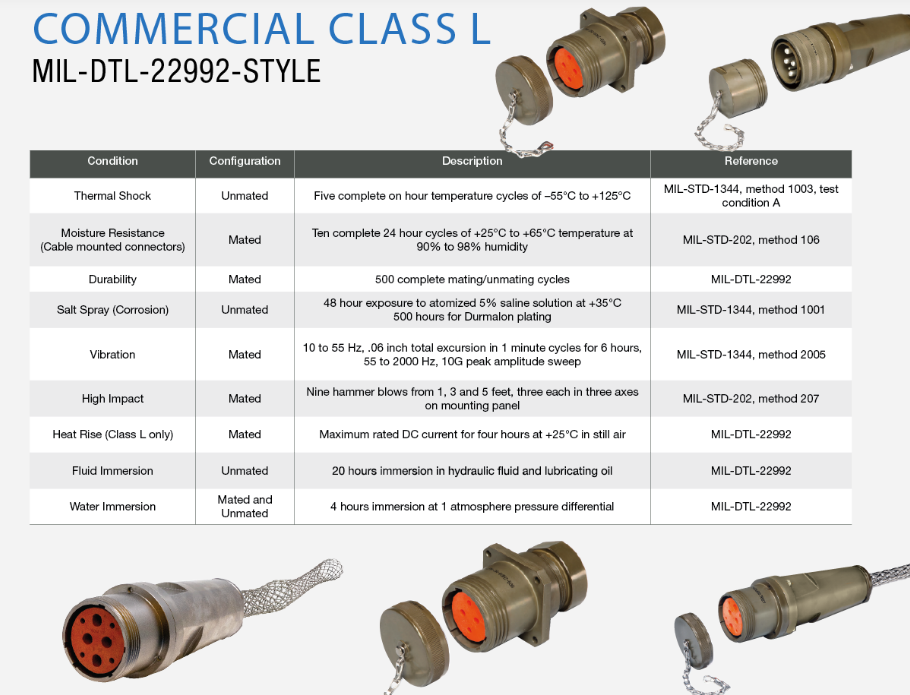

耐热、潮湿、振动、高冲击和浸泡等操作环境 - 见“技术信息”中的图表
双短截线耦合螺纹，连接速度更快;无交叉螺纹，易于清洁
左手附件螺纹可最大限度地减少电缆扭曲、断线、意外连接器拆卸
垫圈或 O 形圈位于适当的表面，可实现完美的防风雨连接
| Part Number | Industry Type | MS Number | Shell Finish | Shell Size | Alternate Master Key/Keyway Position | Insert Arrangement | Contact Type | Alternate Keying Position |
|---|---|---|---|---|---|---|---|---|
| MS90555C44112SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 1 60 Degrees | 12 44-12 IPCEA, type G, round, four #2 conductors | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44113SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 1 60 Degrees | 13 44-13 CO-04 HDF, (4/1-4/8R) 1620 per MIL-DTL-3432 | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44150S | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 1 60 Degrees | 50 44-50 4 each #1 conductors | S Socket | |
| MS90555C44412SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 4 120 Degrees | 12 44-12 IPCEA, type G, round, four #2 conductors | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44413SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 4 120 Degrees | 13 44-13 CO-04 HDF, (4/1-4/8R) 1620 per MIL-DTL-3432 | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44450S | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 4 120 Degrees | 50 44-50 4 each #1 conductors | S Socket | |
| MS90555C44512SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 5 135 Degrees | 12 44-12 IPCEA, type G, round, four #2 conductors | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44513SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 5 135 Degrees | 13 44-13 CO-04 HDF, (4/1-4/8R) 1620 per MIL-DTL-3432 | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44550S | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 5 135 Degrees | 50 44-50 4 each #1 conductors | S Socket | |
| MS90555C44612SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 6 150 Degrees | 12 44-12 IPCEA, type G, round, four #2 conductors | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44613SZ | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 6 150 Degrees | 13 44-13 CO-04 HDF, (4/1-4/8R) 1620 per MIL-DTL-3432 | S Socket | Z 60 Degrees Insert Rotation |
| MS90555C44650S | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 44 100 amperes - AC | 6 150 Degrees | 50 44-50 4 each #1 conductors | S Socket | |
| MS90555C52412SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 52 200 amperes - AC | 4 120 Degrees | 12 52-12 IPCEA, type G, round, four #4/0 conductors | S Socket | W 300 Degrees Insert Rotation |
| MS90555C52413SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 52 200 amperes - AC | 4 120 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | S Socket | W 300 Degrees Insert Rotation |
| MS90555C52512SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 52 200 amperes - AC | 5 135 Degrees | 12 52-12 IPCEA, type G, round, four #4/0 conductors | S Socket | W 300 Degrees Insert Rotation |
| MS90555C52513SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 52 200 amperes - AC | 5 135 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | S Socket | W 300 Degrees Insert Rotation |
| MS90555C52612SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 52 200 amperes - AC | 6 150 Degrees | 12 52-12 IPCEA, type G, round, four #4/0 conductors | S Socket | W 300 Degrees Insert Rotation |
| MS90555C52613SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 52 200 amperes - AC | 6 150 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | S Socket | W 300 Degrees Insert Rotation |
| MS90555N44N03S | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 44 100 amperes - DC | N Normal 105 Degrees | 03 44-03 CO-02 HDF, (2/1) 1385 per MIL-DTL-3432 | S Socket | |
| MS90555N52N12SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 52 200 amperes - DC | N Normal 105 Degrees | 12 52-12 IPCEA, type G, round, four #4/0 conductors | S Socket | W 300 Degrees Insert Rotation |
| MS90555N52N13SW | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 52 200 amperes - DC | N Normal 105 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | S Socket | W 300 Degrees Insert Rotation |
| MS90556C52413PW | Military | MS90556 Military - Straight Plug | C Conductive for AC circuits | 52 200 amperes - AC | 4 120 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | P Pin | W 300 Degrees Insert Rotation |
| MS90556C52513PW | Military | MS90556 Military - Straight Plug | C Conductive for AC circuits | 52 200 amperes - AC | 5 135 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | P Pin | W 300 Degrees Insert Rotation |
| MS90556C52613PW | Military | MS90556 Military - Straight Plug | C Conductive for AC circuits | 52 200 amperes - AC | 6 150 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | P Pin | W 300 Degrees Insert Rotation |
| MS90556N52N13PW | Military | MS90556 Military - Straight Plug | N Non-conductive for DC circuits | 52 200 amperes - DC | N Normal 105 Degrees | 13 52-13 CO-04 HDE, (4/0000-4/4R) 2380 per MIL-DTL-3432 | P Pin | W 300 Degrees Insert Rotation |
