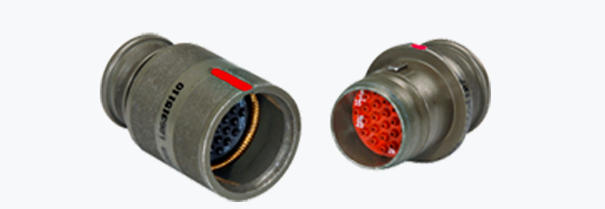

福川电子的2M804 连接器是市场上最坚固的推挽式微型圆形连接器。这些连接器设计用于美国军方部署的士兵穿戴战术装备，旨在执行。这些连接器防水、防尘且高度抗 EMI 干扰，在战场上就像在 C4I 和 IFE 系统上使用一样。凭借多达 85 个信号、面板安装选项和可自定义的分离力，2M804 在陆地、海洋和空中没有一席之地。
推挽式联轴器
出色的电磁干扰屏蔽
额定 38999 次浸入
快速断开
| Part Number | Series | Shell Style | Service Class | Shell Size Insert Arrangement | Contacts | Keying |
|---|---|---|---|---|---|---|
| 2M804-001-06C5-3AA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | A A (A 150, B 210) |
| 2M804-001-06C5-3AB | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | B B (A 75, B 210) |
| 2M804-001-06C5-3AC | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | C C (A 95, B 230) |
| 2M804-001-06C5-3AD | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | D D (A 140, B 275) |
| 2M804-001-06C5-3BA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | A A (A 150, B 210) |
| 2M804-001-06C5-3BB | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | B B (A 75, B 210) |
| 2M804-001-06C5-3BC | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | C C (A 95, B 230) |
| 2M804-001-06C5-3BD | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | D D (A 140, B 275) |
| 2M804-001-06C5-3PA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | A A (A 150, B 210) |
| 2M804-001-06C5-3PB | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | B B (A 75, B 210) |
| 2M804-001-06C5-3PC | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | C C (A 95, B 230) |
| 2M804-001-06C5-3PD | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | D D (A 140, B 275) |
| 2M804-001-06C5-3SA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | A A (A 150, B 210) |
| 2M804-001-06C5-3SB | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | B B (A 75, B 210) |
| 2M804-001-06C5-3SC | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | C C (A 95, B 230) |
| 2M804-001-06C5-3SD | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | D D (A 140, B 275) |
| 2M804-001-06M5-3AA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | A A: Pin-Less Contacts | A A (A 150, B 210) |
| 2M804-001-06M5-3PA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | A A (A 150, B 210) |
| 2M804-001-06M5-3PB | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | B B (A 75, B 210) |
| 2M804-001-06M5-3PC | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | C C (A 95, B 230) |
| 2M804-001-06M5-3PD | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | D D (A 140, B 275) |
| 2M804-001-06M5-3SA | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | A A (A 150, B 210) |
| 2M804-001-06M5-3SB | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | B B (A 75, B 210) |
| 2M804-001-06M5-3SC | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | C C (A 95, B 230) |
| 2M804-001-06M5-3SD | 2M804-001 2M804-001: Plug with Integral Backshell | -06 -06: Plug | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | D D (A 140, B 275) |
