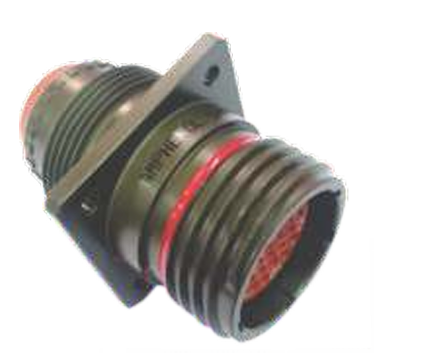

M28840 船用连接器
Amphenol 的 M28840 船用连接器经过设计和测试，可承受极端环境条件和应用
Amphenol M28840 圆形连接器的完整系列根据 MIL-DTL-28840 而设计。这些船载应用连接器经过精密加工，高度可靠，并具有出色的机械冲击性能。这些高密度连接器经过设计和测试，可承受极端环境条件和苛刻的应用。Amphenol 还提供全系列后壳以支持该连接器系列。
特性
根据 MIL-DTL-28840 规范精密加工
提供九种外壳尺寸：11、13、15、17、19、23、25、29 和 33
引脚数：7、12、21、31、42、64、92、121 和 155
电镀选项：镉和锌镍
支持连接器以及带附件的套件
插头和插座的六个键控选项（1、2、3、4、5、6）
触点尺寸为 AWG 20，电线容纳选项从 AWG 20 到 AWG 28
压接端接、后插入和前释放触点
完整的直式、90° 和 45° 后壳系列
可与任何合格的 M28840 连接器完全互配和互换
用于应变消除、EMI 和环境密封的后壳设计
购买配备后壳和附件的连接器的选项
适用于所有三种类型触点的相同应用工具
应用
美国海军舰艇、水面舰艇和潜艇
关键任务战斗和通信系统
机动战术掩体电子战场网络
移动应急通信站
恶劣环境可部署室外设施
| 制造商零件编号 | 制造商 |
| M28840/12AA1P1 | Amphenol PCD |
| M28840/12AA1S1 | Amphenol PCD |
| M28840/10AB1P1 | Amphenol PCD |
| M28840/10AB1S1 | Amphenol PCD |
| M28840/14AA1P1 | Amphenol PCD |
| M28840/12AB1P1 | Amphenol PCD |
| M28840/14AB1P1 | Amphenol PCD |
| M28840/16AB1P1 | Amphenol PCD |
| M28840/14AA1S1 | Amphenol PCD |
| M28840/16AB1S1 | Amphenol PCD |
| M28840/14AB1S1 | Amphenol PCD |
| M28840/16AA1P1 | Amphenol PCD |
| M28840/12AB1S1 | Amphenol PCD |
| M28840/16AA1S1 | Amphenol PCD |
| M28840/16AA1F1 | Amphenol PCD |
| M28840/16AE1P1 | Amphenol PCD |
| M28840/10AE1P1 | Amphenol PCD |
| M28840/18AB1P1 | Amphenol PCD |
| M28840/18AB1S1 | Amphenol PCD |
| M28840/11AF1P1 | Amphenol PCD |
| M28840/12AG1P1 | Amphenol PCD |
| M28840/10AG1P1 | Amphenol PCD |
| M28840/16AG1P1 | Amphenol PCD |
| M28840/12AG1S1 | Amphenol PCD |
| M28840/10AG1S1 | Amphenol PCD |
| M28840/14AG1S1 | Amphenol PCD |
| M28840/16AG1S1 | Amphenol PCD |
| M28840/16AJ1P1 | Amphenol PCD |
| M28840/17AB1S1 | Amphenol PCD |
| M28840/14AG1P1 | Amphenol PCD |
| M28840/12A2A1D1 | Amphenol PCD |
| M28840/11AA1P1 | Amphenol PCD |
| M28840/11AA1S1 | Amphenol PCD |
| M28840/11AA1F1 | Amphenol PCD |
| M28840/11AA1G1 | Amphenol PCD |
| M28840/11AA1D1 | Amphenol PCD |
| M28840/10AA1S1 | Amphenol PCD |
| M28840/10AA1P1 | Amphenol PCD |
| M28840/11AB1P1 | Amphenol PCD |
| M28840/10AA1F1 | Amphenol PCD |
| M28840/12A2A1P1 | Amphenol PCD |
| M28840/10AA1G1 | Amphenol PCD |
| M28840/10AA1D1 | Amphenol PCD |
| M28840/12AA1D1 | Amphenol PCD |
| M28840/12AA1F1 | Amphenol PCD |
| M28840/10AB1F1 | Amphenol PCD |
| M28840/11AB1D1 | Amphenol PCD |
| M28840/11AB1S1 | Amphenol PCD |
| M28840/12A2A1S1 | Amphenol PCD |
| M28840/12A2A1F1 | Amphenol PCD |
| M28840/11AB1F1 | Amphenol PCD |
| M28840/12AA1G1 | Amphenol PCD |
| M28840/10AB1D1 | Amphenol PCD |
| M28840/11AA1E1 | Amphenol PCD |
| M28840/12A2A1G1 | Amphenol PCD |
| M28840/10AB1G1 | Amphenol PCD |
| M28840/11AB1G1 | Amphenol PCD |
| M28840/12A2B1F1 | Amphenol PCD |
| M28840/11AC1D1 | Amphenol PCD |
| M28840/12S2A1D1 | Amphenol PCD |
| M28840/11SA1P1 | Amphenol PCD |
| M28840/11SA1S1 | Amphenol PCD |
| M28840/12A2B1D1 | Amphenol PCD |
| M28840/10AA1E1 | Amphenol PCD |
| M28840/12AC1P1 | Amphenol PCD |
| M28840/11AC1P1 | Amphenol PCD |
| M28840/11AC1F1 | Amphenol PCD |
| M28840/12A2B1G1 | Amphenol PCD |
| M28840/12A2A1E1 | Amphenol PCD |
| M28840/12A2B1S1 | Amphenol PCD |
| M28840/10AC1F1 | Amphenol PCD |
| M28840/11SA1F1 | Amphenol PCD |
| M28840/14AC1P1 | Amphenol PCD |
| M28840/11AB1E1 | Amphenol PCD |
| M28840/10AC1D1 | Amphenol PCD |
| M28840/12AC1S1 | Amphenol PCD |
| M28840/11SA1G1 | Amphenol PCD |
| M28840/10AC1P1 | Amphenol PCD |
| M28840/11SA1D1 | Amphenol PCD |
| M28840/14AA1D1 | Amphenol PCD |
| M28840/14AA1E1 | Amphenol PCD |
| M28840/12A2C1P1 | Amphenol PCD |
| M28840/12AB1F1 | Amphenol PCD |
| M28840/14AA1F1 | Amphenol PCD |
| M28840/14AB1D1 | Amphenol PCD |
| M28840/12AB1D1 | Amphenol PCD |
| M28840/10AB1E1 | Amphenol PCD |
| M28840/11AC1G1 | Amphenol PCD |
| M28840/12A2B1P1 | Amphenol PCD |
| M28840/14AA1G1 | Amphenol PCD |
| M28840/16AB1D1 | Amphenol PCD |
| M28840/12SA1P1 | Amphenol PCD |
| M28840/14AB1F1 | Amphenol PCD |
| M28840/16AA1D1 | Amphenol PCD |
| M28840/14AB1G1 | Amphenol PCD |
| M28840/12AB1G1 | Amphenol PCD |
| M28840/12AA1E1 | Amphenol PCD |
| M28840/14AC1S1 | Amphenol PCD |
| M28840/12A2C1S1 | Amphenol PCD |
| M28840/16AB1F1 | Amphenol PCD |
| M28840/16AB1G1 | Amphenol PCD |
| M28840/10SA1S1 | Amphenol PCD |
| M28840/12AC1D1 | Amphenol PCD |
| M28840/10SA1P1 | Amphenol PCD |
| M28840/11AC1S1 | Amphenol PCD |
| M28840/10AC1G1 | Amphenol PCD |
| M28840/11SB1P1 | Amphenol PCD |
| M28840/10AC1S1 | Amphenol PCD |
| M28840/16AA1G1 | Amphenol PCD |
| M28840/12AC1F1 | Amphenol PCD |
| M28840/14AC1D1 | Amphenol PCD |
| M28840/10SA1F1 | Amphenol PCD |
| M28840/10AD1P1 | Amphenol PCD |
| M28840/12S2A1P1 | Amphenol PCD |
| M28840/10SA1G1 | Amphenol PCD |
| M28840/14AC1F1 | Amphenol PCD |
| M28840/12AC1G1 | Amphenol PCD |
| M28840/10SA1D1 | Amphenol PCD |
| M28840/16AA1E1 | Amphenol PCD |
| M28840/12A2C1D1 | Amphenol PCD |
| M28840/12SA1D1 | Amphenol PCD |
| M28840/12SA1S1 | Amphenol PCD |
| M28840/14AC1G1 | Amphenol PCD |
| M28840/12SA1F1 | Amphenol PCD |
| M28840/14AB1E1 | Amphenol PCD |
| M28840/12AB1E1 | Amphenol PCD |
| M28840/11AD1P1 | Amphenol PCD |
| M28840/12A2C1F1 | Amphenol PCD |
| M28840/10SB1P1 | Amphenol PCD |
| M28840/16AC1P1 | Amphenol PCD |
| M28840/10SB1F1 | Amphenol PCD |
| M28840/12AD1P1 | Amphenol PCD |
| M28840/12A2C1G1 | Amphenol PCD |
| M28840/11SB1D1 | Amphenol PCD |
| M28840/11SB1S1 | Amphenol PCD |
| M28840/16AC1S1 | Amphenol PCD |
| M28840/11AC1E1 | Amphenol PCD |
| M28840/12S2A1S1 | Amphenol PCD |
| M28840/12S2A1F1 | Amphenol PCD |
| M28840/11SB1F1 | Amphenol PCD |
| M28840/12SA1G1 | Amphenol PCD |
| M28840/12A2B1E1 | Amphenol PCD |
| M28840/10AD1G1 | Amphenol PCD |
| M28840/11AD1S1 | Amphenol PCD |
| M28840/10AC1E1 | Amphenol PCD |
| M28840/16AC1D1 | Amphenol PCD |
| M28840/10AD1S1 | Amphenol PCD |
| M28840/12A2D1P1 | Amphenol PCD |
| M28840/10SB1D1 | Amphenol PCD |
| M28840/11AD1D1 | Amphenol PCD |
| M28840/10SB1S1 | Amphenol PCD |
| M28840/12AD1S1 | Amphenol PCD |
| M28840/11SA1E1 | Amphenol PCD |
| M28840/16AC1F1 | Amphenol PCD |
| M28840/14AD1P1 | Amphenol PCD |
| M28840/12AD1D1 | Amphenol PCD |
| M28840/11AE1P1 | Amphenol PCD |
| M28840/16AB1E1 | Amphenol PCD |
| M28840/16AC1G1 | Amphenol PCD |
| M28840/11AD1F1 | Amphenol PCD |
| M28840/10AD1D1 | Amphenol PCD |
| M28840/12S2A1G1 | Amphenol PCD |
| M28840/10SB1G1 | Amphenol PCD |
| M28840/11SB1G1 | Amphenol PCD |
| M28840/10AD1F1 | Amphenol PCD |
| M28840/14SA1P1 | Amphenol PCD |
| M28840/16AD1P1 | Amphenol PCD |
| M28840/12SB1P1 | Amphenol PCD |
| M28840/12A2D1S1 | Amphenol PCD |
| M28840/12AD1F1 | Amphenol PCD |
| M28840/12A2D1D1 | Amphenol PCD |
| M28840/10SA1E1 | Amphenol PCD |
| M28840/12AE1P1 | Amphenol PCD |
| M28840/14SB1P1 | Amphenol PCD |
| M28840/11SC1P1 | Amphenol PCD |
| M28840/14AD1S1 | Amphenol PCD |
| M28840/11AD1G1 | Amphenol PCD |
| M28840/14AD1D1 | Amphenol PCD |
| M28840/14SA1S1 | Amphenol PCD |
| M28840/17AA1S1 | Amphenol PCD |
| M28840/17AA1P1 | Amphenol PCD |
| M28840/18AA1S1 | Amphenol PCD |
| M28840/17AA1D1 | Amphenol PCD |
| M28840/10AF1P1 | Amphenol PCD |
| M28840/18AA1P1 | Amphenol PCD |
| M28840/19AA1S1 | Amphenol PCD |
| M28840/19AA1P1 | Amphenol PCD |
| M28840/10SC1P1 | Amphenol PCD |
| M28840/14SB1S1 | Amphenol PCD |
| M28840/12A2D1F1 | Amphenol PCD |
| M28840/18AA1D1 | Amphenol PCD |
| M28840/17AA1F1 | Amphenol PCD |
| M28840/14AD1F1 | Amphenol PCD |
| M28840/19AA1D1 | Amphenol PCD |
| M28840/14SA1D1 | Amphenol PCD |
| M28840/18AA1F1 | Amphenol PCD |
| M28840/19AA1F1 | Amphenol PCD |
| M28840/12A2E1P1 | Amphenol PCD |
| M28840/12SB1F1 | Amphenol PCD |
| M28840/12AD1G1 | Amphenol PCD |
| M28840/17AA1G1 | Amphenol PCD |
| M28840/14SA1F1 | Amphenol PCD |
| M28840/19AB1P1 | Amphenol PCD |
| M28840/14SB1D1 | Amphenol PCD |
| M28840/12SB1D1 | Amphenol PCD |
| M28840/14AE1P1 | Amphenol PCD |
| M28840/18AA1G1 | Amphenol PCD |
| M28840/16AD1S1 | Amphenol PCD |
| M28840/19AA1G1 | Amphenol PCD |
| M28840/19AB1D1 | Amphenol PCD |
| M28840/18AB1D1 | Amphenol PCD |
| M28840/19AB1S1 | Amphenol PCD |
| M28840/14SA1G1 | Amphenol PCD |
| M28840/14SB1F1 | Amphenol PCD |
| M28840/19AB1F1 | Amphenol PCD |
| M28840/18AB1F1 | Amphenol PCD |
| M28840/16SA1D1 | Amphenol PCD |
| M28840/14SB1G1 | Amphenol PCD |
| M28840/12SB1G1 | Amphenol PCD |
| M28840/12SA1E1 | Amphenol PCD |
| M28840/12SB1S1 | Amphenol PCD |
| M28840/11AE1S1 | Amphenol PCD |
| M28840/11AE1G1 | Amphenol PCD |
| M28840/19AB1G1 | Amphenol PCD |
| M28840/16AD1F1 | Amphenol PCD |
| M28840/18AB1G1 | Amphenol PCD |
| M28840/11SC1S1 | Amphenol PCD |
| M28840/12AC1E1 | Amphenol PCD |
| M28840/10SC1S1 | Amphenol PCD |
| M28840/14AD1G1 | Amphenol PCD |
| M28840/12A2D1G1 | Amphenol PCD |
| M28840/12S2B1F1 | Amphenol PCD |
| M28840/11SC1D1 | Amphenol PCD |
| M28840/16AE1F1 | Amphenol PCD |
| M28840/16AD1D1 | Amphenol PCD |
| M28840/11AE1D1 | Amphenol PCD |
| M28840/12AE1G1 | Amphenol PCD |
| M28840/12S2B1D1 | Amphenol PCD |
| M28840/14AC1E1 | Amphenol PCD |
| M28840/10AE1G1 | Amphenol PCD |
| M28840/12SC1P1 | Amphenol PCD |
| M28840/10AE1S1 | Amphenol PCD |
| M28840/16AD1G1 | Amphenol PCD |
| M28840/11SC1F1 | Amphenol PCD |
| M28840/10AE1D1 | Amphenol PCD |
| M28840/12S2B1G1 | Amphenol PCD |
| M28840/12AE1S1 | Amphenol PCD |
| M28840/12A2E1S1 | Amphenol PCD |
| M28840/12S2A1E1 | Amphenol PCD |
| M28840/12S2B1S1 | Amphenol PCD |
