HiPer-D® M24308 组合电源和信号连接器，适用于关键任务应用
MIL-DTL-24308 可互配先进性能压接和 PC 尾部环境连接器，带 #20 和 #8 触点，适用于信号、电源和射频应用
组合 D-sub M24308 连接器非常适合用于模拟信号、电源和射频应用。采用组合布局的格伦奈尔 HiPer-D® 连接器既具有 #8 号和 #20 号混合端子排列的灵活性和便利性，又具有这种坚固耐用的环保型 M24308 的高性能属性。有 20 多种刀片排列可供选择，包括原生尺寸 #8 以及混合尺寸 #8 和尺寸 #20。压接端子和印刷电路板端接有标准外壳和薄型外壳。设计用于功率控制器、雷达系统、视频应用和其他军事和航空航天电子设备。所有 HiPer-D® 组合配置都经过精心设计，可立即应用。

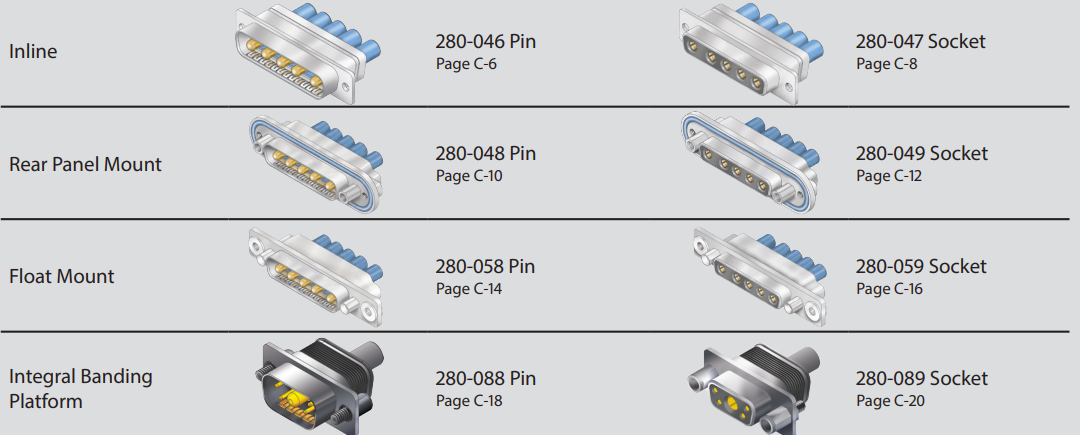

 | 280-046 PCombo cable pin connectors with standard mounting flange, crimp termination |
 | 280-047 SCombo cable socket connectors with standard mounting flange, crimp termination |
 | 280-048 PPanel mount pin combo connectors with O-ring mounting flange, crimp termination |
 | 280-049 SPanel mount socket combo connectors with O-ring mounting flange, crimp termination |
 | 280-058 PFloat mount combo pin connectors for blind mating, crimp termination |
 | 280-059 SFloat mount combo socket connectors for blind mating, crimp termination |
 | 280-088 PCombo cable pin connectors with standard mounting flange, integral banding platform and crimp termination |
 | 280-089 SCombo cable socket connectors with standard mounting flange, integral banding platform and crimp termination |
 | 280-050 PStraight PC tail combo pin connectors with O-ring flange for rear panel mounting |
 | 280-051 SStraight PC tail combo socket connectors with O-ring flange for rear panel mounting |
 | 280-052 PRight angle PC tail combo pin connectors with O-ring flange for rear panel mounting |
 | 280-053 SRight angle PC tail combo socket connectors with O-ring flange for rear panel mounting |
 | 280-054 PStraight PC tail pin connectors with low profile mounting flange |
 | 280-055 SStraight PC tail socket connectors with low profile mounting flange |
 | 280-056 PRight angle PC tail pin connectors with low profile mounting flange |
 | 280-057 SRight angle PC tail socket connectors with low profile mounting flange |
