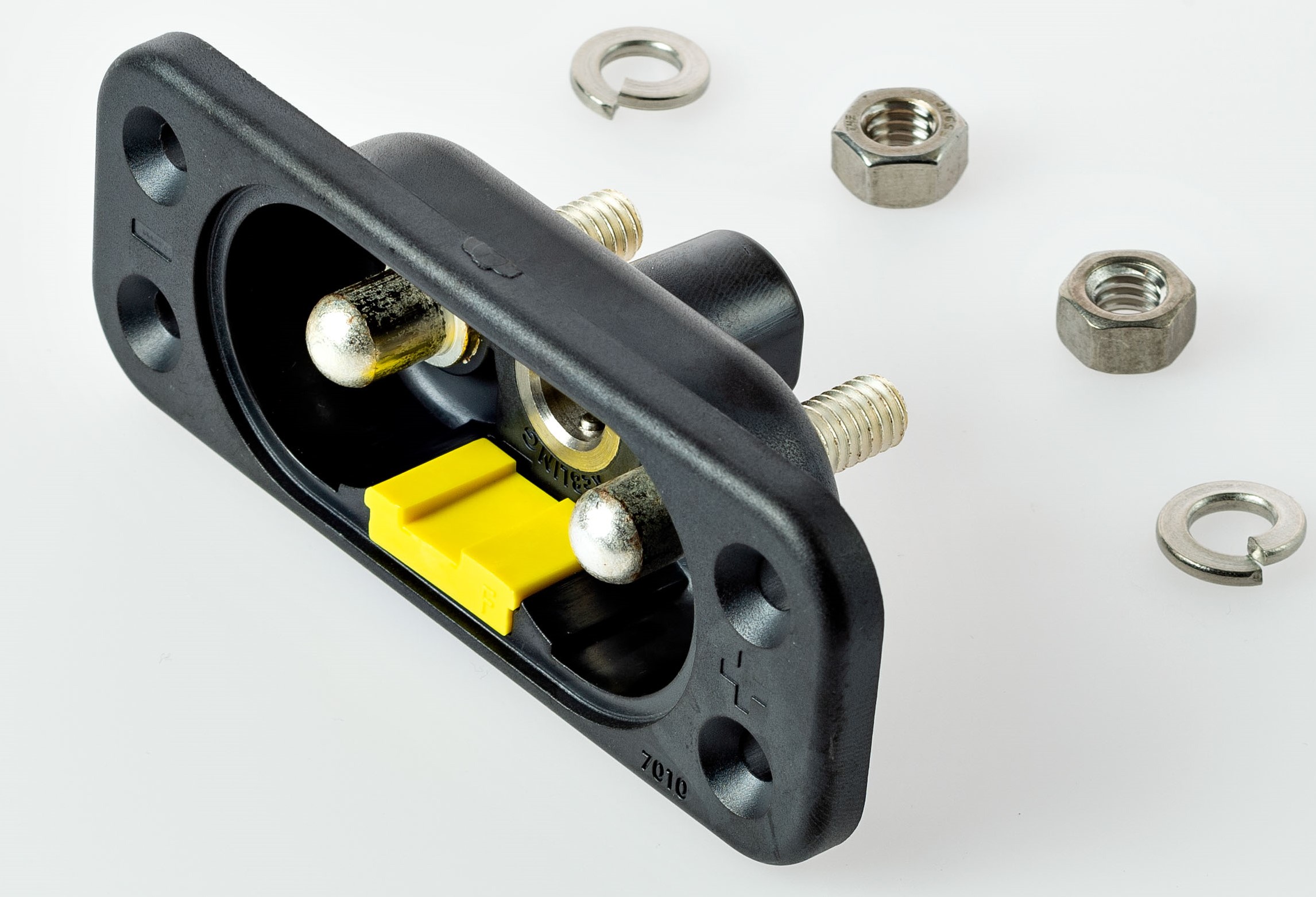

为了兑现我们以经济实惠的价格提供新功能的承诺，我们现在提供具有六种颜色编码机械键控组合的商业级插座。这些键控组合可用于区分各种电压或电流电平，以防止系统组装、操作或维护人员出错。这些两极、隔板安装、可键控插座设计用于与我们的商业级电缆安装插头连接器配接，这些连接器具有相同的键控选项。如果没有插入钥匙，我们的可键插座可以与我们任何传统的非键控电缆安装插头连接器配接。
ELECTRICAL: Rated Current500 ampsPeak Current3,000 ampsRated Voltage1,500 voltsWithstand Voltage3,000 voltsMax Contact Resistance60 μΩ | MECHANICAL: Max Cable Size4/0 (110 mm2)Mechanical Shock50 Gs (3 axes)Vibration10 Gs (3 axes) | ENVIRONMENTAL: FlammabilityUL94V-0SealingIP68 Operating Temp-40℃ to +140℃ |
Product Information | ||||||
| Receptacle Kit |  | 7010-3 Black | ||||
| | ||||||
| Backshell |  | 644A1626 1.49" inside depth |  | 644A1627 2.49" inside depth | ||
| Receptacle Key |  | 684A1763-A Receptacle Key (Orange) |  | 684A1763-B Receptacle Key (Blue) |  | 684A1763-C Receptacle Key (Green) |
 | 684A1763-D Receptacle Key (Pink) |  | 684A1763-E Receptacle Key (White) |  | 684A1763-F Receptacle Key (Yellow) | |
| Gasket |  | 685A1766 Gasket with Dust-Cover, Black |  | 100A1784 Foam Gasket, Black | ||
| Mates with these Plugs |  | 7020-T Cable Mounted Plug Kit (Black) |  | 7020-O Cable Mounted Plug Kit (Orange) | ||
