ELECTRICAL: Rated Current400 ampsPeak Current2,200 ampsRated Voltage1,000 voltsWithstand Voltage4,000 voltsMax Contact Resistance70 μΩ | MECHANICAL: Max Cable Size4/0 (110 mm2)Mechanical Shock50 Gs (3 axes)Vibration10 Gs (3 axes) | ENVIRONMENTAL: FlammabilityUL94V-0SealingIP68 Operating Temp-40℃ to +90℃ |
Product Information | ||||||

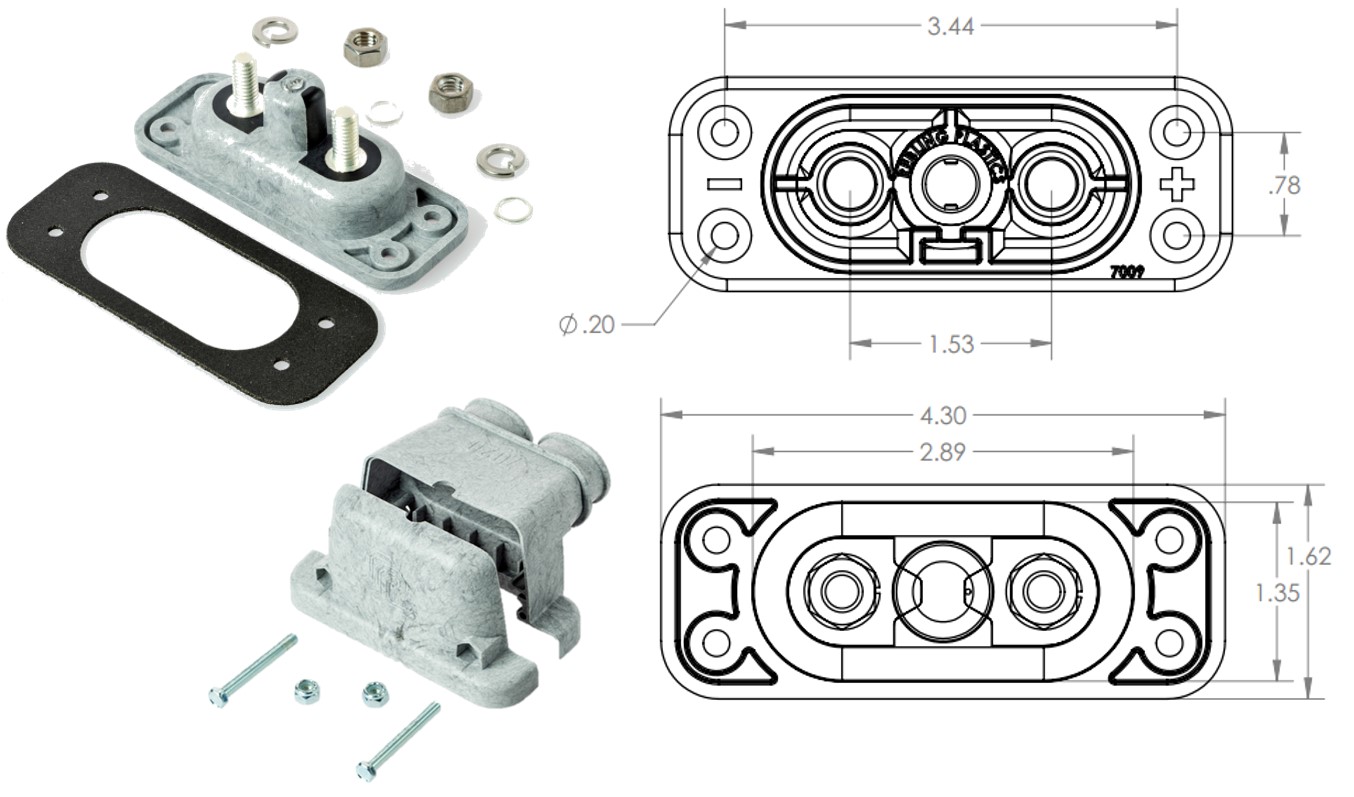

| Receptacle |  | 7009-51 EMI Panel-Mounted Receptacle | ||||

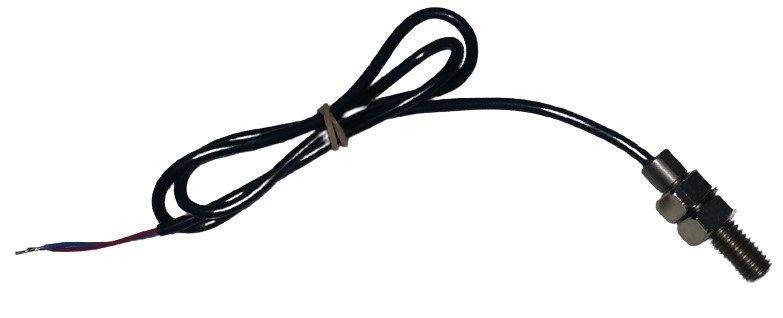

HVIL Switch & |  | 643A1757 HVIL Switch & Magnet Kit |  | 643A1647 HVIL Magnet |  | 643A1650 HVIL Switch |
| Gasket |  | 643A1625 Conductive EMI Gasket | ||||
| Plug Kit |  | 7020-E EMI Cable Mounted Plug Kit | ||||
