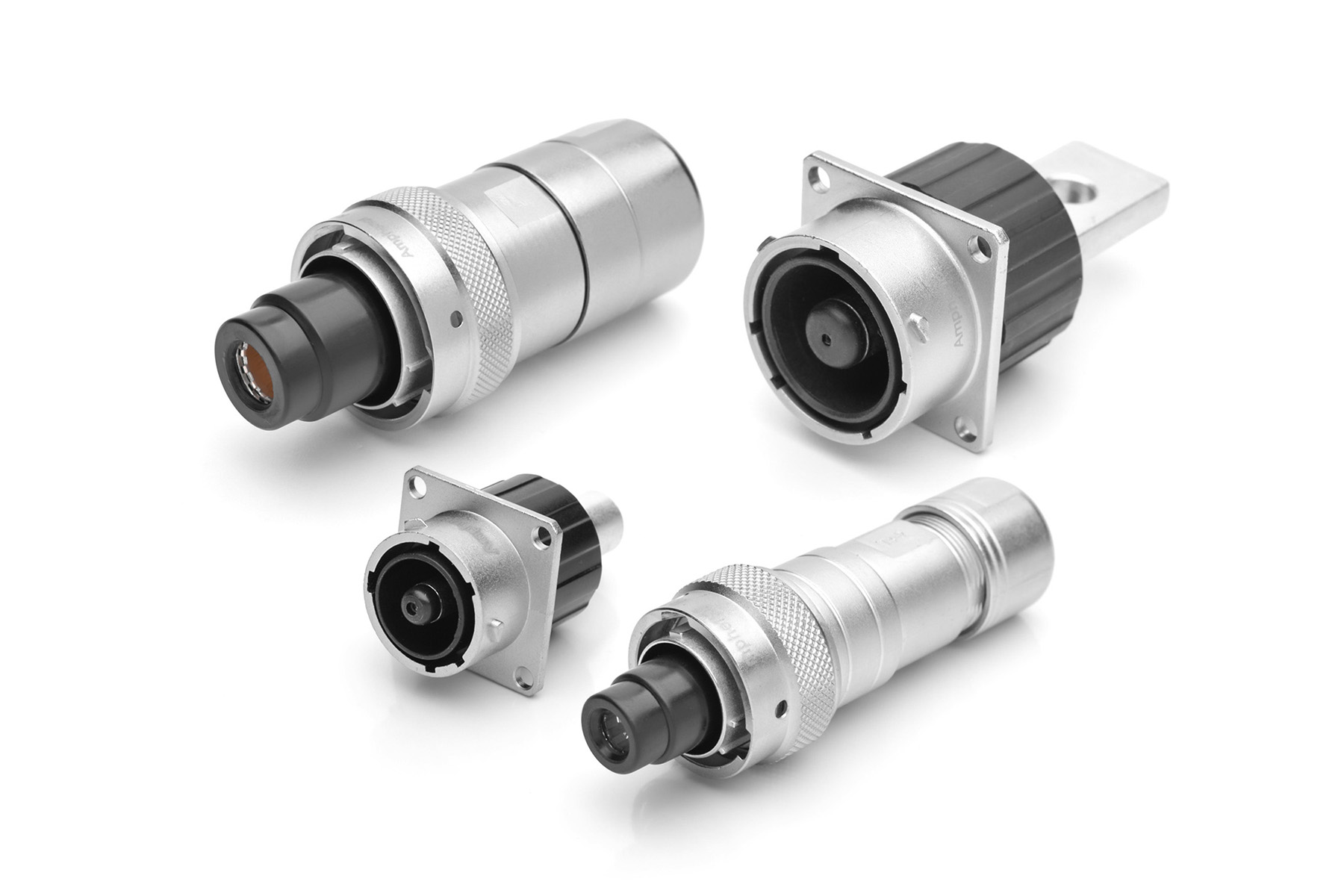

ecomate® RM - 高电流系列是互连架构要求较高的连接器的首选。高电流连接器采用单极、高功率布置，采用 RADSOK® 技术，范围为 86A-300A。 RADSOK® 产品由安费诺独家提供。我们的 Ecomate® RM 产品旨在成为其他行业标准产品的竞争性替代品，同时保持市场上最佳的机械和环境质量。我们的 Ecomate® RM 产品具有 UL94-V0 可燃性等级、RoHS 合规性、坚固的镀镍铝外壳和仅需要 1/3 圈的卡口锁定系统。听到锁定“咔嗒”声表明安装正确。我们所有的 Ecomate® RM 工业级圆形连接器均经过精心设计，可与其他行业标准连接器互换。
ecomate® RM - 采用 RADSOK® 技术的高安培数
单极高功率布置
3.6mm-10mm 触点尺寸
工作温度：-40°C 至 +125°C
符合 RoHS 规定
4 种外壳尺寸
工作电压：630V
25°C 时的额定电流：86A-300A
可燃性等级：UL94-V0
高可靠性
低接触啮合/分离力
低接触电阻
高插拔周期耐久性
| Part Number | Description | AMPS | Connectors |
| Solutions for 3.6 mm Radsok | |||
| MP6ARS8S | Pin Contact with RADSOK® Technology. Crimp Barrel, Size 3.6mm, Wire Range 10-16mm², 8AWG | 86 | RTHP0121PN-16C RTHP6203PNH-16S2 RTHP0203SNH-16C RTHP0203PNH-16C |
| MS6ARS8S | Socket Contact with RADSOK® Technology. Crimp Barrel, Size 3.6mm, Wire Range 10-16mm², 8AWG | 86 | RTHP6121SNH-16S2 RTHP6121SNH16-BS2 RTHP6203SNH-16S2 |
| HPAHS | Pin Contact, Machined, Radsok® (receptacle only), Silver | 86 | RTHP0121PN-H1 |
| Solutions for 6 mm Radsok | |||
| HS25BCS | Socket Contact, Machined, Radsok®, Silver | 120 | RTHP6141SNH25-EC RTHP6141SNH25-PS2 RTHP6141SNH-25S2 RTHP6141SNH25-BS2 |
| HP25BCS | Pin Contact, Machined, Radsok®, Silver | 120 | RTHP0141PN-25C |
| HPBHS | Pin Contact, Machined, Radsok® (receptacle only), Silver | 120 | RTHP0141PN-H1 |
| HPBSS | Pin Contact, Machined, Radsok® (receptacle only), Silver | 120 | RTHP0141PN-M1 |
| Solutions for 8 mm Radsok | |||
| HS25CCS | Socket Contact, Machined, Radsok®, Silver | 120 | RTHP6161SNH25-PS3 |
| HS35CCS | Pin Contact, Machined, Radsok®, Silver | 130 | RTHP6161SNH35-PS2 RTHP6161SNH-35S2 |
| HP35CCS | Pin Contact, Machined, Radsok®, Silver | 130 | RTHP0161PN-35C |
| HS50CCS | Pin Contact, Machined, Radsok®, Silver | 180 | RTHP6161SNH50-PS2 |
| HP50CCS | Pin Contact, Machined, Radsok®, Silver | 180 | RTHP0161PN-50C |
| HPCHS | Pin Contact, Machined, Radsok® (receptacle only), Silver | 180 | RTHP0161PN-H1 |
| HPCSS | Pin Contact, Machined, Radsok® (receptacle only), Silver | 180 | RTHP0161PN-M1 |
| Solutions for 10 mm Radsok | |||
| HS25DCS | Pin Contact, Machined, Radsok®, Silver | 120 | RTHP6201SNH25-PS5 |
| HS35DCS | Socket Contact, Machined, Radsok®, Silver | 130 | RTHP6201SNH35-PS2 |
| HS50DCS | Socket Contact, Machined, Radsok®, Silver | 180 | RTHP6201SNH50-PS2 |
| HP50DCS | Pin Contact, Machined, Radsok®, Silver | 180 | RTHP0201PN-50C |
| HS70DCS | Socket Contact, Machined, Radsok®, Silver | 250 | RTHP6201SNH70-PS1 RTHP6201SNH70-PS2 |
| HP70DCS | Pin Contact, Machined, Radsok®, Silver | 250 | RTHP0201PN-70C |
| HS95DCS | Pin Contact, Machined, Radsok®, Silver | 300 | RTHP6201SNH95-PS2 |
| HP95DCS | Pin Contact, Machined, Radsok®, Silver | 300 | RTHP0201PN-95C |
| HPDHS | Pin Contact, Machined, Radsok® (receptacle only), Silver | 300 | RTHP0201PN-H1 |
| HPDSS | Pin Contact, Machined, Radsok®, Silver | 300 | RTHP0201PN-M1 |

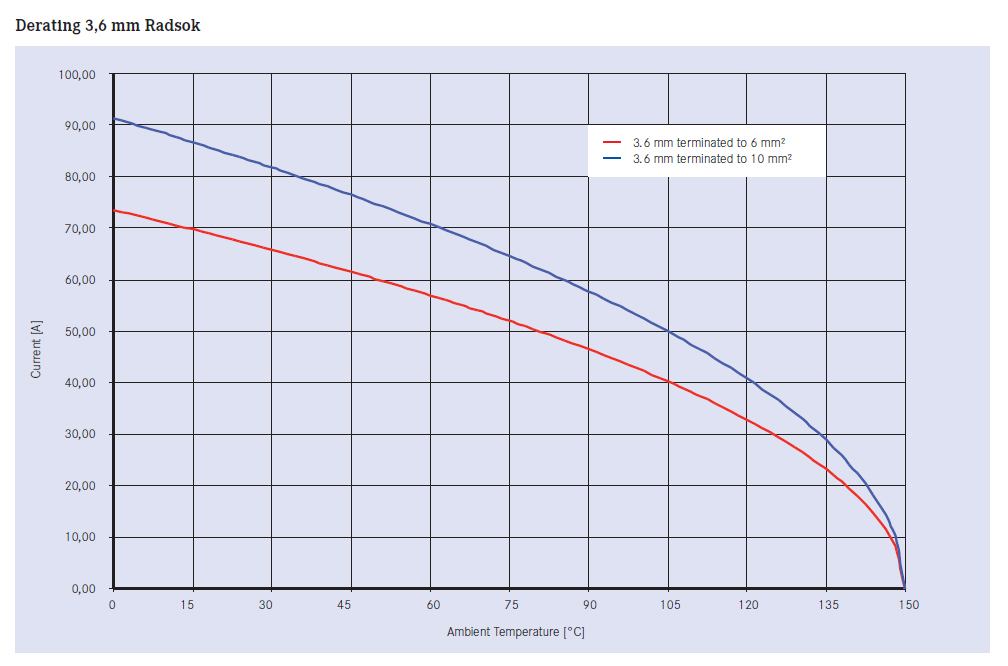

Derating Curve Charts
