| 主称代码 | EN2266-008 |
| 执行标准 | EN2267-009 |
| 芯线规格 | EN2267-009A |
| 导体材料 | AWG26,24:镀镍高强度铜合金;其他:镀镍铜 |
| 绝缘材料 | FEP/聚酰亚胺/FEP,PTFE |
| 护套材料 | 聚酰亚胺,激光打标 |
| 额定电压 | 600伏 |
| 温度范围 | -55至+200℃ |
| 线规范围 | 26至12 |
| 频率范围 | 达0.002MHz |
| 耐飞机流体 | 非常好 |
| 耐电弧电痕 | 是 |
| 阻燃等级 | FAR/JAR part 25 |

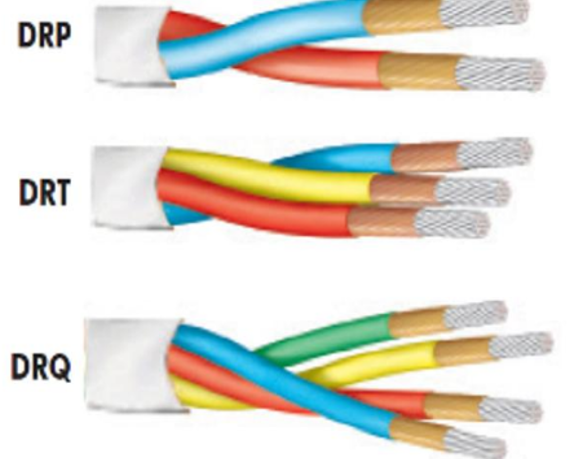

| 订货代码 | 线规 | 芯线 | 直流电阻 | 电缆外径mm | 电缆重量kg/km | ||
| Ω/km | Nom. | Max. | Nom. | Max. | |||
| EN2266-008B001P | 26 | 2 | 165 | 1.76 | 1.86 | 4.81 | 5.01 |
| EN2266-008B002P | 24 | 2 | 117 | 2.02 | 2.1 | 6.34 | 6.54 |
| EN2266-008B004P | 22 | 2 | 61.7 | 2.3 | 2.39 | 9.26 | 9.47 |
| EN2266-008B006P | 20 | 2 | 34.1 | 2.8 | 2.91 | 14.92 | 15.28 |
| EN2266-008B010P | 18 | 2 | 21.7 | 3.28 | 3.44 | 22.26 | 22.9 |
| EN2266-008B012P | 16 | 2 | 14.9 | 3.85 | 4.02 | 30.48 | 31.78 |
| EN2266-008B020P | 14 | 2 | 11.2 | 4.53 | 4.67 | 41.59 | 42.61 |
| EN2266-008B030P | 12 | 2 | 6.99 | 5.34 | 5.5 | 63.88 | 65.82 |
| EN2266-008C001P | 26 | 3 | 165 | 1.87 | 1.99 | 6.94 | 7.28 |
| EN2266-008C002P | 24 | 3 | 117 | 2.16 | 2.24 | 9.21 | 9.5 |
| EN2266-008C004P | 22 | 3 | 61.7 | 2.46 | 2.55 | 13.56 | 13.91 |
| EN2266-008C006P | 20 | 3 | 34.1 | 3 | 3.12 | 21.96 | 22.55 |
| EN2266-008C010P | 18 | 3 | 21.7 | 3.52 | 3.68 | 32.91 | 33.91 |
| EN2266-008C012P | 16 | 3 | 14.9 | 4.13 | 4.3 | 45.16 | 47.15 |
| EN2266-008C020P | 14 | 3 | 11.2 | 4.86 | 5.01 | 61.72 | 63.34 |
| EN2266-008C030P | 12 | 3 | 6.99 | 5.73 | 5.98 | 95.05 | 99.57 |
| EN2266-008D001P | 26 | 4 | 165 | 2.08 | 2.22 | 9.09 | 9.56 |
| EN2266-008D002P | 24 | 4 | 117 | 2.39 | 2.49 | 12.08 | 12.48 |
| EN2266-008D004P | 22 | 4 | 61.7 | 2.73 | 2.87 | 17.84 | 18.34 |
| EN2266-008D006P | 20 | 4 | 34.1 | 3.34 | 3.5 | 29 | 29.82 |
| EN2266-008D010P | 18 | 4 | 21.7 | 3.92 | 4.15 | 43.56 | 44.92 |
| EN2266-008D012P | 16 | 4 | 14.9 | 4.6 | 4.8 | 59.84 | 62.52 |
| EN2266-008D020P | 14 | 4 | 11.2 | 5.42 | 5.48 | 81.85 | 84.06 |
| EN2266-008D030P | 12 | 4 | 6.99 | 6.4 | 6.61 | 126.21 | 129.96 |
