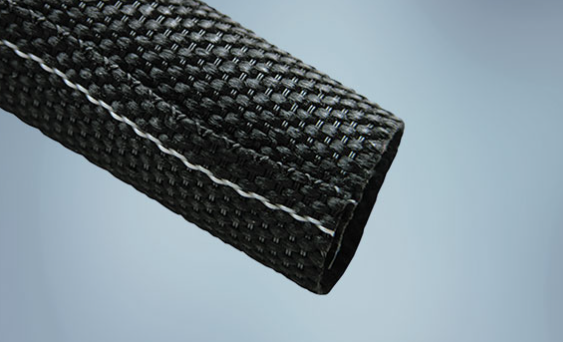

ROUNDIT® 2000FR 是一种环绕式套管，由火焰制成 阻燃聚酯单丝和复丝，设计用于电线和电缆束的机械保护和维护。其结构具有 100% 的覆盖率，具有良好的耐磨性。
ROUNDIT 2000FR 的自缠绕功能可快速轻松地实现 安装和拆卸产品以进行组装和维护。
ROUNDIT 2000FR 无需任何作即可应用和移除 连接器或配件，并在以下领域提供创新解决方案 突破是必要的。
ROUNDIT 2000FR在船舶、铁路和电子行业有许多应用。
• 非常适合捆绑而不断开组件
• 适应分支
• 多丝结构对电缆柔软
Commercial Part Number | Max Wire Harness Size | Recommended Application Range mm (in) Min Ø Max Ø | Max Weight | Standard Packaging |
|---|---|---|---|---|
ROUNDIT 2000 FR 5 | 5 (3/16") | 1 (1/32") 5 (3/16") | 9 (0.006035) | 150 (492') |
ROUNDIT 2000 FR 8 | 8 (5/16") | 5 (3/16") 8 (5/16") | 12 (0.008047) | 100 (328') |
ROUNDIT 2000 FR 13 | 13 (1/2") | 8 (5/16") 13 (1/2") | 18 (0.01207) | 50 (164') |
ROUNDIT 2000 FR 19 | 19 (3/4") | 13 (1/2") 19 (3/4") | 25 (0.016764) | 25 (82') |
ROUNDIT 2000 FR 25 | 25 (1") | 19 (3/4") 25 (1") | 36 (0.02414) | 25 (82') |
ROUNDIT 2000 FR 29 | 29 (1-1/8") | 25 (1") 29 (1-1/8") | 37 (0.024811) | 25 (82') |
ROUNDIT 2000 FR 32 | 32 (1-1/4") | 29 (1-1/8") 32 (1-1/4") | 43 (0.028834) | 25 (82') |
ROUNDIT 2000 FR 38 | 38 (1-1/2") | 32 (1-1/4") 38 (1-1/2") | 54 (0.03621) | 25 (82') |
ROUNDIT 2000 FR 50** | 50 (2") | 38 (1-1/2") 50 (2") | 75 (0.050292) | 25 (82’) |
ROUNDIT 2000 FR 80** | 80 (3-1/8") | 50 (2") 80 (3-1/8") | 145 (0.09700) | 25 (82’) |
Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).
** Size 50 mm is made of two sizes 25 sewn together. Size 80 mm is made of 2 sizes 38 mm sewn together
