航空电池组件

自1962年以来，Rebling Plastics已经为航空和航空航天工业生产出优质的电池连接器和附件。 今天，该公司为各种商业和军事应用提供广泛的电池组件产品线。 Rebling的产品经过现场验证，符合所有适用的军事标准和规格，可靠的性能。 标准型号通常可以从库存中立即发货。 在特殊订单上，Rebling也可以根据用户规格进行构建。

Series	Description / Mil-Specification	Additional Info

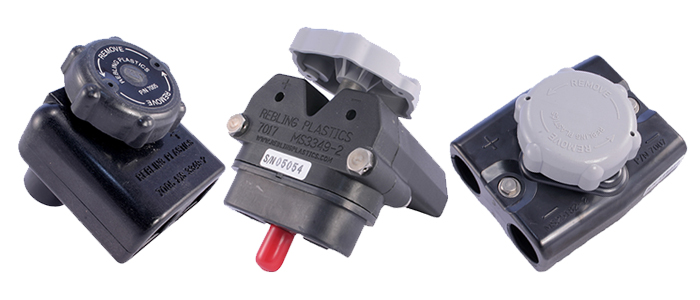

Battery Quick Disconnects
7007	Four-Wire Design, Mates with all MS3509 (7002 series) receptacles  MS25182-2
7013	Two-Wire Design, Self-aligning sockets, Mates with all Rebling 7002 series receptacles
7016	Two-Wire Design, Short Body Length, For Lead-Acid or Nickel-Cadmium Batteries, Mates with all MS3509 (7002 series) receptacles
7017	Two-Wire Design, For Lead-Acid or Nickel-Cadmium Batteries, Mates with all MS3509 (7002 series) receptacles  MS3349-2
8003	Two-Wire Design, For Lead-Acid, Mates with all Receptacle Adapters per Figure 2 of MIL-B-83769, and Rebling Part No. 8002  MS3349-3
Battery Receptacles
7002 Style 1	Steel Shaft & Fasteners, Color-coded for Lead-Acid or Nickel-Cadmium Batteries, Mates with all MS25182-2 and MS3349-2 (7000 series Quick Disconnects)  MS3509-28
7002 Style 2	Color-coded for Lead-Acid or Nickel-Cadmium Batteries, Mates with MS25182-2 and MS3349-2 (7000 series Quick Disconnects)  MS3509-29
7002 Terminal Adapters Data Sheet	Terminal Adapters
7002-37 Drawing	Safety Receptacle (No contact pins), Mates with all 7000 series Quick Disconnects including MS25182-2 and MS3349-2
8002	For Lead-Acid Batteries, Mates with all MS3349-3 (Rebling 8003)
Vent Filler Caps
700240 & 700250	Ethylene Propylene 0-Ring & Sleeve, For use on Nickel-Cadmium battery, P/N 700240 conforms to M81757/2-1, P/N 700250 conforms to MIL-B-81757/10; MS3510-1 and MS75046-1  M81757/2, M81757/10, MS3510-1, MS75046-1
700247	Reduced electrolyte leakage, Automatic venting of battery gases at 2-10 psi, Meets proposed standard MS3510-B, One piece molded polyamide construction with baffle sonically welded to body  MS3510-B
V, VA, 2-X	V VA 2-1 thru V VA 2-8 on QPL for MIL-PRF-81757/2-1 thru 2-8, Automatic venting of battery gases at 2-10 psi  M81757/2
Accessories
700220 & 700260	Dust Covers
