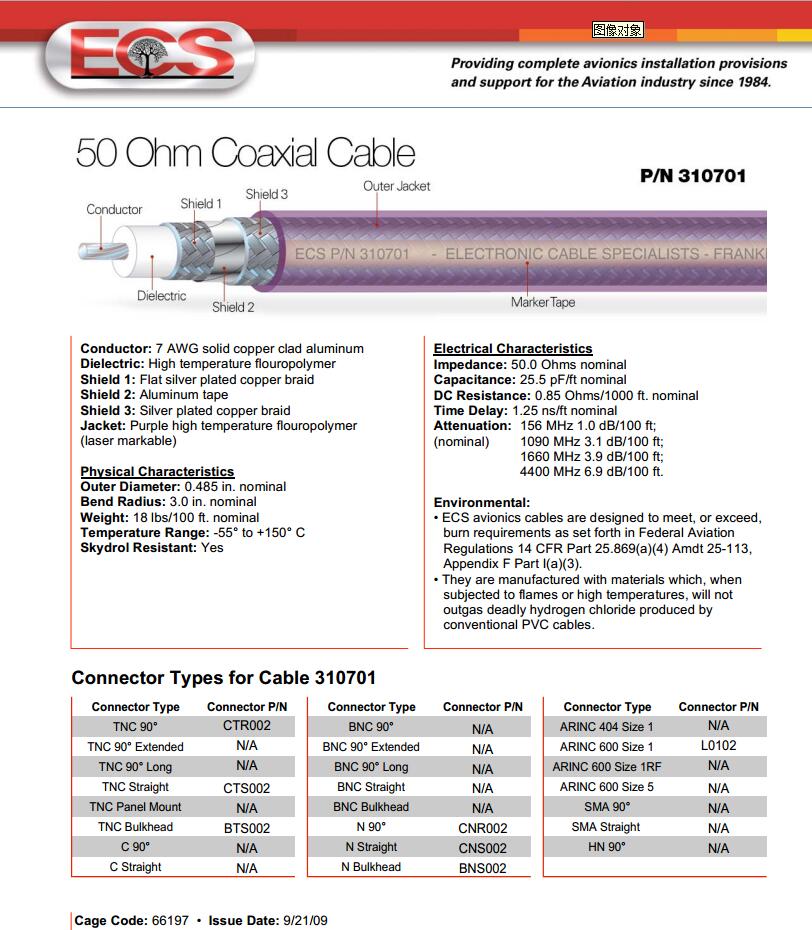

ECS310701

ECS-P/N 310701

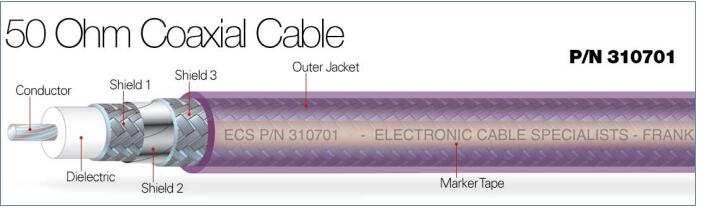

50ohm coaxial cables

Conductor: 7 AWG solid copper clad aluminum
Dielectric: High temperature flouropolymer
Shield 1: Flat silver plated copper braid
Shield 2: Aluminum tape
Shield 3: Silver plated copper braid
Jacket: Purple high temperature flouropolymer
(laser markable)
Physical Characteristics Outer Diameter: 0.485 in. nominal
Bend Radius: 3.0 in. nominal
Weight: 18 lbs/100 ft. nominal
Temperature Range: -55° to +150° C
Skydrol Resistant: Yes

Electrical Characteristics Impedance: 50.0 Ohms nominal
Capacitance: 25.5 pF/ft nominal
DC Resistance: 0.85 Ohms/1000 ft. nominal
Time Delay: 1.25 ns/ft nominal
Attenuation: 156 MHz 1.0 dB/100 ft;
(nominal)    1090 MHz 3.1 dB/100 ft;
         1660 MHz 3.9 dB/100 ft;
         4400 MHz 6.9 dB/100 ft.
Environmental:
• ECS avionics cables are designed to meet, or exceed,
 burn requirements as set forth in Federal Aviation
 Regulations 14 CFR Part 25.869(a)(4) Amdt 25-113,
 Appendix F Part I(a)(3).  • They are manufactured with materials which, when
 subjected to flames or high temperatures, will not
 outgas deadly hydrogen chloride produced by
 conventional PVC cables.

Connector Types for Cable 310701
 Connector TypeConnector P/NConnector TypeConnector P/NConnector TypeConnector P/N
