用途：高温机身和航空电子设备开放式安全带的应用

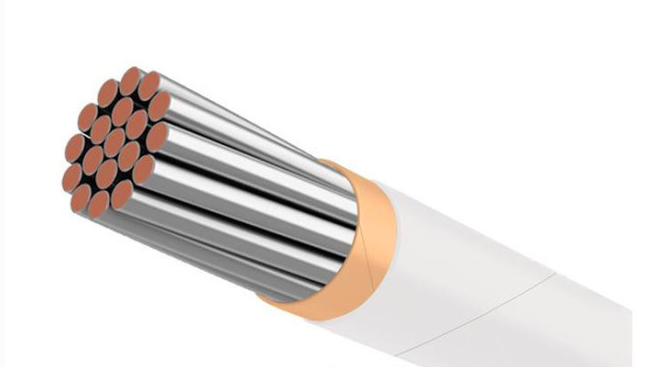

产品描述：绞合镀银铜导体交联改性的ETFE绝缘（双层壁），颜色编码符合MIL-DTL-681

AWG大小2，并有较大的深绿色，芳香polamide编织与5D的颜色代码代号

温度等级：200℃

额定电压：600伏

MIL-W-22759/43 (M22759/43) | SAE AS22759/43

finished Wire

Mil-Spec #           AWG   Stranding   Min O.D. (in)   MaxO.D. (in)    Nom.Lbs/Mft

M22759/43-26-*   26      19/38         0.038              0.042            1.7

M22759/43-24-*   24      19/36         0.043              0.047            2.3

M22759/43-22-*   22      19/34         0.048              0.052            3.2

M22759/43-20-*   20      19/32         0.056              0.060            4.7

M22759/43-18-*   18      19/30         0.067              0.073            7.2

M22759/43-16-*   16      19/29         0.074              0.080            9.0

M22759/43-14-*   14      19/27         0.091              0.097            13.8

M22759/43-12-*   12      37/28         0.108              0.114            20.5

M22759/43-10-*   10      37/26         0.130              0.138            32.4

M22759/43-8-*      8      133/29        0.187              0.203            61.9

M22759/43-6-*      6      133/27        0.231              0.251            94.5

M22759/43-4-*      4      133/25        0.300              0.320            158

M22759/43-2-*      2      665/30        0.389              0.421            239

M22759/43-1-*      1      817/30        0.429              0.461            305

M22759/43-01-*   1/0    1045/30      0.469               0.501            385

M22759/43-02-*   2/0    1330/30      0.529               0.561            487

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/42-20-9; white with orange stripe -

M22759/42-20-93.
