用途：高温，重量轻航空应用，其中增加的机械强度和耐磨性的要求

CHARCACTERISTICS：

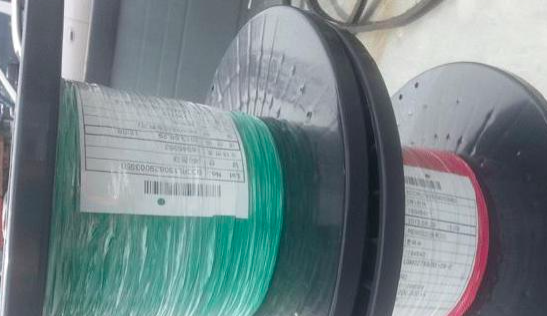

产品描述：绞合镀锡铜导体交联改性的ETFE绝缘（单层），颜色编码符合MIL-STD-681

温度等级：150℃

额定电压：600伏

MIL-W-22759/32 (M22759/32) | SAE AS22759/32

Finished Wire

Mil-Spec #           AWG   Stranding  Min O.D. (in)  MaxO.D. (in)   />

M22759/32-30-*   30      7/38        0.022          0.026      0.66

M22759/32-28-*   28      7/36        0.027          0.029      0.91

M22759/32-26-*   26     19/38       0.032          0.034       1.4

M22759/32-24-*   24     19/36       0.037          0.039       2.0

M22759/32-22-*   22     19/34       0.041          0.045       2.8

M22759/32-20-*   20     19/32       0.048          0.052       4.3

M22759/32-18-*   18     19/30       0.058          0.062       6.5

M22759/32-16-*   16     19/29       0.066          0.070       8.3

M22759/32-14-*   14     19/27       0.082          0.088      13.0

M22759/32-12-*   12      37/28      0.100          0.106      19.7

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/32-20-9; white with orange stripe -

M22759/32-20-93.
