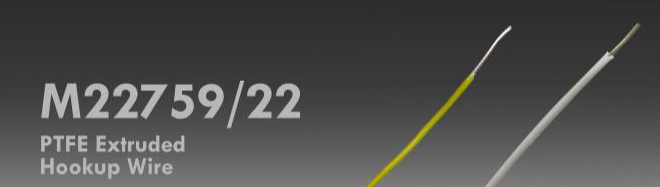

MIL-W-22759/22 | SAE AS22759/22航空线缆供应

应用：航空航天应用，中等重量，耐磨性和机械耐久性是必需的

特性：镀银绞线高强度铜合金导体膨化聚四氟乙烯（PTFE）绝缘，按照mil-std-681颜色编码

温度：200°

额定电压：600伏

MIL-W-22759/22 (M22759/22) | SAE AS22759/22

Mil-Spec # AWG Stranding Min O.D. (in) Ma xO.D. (in)

M22759/22-28-* 28 7/36 0.031 0.035 1.32

M22759/22-26-* 26 19/38 0.036 0.04 1.91

M22759/22-24-* 24 19/36 0.041 0.045 2.62

M22759/22-22-* 22 19/34 0.047 0.051 3.68

M22759/22-20-* 20 19/32 0.056 0.06 5.38 The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/22-20-9; white with orange stripe -

M22759/22-20-93.
