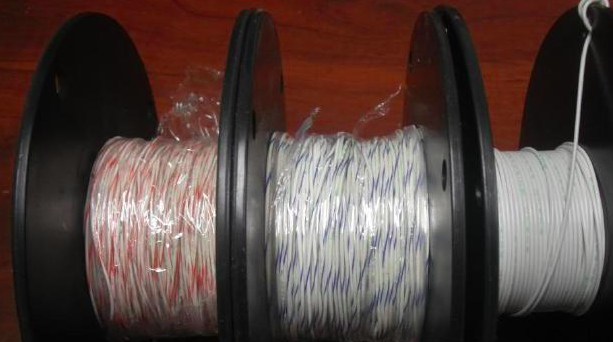

MIL-W-22759/19 (M22759/19) | SAE AS22759/19航空线缆

应用：航空航天应用，重量轻，耐磨性和机械耐久性是必需的

特性：镀银绞线高强度铜合金

挤塑乙烯-四氟乙烯（TEFZEL）绝缘，重量轻，按照mil-std-681颜色编码

温度：150°

额定电压：600伏

MIL-W-22759/19 (M22759/19) | SAE AS22759/19

Mil-Spec #            AWG     Stranding    min O.D. (in)   Max O.D. (in)    />

M22759/19-26-*    26          19/38       0.030             0.034                1.41

M22759/19-24-*    24          19/36       0.034             0.038                1.99

M22759/19-22-*    22          19/34       0.041             0.045                2.98

M22759/19-20-*    20          19/32       0.049             0.053                4.59

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/18-20-9; white with orange stripe -

M22759/18-20-93.
