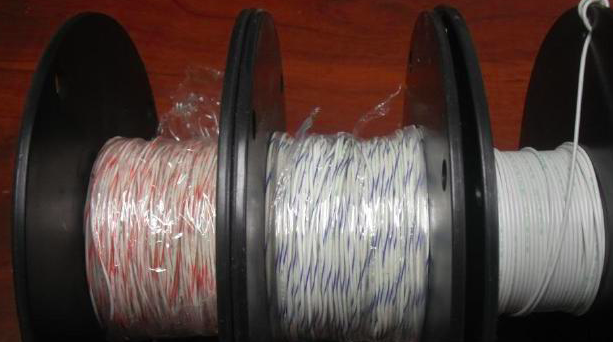

M22759/18线缆应用：

航空航天应用，重量轻，耐磨性和机械耐久性是必需的

特性产品描述：镀锡铜导线

挤塑乙烯-四氟乙烯（TEFZEL）绝缘，重量轻，按照mil-std-681颜色编码

额定温度：150°

额定电压：600伏

mil-w-22759/18（m22759/18）| SAE as22759/18

Mil-Spec #                AWG  Stranding  Min O.D. (in) Max O.D. (in)  />

M22759/18-26-*       26      19/38       0.030          0.034            1.52

M22759/18-24-*       24      19/36       0.034          0.038            2.12

M22759/18-22-*       22      19/34       0.041          0.045            3.16

M22759/18-20-*       20      19/32       0.049          0.053            4.76

M22759/18-18-*       18      19/30       0.059          0.063            7.10

M22759/18-16-*       16      19/29       0.068          0.072            9.14

M22759/18-14-*       14      19/27       0.083          0.087            14.1

M22759/18-12-*       12      37/28       0.104          0.110            21.6

M22759/18-10-*       10      37/26       0.131          0.137            34.1

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/18-20-9; white with orange stripe -

M22759/18-20-93.
