mil-w-22759/11
SAE as22759/11
军用规格线缆
标准墙
m22759/11线缆结构：
导体：镀银铜
绝缘：聚四氟乙烯无粘涂层，010公称壁厚
m22759/11额定值：
额定电压：600伏
温度等级：200°（392°）

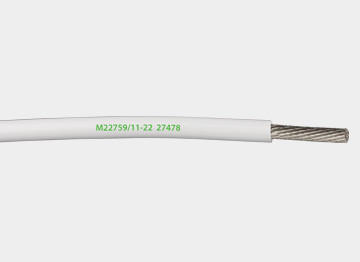

mil-w-22759/11识别：
绿色或白色的印刷在绝缘层的
军标部分包括AWG
PART NUMBER AWG Conductor Stranding Approx LBS/MFT Nom. Dia. of Cond. min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/11-28-0 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-1 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-2 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-3 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-4 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-5 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-6 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-7 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-8 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-28-9 28 7/36 2 0.031 0.035 Silver Plated Copper 200°C 600
M22759/11-26-0 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-1 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-2 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-3 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-4 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-5 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-6 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-7 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-8 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-26-9 26 19/38 2 0.036 0.04 Silver Plated Copper 200°C 600
M22759/11-24-0 24 19/36 3 0.041 0.045 Silver Plated Copper 200°C 600
M22759/11-24-1 24 19/36 3 0.041 0.045 Silver Plated Copper 200°C 600
M22759/11-24-2 24 19/36 3 0.041 0.045 Silver Plated Copper 200°C 600
M22759/11-24-3 24 19/36 3 0.041 0.045 Silver Plated Copper 200°C 600
