SAE AS22759电线是一种含氟聚合物绝缘单芯电线，是各种军事航空航天应用的理想选择。由于AS22759电线的制造符合军用规格，因此它也是许多商业应用的首选。 SAE AS22759电线在严苛的防风和防潮（SWAMP）区域（如发动机短舱）以及需要过载稳定性，低烟雾排放和防火的区域（如飞机舱）中具有高性能和可靠性。
SAE AS22759导线可承载高达1000伏的电压，能够在-55°C至260°C（-67°F至500°F）的极端温度范围内工作。

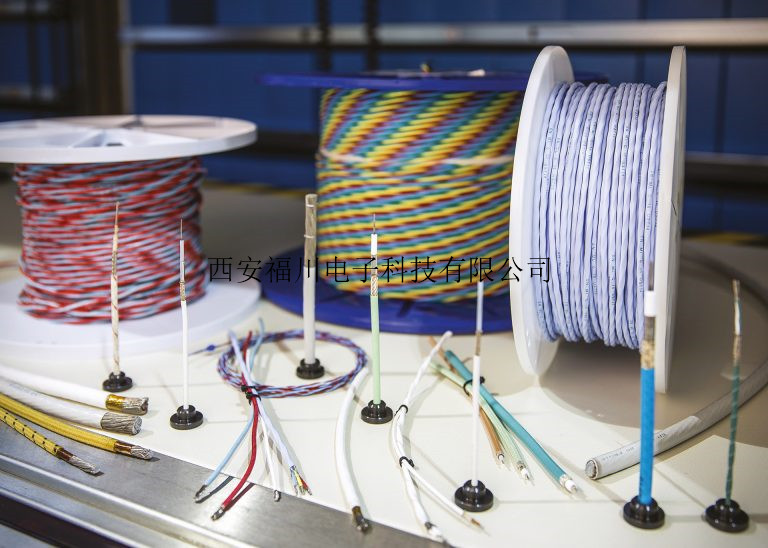

A.E. Petsche提供许多不同配置的AS22759电线。选择涂有锡，银，镀镍铜或高强度铜合金的导体。我们还提供多种绝缘材料选择，以满足您的需求。
AS22759电线提供的一些独特特性包括：
出色的热稳定性
高可靠性
高断裂强度和弯曲寿命
高耐磨性
AS22759电线的尺寸范围为30至0000 AWG。
注意：此规范以前在MIL-W-22759下列出。
PIN | AWG | Conductor Plating | Voltage | Temp | Insulation | M27500 Designation |
M22759/1 | 22-04 | Silver | 600 | 200ºC | PTFE and PTFE Coated Glass | EA |
M22759/2 | 22-04 | Nickel | 600 | 260ºC | PTFE and PTFE Coated Glass | E |
M22759/3 | 22-02 | Nickel | 600 | 260ºC | TFE Glass TFE | RA |
M22759/4 | 22-02 | Silver | 600 | 200ºC | TFE-Glass-FEP | RB |
M22759/5 | 24-4 | Silver | 600 | 200ºC | Abrasion Resistant Mineral Filled TFE | VA |
M22759/6 | 24-4 | Nickel | 600 | 260ºC | Abrasion Resistant Mineral Filled TFE | WA |
M22759/7 | 24-4 | Silver | 600 | 200ºC | Abrasion Resistant Mineral Filled TFE | SA |
M22759/8 | 24-4 | Nickel | 600 | 260ºC | Abrasion Resistant Mineral Filled TFE | TA |
M22759/9 | 28-8 | Silver | 1000 | 200ºC | Extruded TFE | LE |
M22759/10 | 28-8 | Nickel | 1000 | 260ºC | Extruded TFE | LH |
M22759/11 | 28-8 | Silver | 600 | 200ºC | Extruded TFE | RC |
M22759/12 | 28-8 | Nickel | 600 | 260ºC | Extruded TFE | RE |
M22759/13 | 24-01 | Tin | 600 | 135ºC | FEP-PVF2 | CA |
M22759/14 | 26-12 | Tin | 600 | 135ºC | FEP-PVF2 | CB |
M22759/15 | 26-20 | SPHSCA | 600 | 135ºC | FEP-PVF2 | CC |
M22759/16 | 24-02 | Tin | 600 | 150ºC | Extruded ETFE | TE |
M22759/17 | 26-20 | SPHSCA | 600 | 150ºC | Extruded ETFE | TF |
M22759/18 | 26-10 | Tin | 600 | 150ºC | Extruded ETFE | TG |
M22759/19 | 26-20 | SPHSCA | 600 | 150ºC | Extruded ETFE | TH |
M22759/20 | 28-20 | SPHSCA | 1000 | 200ºC | Extruded TFE | TK |
M22759/21 | 28-20 | NPHSCA | 1000 | 260ºC | Extruded TFE | TL |
M22759/22 | 28-20 | SPHSCA | 600 | 200ºC | Extruded TFE | TM |
M22759/23 | 28-20 | NPHSCA | 600 | 260ºC | Extruded TFE | TN |
M22759/28 | 28-8 | Silver | 600 | 200ºC | Extruded TFE with Polyimide Coating | JB |
M22759/29 | 28-8 | Nickel | 600 | 260ºC | Extruded TFE with Polyimide Coating | JC |
M22759/30 | 28-20 | SPHSCA | 600 | 200ºC | Extruded TFE with Polyimide Coating | JD |
M22759/31 | 28-20 | NPHSCA | 600 | 260ºC | Extruded TFE with Polyimide Coating | JE |
M22759/32 | 30-12 | Tin | 600 | 150ºC | Crosslinked Modified ETFE | SB |
M22759/33 | 30-20 | SPHSCA | 600 | 200ºC | Crosslinked Modified ETFE | SC |
M22759/34 | 24-02 | Tin | 600 | 150ºC | Crosslinked Modified ETFE | SD |
M22759/35 | 26-20 | SPHSCA | 600 | 200ºC | Crosslinked Modified ETFE | SE |
M22759/41 | 26-02 | Nickel | 600 | 200ºC | Crosslinked Modified ETFE | SM |
M22759/42 | 26-20 | NPHSCA | 600 | 200ºC | Crosslinked Modified ETFE | SN |
M22759/43 | 26-02 | Silver | 600 | 200ºC | Crosslinked Modified ETFE | SP |
M22759/44 | 28-12 | Silver | 600 | 200ºC | Crosslinked Modified ETFE | SR |
M22759/45 | 28-12 | Nickel | 600 | 200ºC | Crosslinked Modified ETFE | SS |
M22759/46 | 28-20 | NPHSCA | 600 | 200ºC | Crosslinked Modified ETFE | ST |
M22759/80 | 26-10 | Tin | 600 | 150ºC | PTFE/Polyimide | WB |
M22759/81 | 26-20 | Silver | 600 | 200ºC | PTFE/Polyimide | WC |
M22759/82 | 26-20 | NPHSCA | 600 | 260ºC | PTFE/Polyimide | WE |
M22759/83 | 8-04 | Silver | 600 | 200ºC | PTFE/Polyimide | WF |
M22759/84 | 8-04 | Nickel | 600 | 260ºC | PTFE/Polyimide | WG |
M22759/85 | 8-04 | Tin | 600 | 150ºC | PTFE/Polyimide | WH |
M22759/86 | 26-04 | Silver | 600 | 200ºC | PTFE/Polyimide | WJ |
M22759/87 | 26-04 | Nickel | 600 | 260ºC | PTFE/Polyimide | WK |
M22759/88 | 26-04 | Tin | 600 | 150ºC | PTFE/Polyimide | WL |
M22759/89 | 26-20 | SPHSCA | 600 | 200ºC | PTFE/Polyimide | WM |
M22759/90 | 26-20 | NPHSCA | 600 | 260ºC | PTFE/Polyimide | WN |
M22759/91 | 26-10 | Silver | 600 | 200ºC | PTFE/Polyimide | WP |
M22759/92 | 26-10 | Nickel | 600 | 260ºC | PTFE/Polyimide | WR |
M22759/180 | 26-10 | Tin | 600 | 150ºC | PTFE/Polyimide with Seamles PTFE tape | DB |
M22759/181 | 26-20 | Silver | 600 | 200ºC | PTFE/Polyimide with Seamles PTFE tape | DC |
M22759/182 | 26-20 | NPHSCA | 600 | 260ºC | PTFE/Polyimide with Seamles PTFE tape | DE |
M22759/183 | 8-04 | Silver | 600 | 200ºC | PTFE/Polyimide with Seamles PTFE tape | DF |
M22759/184 | 8-04 | Nickel | 600 | 260ºC | PTFE/Polyimide with Seamles PTFE tape | DG |
M22759/185 | 8-04 | Tin | 600 | 150ºC | PTFE/Polyimide with Seamles PTFE tape | DH |
M22759/186 | 26-04 | Silver | 600 | 200ºC | PTFE/Polyimide with Seamles PTFE tape | DJ |
M22759/187 | 26-04 | Nickel | 600 | 260ºC | PTFE/Polyimide with Seamles PTFE tape | DK |
M22759/188 | 26-04 | Tin | 600 | 150ºC | PTFE/Polyimide with Seamles PTFE tape | DL |
M22759/189 | 26-20 | SPHSCA | 600 | 200ºC | PTFE/Polyimide with Seamles PTFE tape | DM |
M22759/190 | 26-20 | NPHSCA | 600 | 260ºC | PTFE/Polyimide with Seamles PTFE tape | DN |
M22759/191 | 26-10 | Silver | 600 | 200ºC | PTFE/Polyimide with Seamles PTFE tape | DP |
M22759/192 | 26-10 | Nickel | 600 | 260ºC | PTFE/Polyimide with Seamles PTFE tape | DR |
