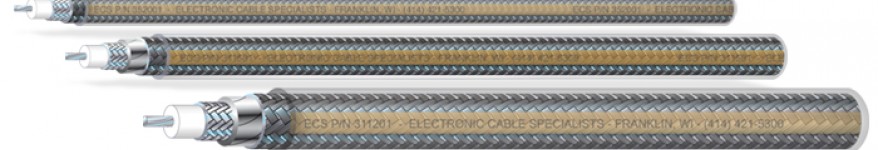

Carlisle主要特点：RG电缆直径的一半，比MIL-C-17标准电缆轻75%，较小的弯曲半径-增加了安装过程中布线的灵活性，卓越的EMI/RFI干扰保护，满足或超过FAR第25部分燃烧/烟雾要求，满足并超过波音和空客规定的行业毒性要求。耐SKYDROL®和其他液压油，防止进水，减少电缆/连接器接口的应力。
导体：镀银铜
温度额定值：-55°C至200°C
电介质：聚四氟乙烯
夹套：高温氟聚合物

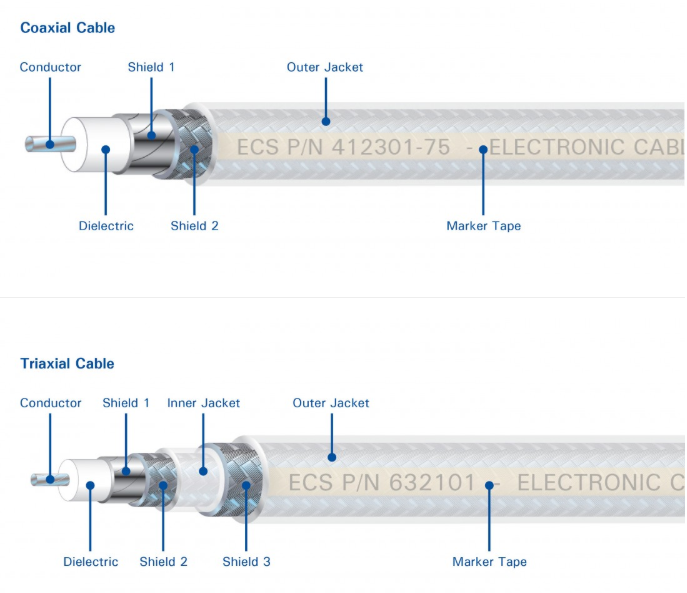

| Cable Part # | Impedance (Ohms) | Capacitance (pF/foot) | Velocity of Propagation (%) | D.C. Resistance (Ohms/1000ft) | Time Delay (ns/foot) | Attenuation @400 MHz (db/100ft) | Attenuation @1000 MHZ (db/100FT) | Outer Diameter (inches) | Weight (lbs/100ft) | Bend Radius (inches) | Temp Range (celsius) | # of shields |
| 50 Ohm Triax | ||||||||||||
| 322001 | 50 | 29.5 | 69.5 | 8.7 | 1.46 | 8.6 | 14 | 0.236 | 5.7 | 1.2 | -55 to +200˚ | 2 |
| 632101 | 50 | 26 | 76 | 9.6 | 1.34 | 8.5 | 14 | 0.171 | 2.9 | 0.855 | -55 to +200˚ | 3 |
| 75 Ohm Triax | ||||||||||||
| 322401 | 75 | 19.5 | 69.5 | 24.4 | 1.46 | 8 | N/A | 0.246 | 5.8 | 1 | -55 to +200˚ | 3 |
| 612301 | 75 | 20 | 82 | 23.7 | 1.28 | 9 | N/A | 0.2 | 3.7 | 1 | -55 to +150˚ | 3 |
| 75 Ohm Coax | ||||||||||||
| 442001 | 75 | 18.5 | 73 | 37.3 | 1.4 | 5.5 | 8.9 | 0.2 | 2.5 | 1 | -55 to +85˚ | 2 |
| 412301-75 | 75 | 20 | 82 | 23.7 | 1.28 | 8 | 16.5 | 0.15 | 1.8 | 0.75 | -55 to +150˚ | 2 |
| 442501 | 75 | 16 | 82 | 37.3 | 1.25 | 9.5 | N/A | 0.13 | 1.25 | 0.61 | -55 to +150˚ | 2 |
| 3C179B1 | 75 | 19.5 | 69.5 | 234 | 1.46 | 15.8 | 25 | 0.1 | 1.08 | 0.5 | -55 to +200˚ | 1 |
