AirBorn可堆叠兼容连接器系列是AirBorn针对高密度板对板堆叠应用的解决方案之一。该连接器系列提供0.075“触点间距和100Ω和85Ω差分串行总线。 0.075英寸触点间距 3和4行 1-4个托架（25-120个触点） 压配，镀通孔端子 多种标准引脚/尾部长度可适应任何板对板间距 可靠的“针眼”兼容型截面设计消除了焊接 BeCu触点（特殊的高导电性高温合金） 插座触点非常坚固（低应力设计） 可单独修复的触点 VSF-垂直（母） 型号 | ||||||||

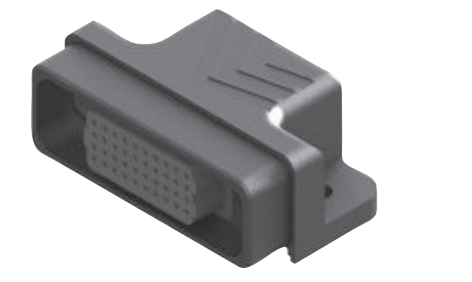

479-VRF04105000G | VRF-04-10-50-00-G | 一种 | 40 | 4 | 压合 | 58.31 | 54.88 | 46.98 |
479-VRF04105004G | VRF-04-10-50-04-G | 一种 | 40 | 4 | 通孔 | 46.41 | 43.68 | 37.40 |
479-VRF04205000G | VRF-04-20-50-00-G | 一种 | 80 | 4 | 压合 | 57.22 | 53.85 | 46.11 |
479-VRF04205003G | VRF-04-20-50-03-G | 一种 | 80 | 4 | 通孔 | 57.24 | 53.87 | 46.13 |
479-VRF04505004G | VRF-04-50-50-04-G | 一种 | 200 | 4 | 通孔 | 107.53 | 101.20 | 86.65 |
479-VRF05205000N | VRF-05-20-50-00-N | 一种 | 100 | 5 | 压合 | 60.83 | 57.24 | 49.02 |
479-VRF06105005N | VRF-06-10-50-05-N | 一种 | 60 | 6 | 通孔 | 50.00 | 47.05 | 40.29 |
479-VRF06205001G | VRF-06-20-50-01-G | 一种 | 120 | 6 | 焊接 | 61.44 | 57.82 | 49.51 |
479-VRF06405005N | VRF-06-40-50-05-N | 一种 | 240 | 6 | 通孔 | 106.56 | 100.28 | 85.87 |
479-VRF06505005N | VRF-06-50-50-05-N | 一种 | 300 | 6 | 通孔 | 119.48 | 112.44 | 96.28 |
VSM-垂直（公头） | ||||||||
479-VSM04100805001J | VSM-04-10-080-50-01-J | 巳 | 40 | 4 | 焊接 | 30.39 | 27.43 | 23.82 |
479-VSM04100805003G | VSM-04-10-080-50-03-G | 巳 | 40 | 4 | 通孔 | 26.23 | 23.68 | 20.56 |
479-VSM04101005000G | VSM-04-10-100-50-00-G | 巳 | 40 | 4 | 压合 | 26.23 | 23.68 | 20.56 |
479-VSM04200805001N | VSM-04-20-080-50-01-N | 巳 | 80 | 4 | 焊接 | 42.43 | 38.31 | 33.26 |
479-VSM04200805003G | VSM-04-20-080-50-03-G | 巳 | 80 | 4 | 通孔 | 40.93 40.93 | 36.95 36.95 | 32.08 32.08 |
479-VSM04201005000G | VSM-04-20-100-50-00-G | 巳 | 80 | 4 | 压合 | |||
479-VSM04301205000N | VSM-04-30-120-50-00-N | 巳 | 120 | 4 | 压合 | 52.51 | 49.42 | 42.32 |
479-VSM04501605000G | VSM-04-50-160-50-00-G | 巳 | 200 | 4 | 压合 | 78.17 | 73.56 | 62.99 |
479-VSM05101003003N | VSM-05-10-100-30-03-N | 巳 | 50 | 5 | 通孔 | 28.56 | 25.78 | 22.38 |
479-VSM05101203004G | VSM-05-10-120-30-04-G | 巳 | 50 | 5 | 通孔 | 27.04 | 24.41 | 21.19 |
479-VSM06101005000G | VSM-06-10-100-50-00-G | 巳 | 60 | 6 | 压合 | 29.96 | 27.05 | 23.48 |
479-VSM06300805000J | VSM-06-30-080-50-00-J | 巳 | 180 | 6 | 压合 | 65.26 | 61.42 | 52.59 |
479-VSM06301203003G | VSM-06-30-120-30-03-G | 巳 | 180 | 6 | 通孔 | 57.99 | 54.57 | 46.73 |
VRRAF-Ruqqed直角型（母） | ||||||||
479-VRRAF04105000G | VRRAF-04-10-50-00-G | C | 40 | 4 | 压合 | 83.27 | 78.36 | 67.10 |
479-VRRAF04205000G | VRRAF-04-20-50-00-G | C | 80 | 4 | 压合 | 101.58 | 95.60 | 81.86 |
479-VRRAF04305000G | VRRAF-04-30-50-00-G | C | 120 | 4 | 压合 | 119.87 | 112.81 | 96.60 |
479-VRRAF04505000N | VRRAF-04-50-50-00-N | C | 200 | 4 | 压合 | 162.80 | 148.70 | 135.67 |
479-VRRAF06105003N | VRRAF-06-10-50-03-N | C | 60 | 6 | 通孔 | 86.85 | 81.74 | 69.99 |
479-VRRAF06405000G | VRRAF-06-40-50-00-G | C | 240 | 6 | 压合 | 152.73 | 139.51 | 127.28 |
479-VRRAF06405003N | VRRAF-06-40-50-03-N | C | 240 | 6 | 通孔 | 195.11 | 178.21 | 162.60 |
479-VRRAF10505000N | VRRAF-10-50-50-00-N | C | 500 | 10 | 压合 | 190.50 | 174.01 | 158.76 |
VRRAM-坚固的直角（公头） | ||||||||
479-VRRAM04105003G | VRRAM-04-10-50-03-G | d | 40 | 4 | 通孔 | 86.29 | 81.21 | 69.54 |
479-VRRAM04105004G | VRRAM-04-10-50-04-G | d | 40 | 4 | 通孔 | 86.28 | 81.20 | 69.53 |
479-VRRAM04205004G | VRRAM-04-20-50-04-G | d | 80 | 4 | 通孔 | 107.27 | 100.96 | 86.45 |
479-VRRAM04505003G | VRRAM-04-50-50-03-G | d | 200 | 4 | 通孔 | 178.02 | 162.61 | 148.36 |
479-VRRAM06105003G | VRRAM-06-10-50-03-G | d | 60 | 6 | 通孔 | 89.73 | 84.44 | 72.31 |
479-VRRAM06205004G | VRRAM-06-20-50-04-G | d | 120 | 6 | 通孔 | 114.14 | 107.42 | 91.98 |
479-VRRAM06405003N | VRRAM-06-40-50-03-N | d | 240 | 6 | 通孔 | 218.94 | 199.98 | 182.46 |
479-VRRAM06505003N | VRRAM-06-50-50-03-N | d | 300 | 6 | 通孔 | 194.39 | 177.55 | 162.00 |
VSF-垂直（母） | ||||||||
479-VSF04105000G | VSF-04-10-50-00-G | Ë | 40 | 4 | 压合 | 23.04 | 20.80 | 18.06 |
479-VSF04105001N | VSF-04-10-50-01-N | Ë | 40 | 4 | 焊接 | 24.69 | 22.29 | 19.35 |
479-VSF04105003G | VSF-04-10-50-03-G | Ë | 40 | 4 | 通孔 | 23.06 | 20.82 | 18.08 |
479-VSF04105003N | VSF-04-10-50-03-N | Ë | 40 | 4 | 通孔 | 24.69 | 22.29 | 19.35 |
479-VSF04105004J | VSF-04-10-50-04-J | Ë | 40 | 4 | 通孔 | 27.22 | 24.58 | 21.34 |
479-VSF04205000G | VSF-04-20-50-00-G | Ë | 80 | 4 | 压合 | 34.85 | 31.46 | 27.31 |
479-VSF04205001J | VSF-04-20-50-01-J | Ë | 80 | 4 | 焊接 | 39.01 | 35.22 | 30.57 |
479-VSF04305003G | VSF-04-30-50-03-G | Ë | 120 | 4 | 通孔 | 54.44 | 51.23 | 43.87 |
479-VSF04505000J | VSF-04-50-50-00-J | Ë | 200 | 4 | 压合 | 68.36 | 64.33 | 55.09 |
479-VSF05103004N | VSF-05-10-30-04-N | Ë | 50 | 5 | 通孔 | 25.17 | 22.72 | 19.73 |
479-VSF06103003G | VSF-06-10-30-03-G | Ë | 60 | 6 | 通孔 | 24.56 | 22.17 | 19.25 |
479-VSF06105000G | VSF-06-10-50-00-G | Ë | 60 | 6 | 压合 | 25.34 | 22.87 | 19.86 |
479-VSF06303003G | VSF-06-30-30-03-G | Ë | 180 | 6 | 通孔 | 47.02 | 44.25 | 37.89 |
479-VSF06305000G | VSF-06-30-50-00-G | Ë | 180 | 6 | 通孔 | 49.15 | 46.25 | 39.60 |
479-VSF-06-40-50-05 | VSF-06-40-50-05 | Ë | 240 | 6 | 通孔 | 56.15 | 52.84 | 45.25 |
479-VSF06505003G | VSF-06-50-50-03-G | Ë | 300 | 6 | 通孔 | 95.14 | 89.54 | 76.67 |
VRM-垂直加固（男） | ||||||||
479-VRM04101005001G | VRM-04-10-100-50-01-G | F | 40 | 4 | 焊接 | 49.43 | 46.52 | 39.84 |
479-VRM04101005003J | VRM-04-10-100-50-03-J | F | 40 | 4 | 通孔 | 53.24 | 50.11 | 42.91 |
479-VRM04201005001G | VRM-04-20-100-50-01-G | F | 80 | 4 | 焊接 | 62.95 | 59.24 | 50.73 |
479-VRM06201005001G | VRM-06-20-100-50-01-G | F | 120 | 6 | 焊接 | 69.80 | 65.69 | 56.25 |
479-VRM06401005005N | VRM-06-40-100-50-05-N | F | 240 | 6 | 通孔 | 127.88 | 120.35 | 103.05 |
VSRAF-直角（母） | ||||||||
479-VSRAF04103000G | VSRAF-04-10-30-00-G | G | 40 | 4 | 压合 | 33.31 | 30.07 | 26.11 |
479-VSRAF04105003G | VSRAF-04-10-50-03-G | G | 40 | 4 | 通孔 | 33.83 | 30.54 | 26.51 |
479-VSRAF04205003G | VSRAF-04-20-50-03-G | G | 80 | 4 | 通孔 | 49.38 | 46.48 | 39.80 |
479-VSRAF04305000G | VSRAF-04-30-50-00-G | G | 120 | 4 | 压合 | 67.69 | 63.71 | 54.55 |
479-VSRAF04405000G | VSRAF-04-40-50-00-G | G | 160 | 4 | 压合 | 86.00 | 80.94 | 69.31 |
479-VSRAF06105000G | VSRAF-06-10-50-00-G | G | 60 | 6 | 压合 | 36.10 | 32.59 | 28.30 |
479-VSRAF06205000G | VSRAF-06-20-50-00-G | G | 120 | 6 | 压合 | 53.57 | 50.41 | 43.17 |
479-VSRAF06405000N | VSRAF-06-40-50-00-N | G | 240 | 6 | 压合 | 95.86 | 90.22 | 77.25 |
479-VSRAF10405000G | VSRAF-10-40-50-00-G | G | 400 | 10 | 压合 | 111.11 | 104.57 | 89.54 |
VSRAM-直角（公头） | ||||||||
479-VSRAM04105004G | VSRAM-04-10-50-04-G | H | 40 | 4 | 通孔 | 36.99 | 33.40 | 28.99 |
479-VSRAM04205004G | VSRAM-04-20-50-04-G | H | 80 | 4 | 通孔 | 54.98 | 51.74 | 44.30 |
479-VSRAM06105000G | VSRAM-06-10-50-00-G | H | 60 | 6 | 压合 | 40.73 | 36.77 | 31.92 |
479-VSRAM06205004G | VSRAM-06-20-50-04-G | H | 120 | 6 | 通孔 | 61.86 | 58.22 | 49.85 |
479-VSRAM06305000N | VSRAM-06-30-50-00-N | H | 180 | 6 | 压合 | 87.65 | 82.49 | 70.64 |
479-VSRAM06405000N | VSRAM-06-40-50-00-N | H | 240 | 6 | 压合 | 112.08 | 105.48 | 90.32 |
