| 供应分类: | 连接器 |
|
| 制作商: | AXON' CABLE, INC. | |
| 执行标准: | MIL-DTL-83513/7 |
|
| 标题描述: |
Connectors, Electrical, Rectangular, Receptacle, Microminiature, Polarized Shell, Socket Contacts, Class P, Solder Type |
|
| 标题描述: | 连接器,电气,矩形,插座,微型,极化壳体,插孔,塑料外壳,焊接 |
|
| 标准规范 | 孔组排列 | ||||||||||||||||
| M83513/07- | A | ||||||||||||||||
| MIL-DTL-83513/07 |
|

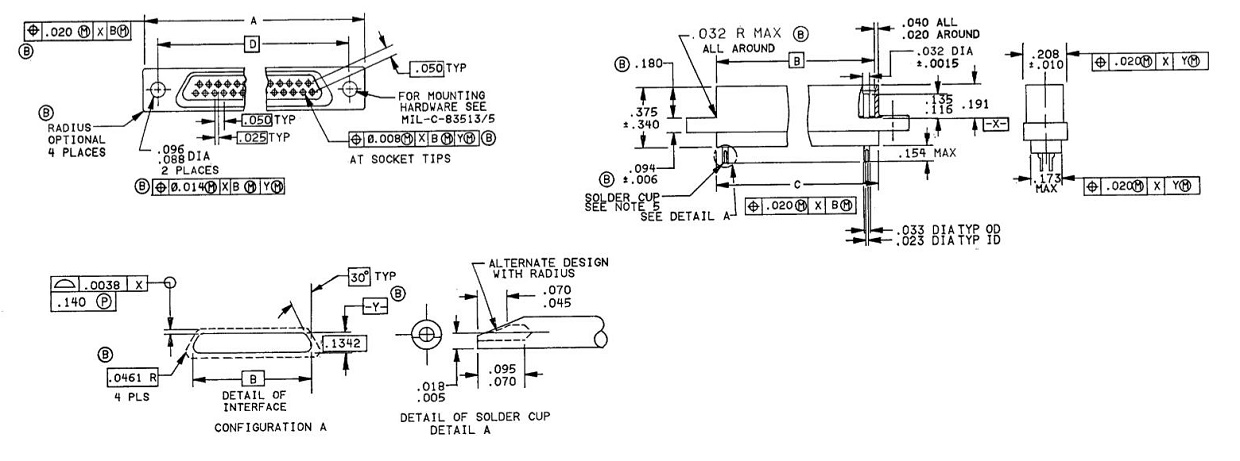

图片尺寸
|
Number of cavities |
A ±.010 |
B BSC |
C+.010-.018 |
D BSC |
|
9 |
.778 (19.76) |
.2922 (7.422) |
.398 (10.11) |
.565 (14.35) |
|
15 |
.928 (23.57) |
.4422(11,232)； |
.548 (13.92) |
.715 (18.16) |
|
21 |
1.078 (27.38) |
.5922 (15.042) |
.698 (17.73) |
.865 (21.97) |
|
25 |
1.178 (29.92) |
.6922 (17.582) |
.798 (20.27) |
.965 (24.51) |
|
31 |
1.328 (33.73) |
.8422 (21 .392) |
.948 (24.08) |
1.115 (28.32) |
|
37 |
1.478 (37.54) |
.9922 (25.202) |
1.098 (27.89) |
1.265 +.010 (32.13)-.005 |
|
51 |
X |
