| 供应分类: | 连接器 |
|
| 制作商: | JOSLYN SUNBANK COMPANY, LLC | |
| 执行标准: | MIL-DTL-83723/70 |
|
| 标题描述: |
Connectors, Electrical, (Circular, Environment Resisting), Receptacle Adapter (Push-Pull), Quick-Disconnect, Series III, Classes A, G, M, R, T, W and Z |
|
| 标题描述: | 连接器,电气,圆形,耐环境,插座,适配器,推拉,快速分离,系列III,类型A,G,M,R,T,W,Z |
|
|

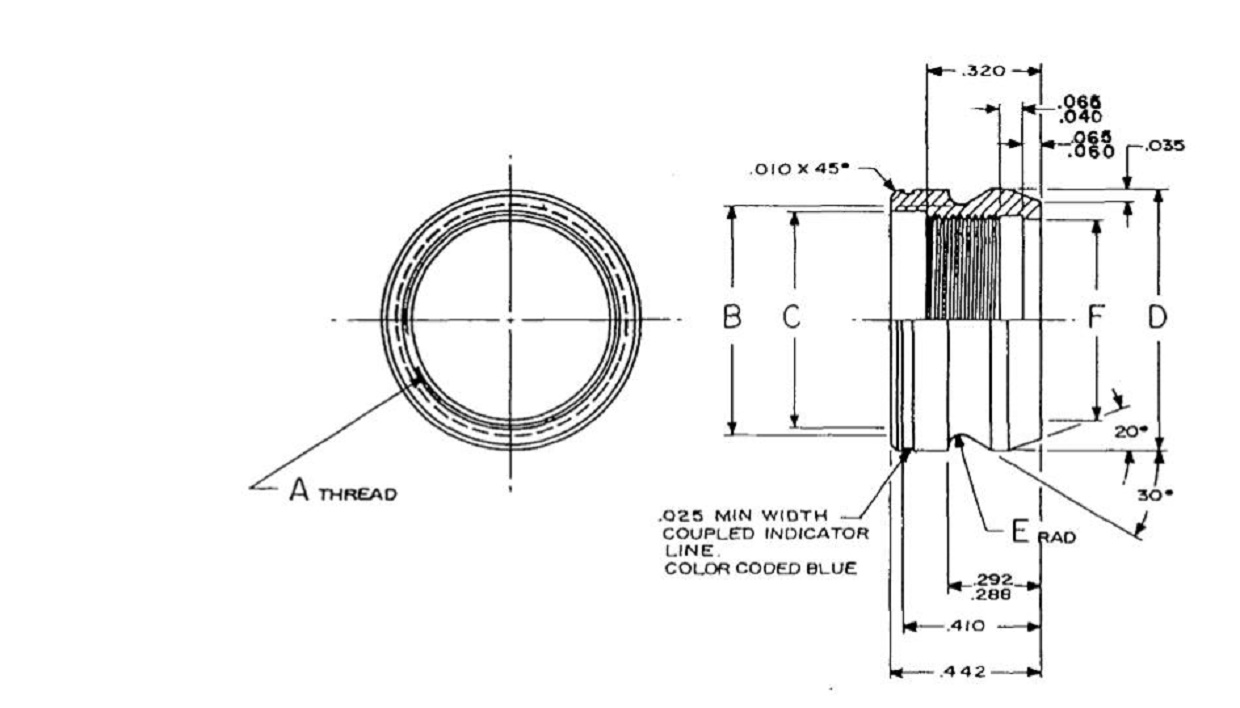

Shell size |
A UNEF-2B coupling thread |
B dia |
C dia |
D dia |
E |
F dia |
|
8 |
.5625-24 |
.607 (15.42) .603 (15.32) |
.579 (14.71) .575 (14.61) |
.689 (17.50) .685 (17.40) |
.036 (0.91) .031 (0.79) |
.525 (13.34) |
|
10 |
.6875-24 |
.732 (18.59) .728 (18.49) |
.714 (18.14) .710 (18.03) |
.814 (20.68) .810 (20.57) |
.036 (0.91) .031 (0.79) |
.650 (16.51) |
|
12 |
.875-20 |
.919 (23.34) .915 (23.24) |
.894 (22.71) .890 (22.61) |
1.001(25.43) .997 (25.32) |
.036 (0.91) .031 (0.79) |
.840 (21.34) |
|
14 |
.9375-20 |
.982 (24.94) .978 (24.84) |
.954 (24.23) .950 (24.13) |
1.064 (27.03) 1.060 (26.92) |
.036 (0.91) .031 (0.79) |
.900
