| 供应分类: | 连接器 |
|
| 制作商: | HERMETIC SEAL CORPORATION | |
| 执行标准: | MIL-DTL-83723/81 |
|
| 标题描述: |
Connectors, Electrical, (Circular, Environment Resisting), Receptacle, (Single Hole Mount, Bayonet Coupling, Solder Pin Contact), (Series III, Classes H, J, L, P and Y) |
|
| 标题描述: | 连接器,电气,圆形,耐环境,插座,螺母安装,卡口连接,焊接,插针,系列III,类型H,J,L,P,Y |
|
| 主称代码 | 外壳镀层 | 壳体代码 | 孔组代码 | 键槽定位 | ||||||||||||||||||||||||||||||||||||||||||||||||
| M83723/81 | H | 22 | 55 | N | ||||||||||||||||||||||||||||||||||||||||||||||||
| MIL-DTL-83723/81 |
|
8 10 12 14 16 18 20 22 24 |
MIL-STD-1554 |
N 6 7 8 9 Y |

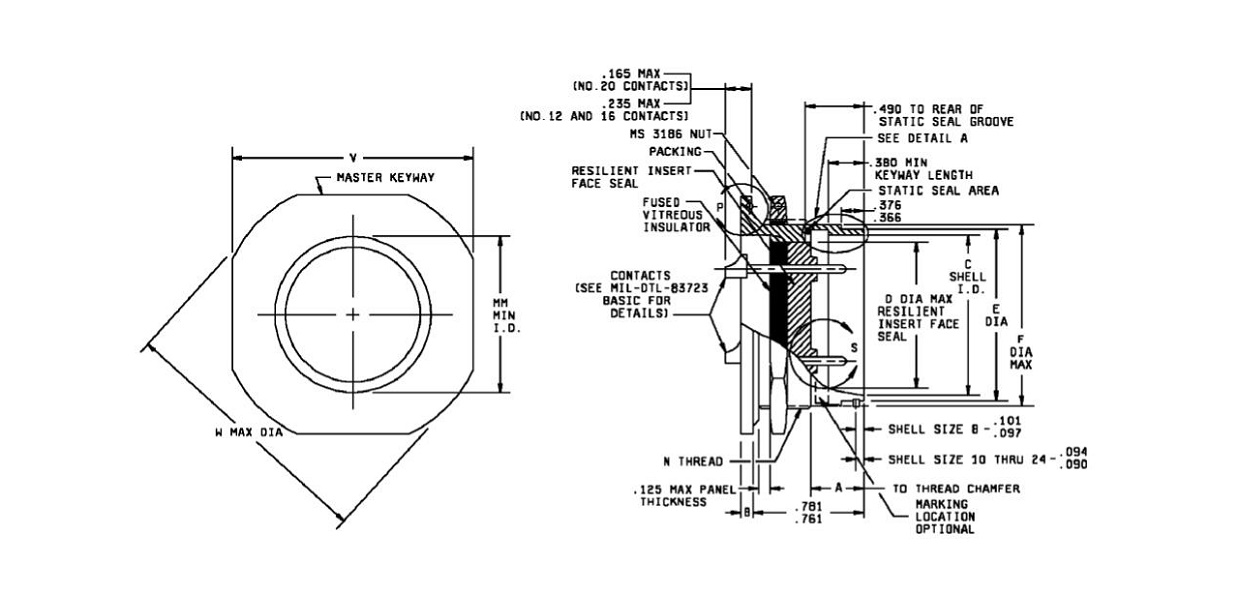

图纸尺寸
交叉文件
|
Shell size |
A |
B |
C |
D |
E |
F |
N thread |
U |
V |
W |
S + .005 -.000 |
EE |
FF |
MM |
JJ |
|
8 |
.481 .461 |
.137 .097 |
.428 .433 |
.312 |
.536 .531 |
.561 |
.625-20UN-2A |
