| 供应分类: | 连接器 |
|
| 制作商: | HI REL CONNECTORS, INC. | |
| 执行标准: | MIL-DTL-83723/89 |
|
| 标题描述: |
Connectors, Electrical, (Circular, Environment Resisting), Receptacle, (Single Hole Mount, Threaded Coupling, Solder Pin Contact), (Series III, Classes H, J, L, N, P, and Y) |
|
| 标题描述: | 连接器,电气,圆形,耐环境,插座,螺母安装,螺纹连接,焊接,插针,系列III,类型H,J,L,N,P,Y |
|
| 主称代码 | 外壳镀层 | 壳体代码 | 孔组代码 | 键槽定位 | ||||||||||||||||||||||||||||||||||||||||||||||||
| M83723/89 | H | 22 | 55 | N | ||||||||||||||||||||||||||||||||||||||||||||||||
| MIL-DTL-83723/89 |
|
8 10 12 14 16 18 20 22 24 |
MIL-STD-1554 |
N 6 7 8 9 Y |

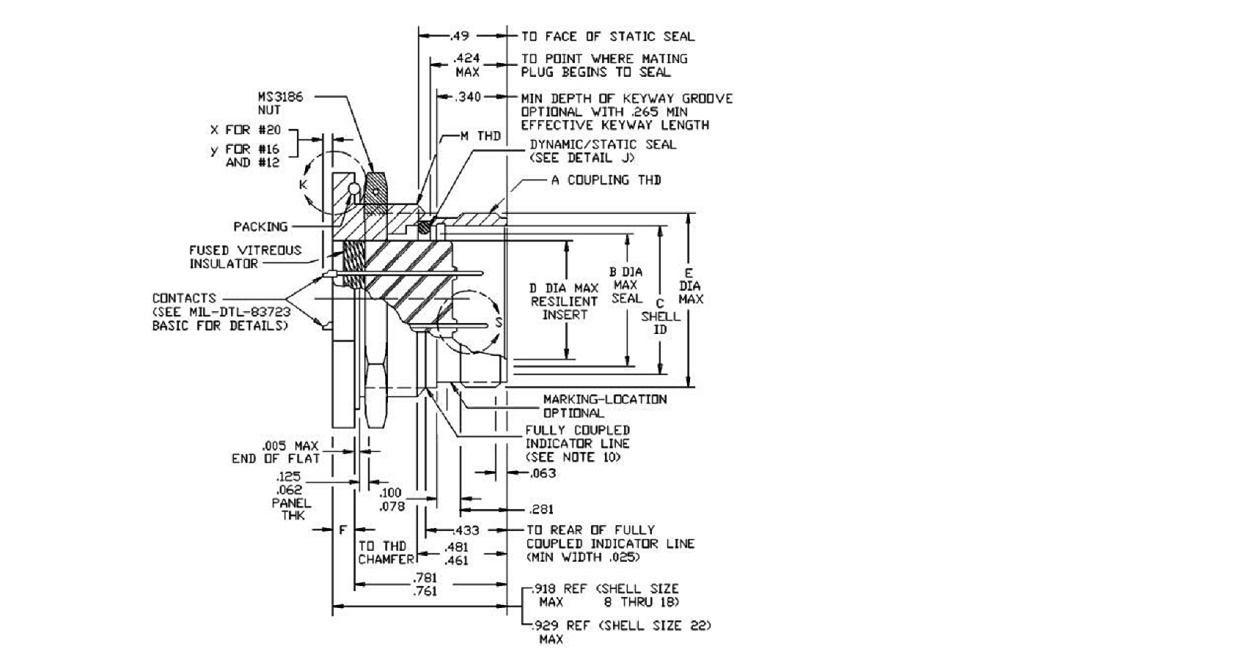

图纸尺寸
|
Shell size |
A thread |
B |
C |
D |
E |
F |
M thread |
N |
P |
R |
W |
X |
|
8 |
.562-24UNEF-2A |
.394 |
.418 / .413 |
.290 |
.562 |
.137 / .097 |
.625-20UN-2A |
.670 |
.980 / .949 |
1.078 /1.047 |
.400 |
.180 / .120 |
|
10 |
|
