| 供应分类: | 连接器 |
|
| 制作商: | JOSLYN SUNBANK COMPANY, LLC | |
| 执行标准: | MIL-DTL-38999/33 |
|
| 标题描述: |
Connector, Electrical Circular, Cover, Protective, Receptacle, Series III, Metric |
|
| 标题描述: | 连接器,电气,圆形,防护罩,插座,系列III,公制 |
|
| 主称代码 | 壳体镀层 | 壳体代码 | 类型 | |||||||||||||||||||||||||||||||||||||||||||||
| D38999/33 | W | 15 | R | |||||||||||||||||||||||||||||||||||||||||||||
| MIL-DTL-38999/33 |
|
9 11 13 15 17 19 21 23 25 |
|

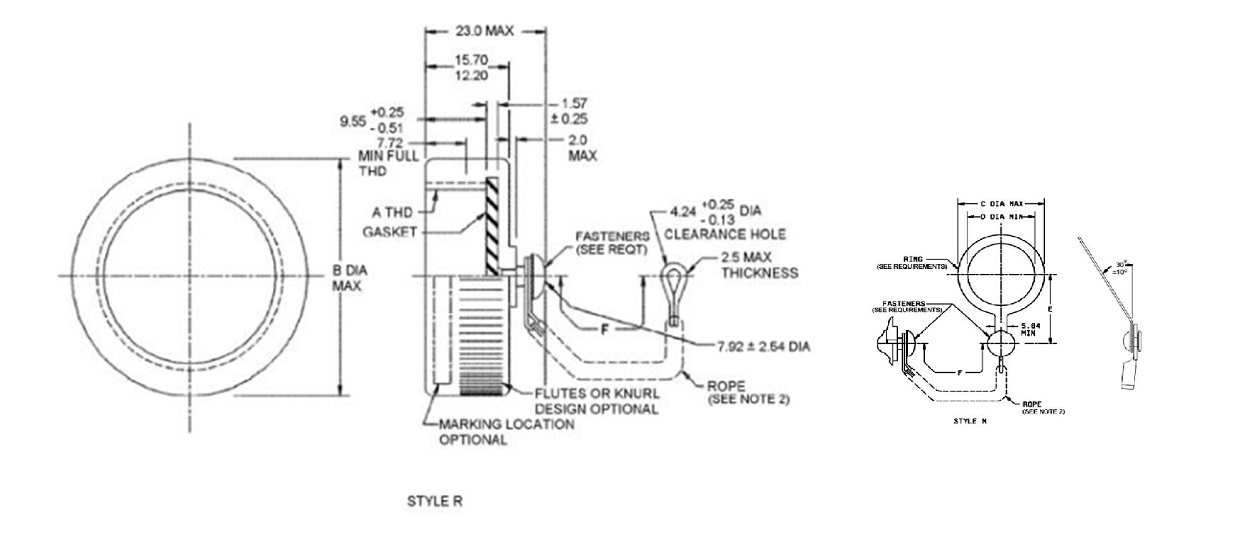

图纸尺寸
| 壳体代码 | A | B | C | D | E | F |
| THD-2B | max | max | min |
+ 13.0 - 7.0 |
||
| 9 | .6250-0.1P-0.3L-TS | 23 | 27 | 17.64 | 21 | 127 |
| 11 | .7500-0.1P-0.3L-TS | 28 | 32 | 21.97 | 22.5 | 127 |
| 13 | .8750-0.1P-0.3L-TS | 31 | 37 | 25.12 | 25 | 127 |
| 15 | 1.0000-0.1P-0.3L-TS | 32 | 40 | 29.92 | 31 | 127 |
| 17 | 1.1875-0.1P-0.3L-TS | 37 | 44 | 32 | 32.5 | 127 |
| 19 | 1.2500-0.1P-0.3L-TS | 39 | 46 | 36.27 | 34 | 127 |
| 21 | 1.3750-0.1P-0.3L-TS | 42 | 49 | 38.25 | 35.5 | 127 |
| 23 | 1.5000-0.1P-0.3L-TS | 45 | 54 | 42.62 | 37.5 | 127 |
| 25 | 1.6250-0.1P-0.3L-TS | 49 | 56 | 44.45 | 39 | 127 |
