| 供应分类: | 连接器 |
|
| 制作商: | JOSLYN SUNBANK COMPANY, LLC | |
| 执行标准: | MIL-DTL-38999/32 |
|
| 标题描述: |
Connector, Electrical Circular, Cover, Protective, Plug, Series III, Metric |
|
| 标题描述: | 连接器,电气,圆形,防护罩,插头,系列III,公制 |
|
| 主称代码 | 壳体镀层 | 壳体代码 | 类型 | |||||||||||||||||||||||||||||||||||||||||||||
| D38999/32 | W | 15 | R | |||||||||||||||||||||||||||||||||||||||||||||
| MIL-DTL-38999/32 |
|
9 11 13 15 17 19 21 23 25 |
|

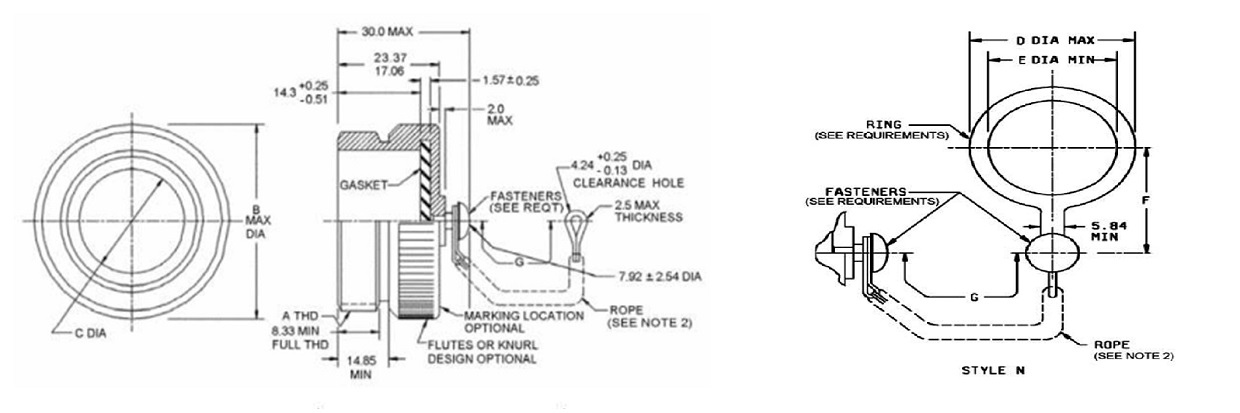

图纸尺寸
| 壳体尺寸 | 壳体代码 | A | B | C | VV |
| max | min | max | thread | ||
| 11 | B | 46.9 | 25.5 | 25 | M15x1.0-6g 0.100R |
| 13 | C | 50.1 | 29.9 | 29.4 | M18x1.0-6g 0.100R |
| 15 | D | 52.8 | 33 | 32.5 | M22x1.0-6g 0.100R |
| 17 | E | 56 | 36.2 | 35.7 | M25x1.0-6g 0.100R |
| 19 | F | 59.2 | 39 | 38.5 | M28x1.0-6g 0.100R |
| 21 | G | 62.8 | 42.2 | 41.7 | M31x1.0-6g 0.100R |
| 23 | H | 65.9 | 45.4 | 44.9 | M34x1.0-6g 0.100R |
| 25 | J | 68.7 | 48.5 | 48 | M37x1.0-6g 0.100R |
