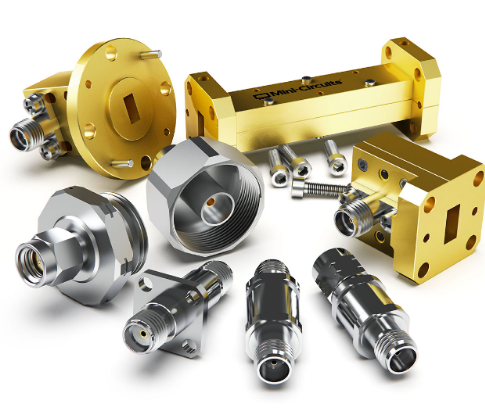

射频适配器，适用于 1.0 毫米、1.85 毫米、2.4 毫米、2.4 毫米 NMD、2.92 毫米、2.92 毫米 NMD、3.5 毫米、BNC、N 型、SMA、SMP、WR19、WR22 和 WR28。多种连接器性别、安装类型和方向可供选择。
频率范围宽至 DC 至 110 GHz！
低插入损耗
出色的驻波比
坚固的结构
| Model Number | Case Style | Conn. 1 | Conn. 2 | F Low(GHz) | F High(GHz) | VSWR(:1)Typ. | Impedance (Ω) |
| Sort | Sort | Sort | Sort | Sort | Sort | Sort | Sort |
| 10F-10F+ | DJ3474 | 1.0mm | 1.0mm | DC | 110 | 1.07 | 50 |
| 10F-10M+ | DJ3474-1 | 1.0mm | 1.0mm | DC | 110 | 1.1 | 50 |
| 10F-185F+ | DJ3474-3 | 1.0mm | 1.85mm | DC | 67 | 1.1 | 50 |
| 10F-185M+ | DJ3474-4 | 1.0mm | 1.85mm | DC | 67 | 1.09 | 50 |
| 10M-10M+ | DJ3474-2 | 1.0mm | 1.0mm | DC | 110 | 1.06 | 50 |
| 10M-185F+ | DJ3474-5 | 1.0mm | 1.85mm | DC | 67 | 1.08 | 50 |
| 10M-185M+ | DJ3474-3 | 1.0mm | 1.85mm | DC | 67 | 1.06 | 50 |
| 24B-KB+ | DJ3049 | 2.92mm | 2.4mm | DC | 40 | 1.05 | 50 |
| 24F-24F+ | DJ2477 | 2.4mm | 2.4mm | DC | 50 | 1.03 | 50 |
| 24F-24M+ | DJ2478 | 2.4mm | 2.4mm | DC | 50 | 1.06 | 50 |
| 24M-24M+ | DJ2479 | 2.4mm | 2.4mm | DC | 50 | 1.04 | 50 |
| 24FPM-24F+ | DJ3008 | 2.4mm | 2.4mm | DC | 50 | 1.04 | 50 |
| 35F-35F50+ | DJ1733 | 3.5mm | 3.5mm | DC | 34 | 1.07 | 50 |
| 35F-35M50+ | DJ1734 | 3.5mm | 3.5mm | DC | 34 | 1.07 | 50 |
| 35M-35M50+ | DJ1863 | 3.5mm | 3.5mm | DC | 34 | 1.02 | 50 |
| 35FFL-35F50+ | DJ1821-2 | 3.5mm | 3.5mm | DC | 33 | 1.07 | 50 |
| 185B-185B+ | DJ2477-3 | 1.85mm | 1.85mm | DC | 67 | 1.04 | 50 |
| 185F-24F+ | DJ2477-1 | 1.85mm | 2.4mm | DC | 50 | 1.08 | 50 |
| 185F-24M+ | DJ2264-1 | 1.85mm | 2.4mm | DC | 50 | 1.08 | 50 |
| 185F-185F+ | DJ2477-2 | 1.85mm | 1.85mm | DC | 67 | 1.05 | 50 |
| 185F-KF+ | DJ2381-1 | 1.85mm | 2.92mm | DC | 40 | 1.05 | 50 |
| 185F-KM+ | DJ2383-1 | 1.85mm | 2.92mm | DC | 40 | 1.04 | 50 |
| 185M-24F+ | DJ2591-3 | 1.85mm | 2.4mm | DC | 50 | 1.06 | 50 |
| 185M-24M+ | DJ2479-1 | 1.85mm | 2.4mm | DC | 50 | 1.04 | 50 |
| 185M-185F+ | DJ2591-2 | 1.85mm | 1.85mm | DC | 67 | 1.04 | 50 |
| 185M-185M+ | DJ2479-2 | 1.85mm | 1.85mm | DC | 67 | 1.04 | 50 |
| 185M-KF+ | DJ2382-1 | 1.85mm | 2.92mm | DC | 40 | 1.04 | 50 |
| 185M-KM+ | DJ2384-1 | 1.85mm | 2.92mm | DC | 40 | 1.03 | 50 |
| KB-KB50+ | DJ3050 | 2.92mm | 2.92mm | DC | 40 | 1.03 | 50 |
| KF-24F+ | DJ2381 | 2.92mm | 2.4mm | DC | 40 | 1.1 | 50 |
| KF-24M+ | DJ2382 | 2.92mm | 2.4mm | DC | 40 | 1.1 | 50 |
| KF-KF50+ | DJ1860 | 2.92mm | 2.92mm | DC | 40 | 1.03 | 50 |
| KF-KM50+ | DJ1861 | 2.92mm | 2.92mm | DC | 40 | 1.04 | 50 |
| KF-SF50+ | DJ1860-1 | 2.92mm | SMA | DC | 18 | 1.06 | 50 |
| KFFL-KF50+ | DJ2261 | 2.92mm | 2.92mm | DC | 40 | 1.05 | 50 |
| KFNMD-KM+ | DJ2931-1 | 2.92mm NMD | 2.92mm | DC | 40 | 1.06 | 50 |
| KFPM-KF50+ | DJ2261-2 | 2.92mm | 2.92mm | DC | 40 | 1.08 | 50 |
| KFR-KM50+ | DJ2442-3 | 2.92mm | 2.92mm | DC | 40 | 1.07 | 50 |
| KM-24F+ | DJ2383 | 2.92mm | 2.4mm | DC | 40 | 1.1 | 50 |
| KM-24M+ | DJ2384 | 2.92mm | 2.4mm | DC | 40 | 1.1 | 50 |
| KM-35F+ | DJ3418 | 2.92mm | 3.5mm | DC | 33 | 1.04 | 50 |
| KM-KM50+ | DJ1862 | 2.92mm | 2.92mm | DC | 40 | 1.02 | 50 |
| KMNMD-24MNMD+ | DJ2931-3 | 2.92mm NMD | 2.4mm NMD | DC | 40 | 1.06 | 50 |
| KMR-24F+ | DJ2442-9 | 2.4mm | 2.92mm | DC | 40 | 1.09 | 50 |
| KMR-KM50+ | DJ2442-4 | 2.92mm | 2.92mm | DC | 40 | 1.06 | 50 |
| NF-BM50+ | DJ1011 | N | BNC | DC | 2 | 1.15 | 50 |
| NF-NF50+ | DJ1092 | N | N | DC | 6 | 1.2 | 50 |
| NF-NM50+ | DJ1028-1 | N | N | DC | 11 | 1.04 | 50 |
| NF-NMR50+ | DJ2575 | N | N | DC | 6 | 1.02 | 50 |
| NF-NMR50-18+ | DJ2575 | N | N | DC | 18 | 1.06 | 50 |
| NF-SF50+ | DJ827 | N | SMA | DC | 18 | 1.2 | 50 |
| NF-SM50+ | DJ826 | N | SMA | DC | 18 | 1.2 | 50 |
| NFFL-NF50+ | DJ1808-3 | N | N | DC | 9 | 1.07 | 50 |
| NFFL-SF50+ | DJ1808 | N | SMA | DC | 18 | 1.2 | 50 |
| NFFL-SM50+ | DJ1808-1 | N | SMA | DC | 18 | 1.08 | 50 |
| NM-NM50+ | DJ2460 | N | N | DC | 6 | 1.03 | 50 |
| NM-NM50-18+ | DJ2460 | N | N | DC | 18 | 1.04 | 50 |
| NM-SF50+ | DJ825 | N | SMA | DC | 18 | 1.25 | 50 |
| NM-SM50+ | DJ824 | N | SMA | DC | 18 | 1.2 | 50 |
| SF-35M50+ | DJ1735 | SMA | 3.5mm | DC | 26.5 | 1.1 | 50 |
| SF-BF50+ | DJ1025 | SMA | BNC | DC | 2 | 1.2 | 50 |
| SF-BM50+ | DJ1023 | SMA | BNC | DC | 2 | 1.2 | 50 |
| SF-MQK50+ | DJ836 | SMA | SMA | DC | 18 | 1.25 | 50 |
| SF-SF50+ | DJ952 | SMA | SMA | DC | 18 | 1.25 | 50 |
| SF-SFRP50+ | DJ2747 | SMA | SMA | DC | 12 | 1.2 | 50 |
| SF-SM50+ | DJ836 | SMA | SMA | DC | 18 | 1.28 | 50 |
| SF-SM50-27+ | DJ3488-1 | SMA | SMA | DC | 27 | 1.08 | 50 |
| SF-SMRP50+ | DJ836 | SMA | SMA | DC | 12 | 1.2 | 50 |
| SFFL-SF50+ | DJ1821 | SMA | SMA | DC | 18 | 1.13 | 50 |
| SFR-KF50+ | DJ2442-6 | SMA | 2.92mm | DC | 18 | 1.11 | 50 |
| SFR-NM50+ | DJ2556 | SMA | N | DC | 18 | 1.13 | 50 |
| SFR-SM50+ | DJ2442-7 | SMA | SMA | DC | 18 | 1.09 | 50 |
| SM-BF50+ | DJ1024 | SMA | BNC | DC | 2 | 1.2 | 50 |
| SM-BM50+ | DJ1022 | SMA | BNC | DC | 2 | 1.2 | 50 |
| SM-SM50+ | DJ951 | SMA | SMA | DC | 18 | 1.3 | 50 |
| SMPF-SF50+ | DJ2142 | SMP | SMA | DC | 18 | 1.07 | 50 |
| SMPF-SM50+ | DJ2143 | SMP | SMA | DC | 18 | 1.07 | 50 |
| SMPM-24M+ | DJ2382-2 | SMP | 2.4mm | DC | 40 | 1.1 | 50 |
| SMPMR-SM50+ | DJ2442-5 | SMP | SMA | DC | 26.5 | 1.1 | 50 |
| SMRP-SM50+ | DJ951 | SMA | SMA | DC | 12 | 1.22 | 50 |
| WR19-EFR+ | UW3147 | 1.85mm | WR19 UG383/U | 40 | 60 | 1.2 | 50 |
| WR22-VFR+ | UW3147-1 | 2.4mm | WR22 UG383/U | 33 | 50 | 1.25 | 50 |
| WR28-KFR+ | UW3144 | 2.92mm | WR28 UG599/U | 26.5 | 40 | 1.2 | 50 |
