HPA-25W-63+毫米集成电路放大器,西安福川电子科技有限公司

HPA-25W-63+毫米集成电路放大器
西安福川电子科技有限公司2023-05-26 15:16:44

HPA-25W-63+-毫米集成电路放大器-西安福川电子科技

600+宽带型号和不断增长的
增益模块，低噪声放大器，功率放大器，射频晶体管，A类和AB类放大器，线性放大器，75Ω有线电视放大器，双匹配放大器，可变增益放大器，脉冲放大器等等！

新产品

连接器放大器

高达 1.7 kW 的可靠宽带性能

迷你电路广泛的连接器放大器选择是测试设置的基本构建模块。具有数百种增益组合、噪声系数、输出功率、线性度和其他性能参数，我们的放大器采用坚固耐用的设计，内置保护功能，具有高可靠性和长寿命要求苛刻的实验室环境。

高达 95 GHz 的宽带宽

用于 ISM 射频能量的固态功率放大器，功率高达 1.7 kW

用于实验室的高功率放大器，高达 100W

噪声系数低至 0.36 dB

OIP3 高达 +60 dBm

提供自定义集成

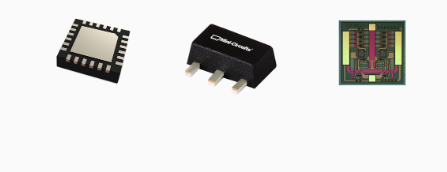

毫米集成电路放大器

行业领先的质量和内部设计的精选

30 +多年的内部MMIC设计和封装经验使Mini-Circuits成为业界顶级MMIC放大器供应商之一。福川电子我们的放大器是制造的在砷化镓上使用HBT和pHEMT工艺，并为各种系统要求提供出色的宽带性能。凭借 300+ 种型号的库存和世界一流的定制设计能力，以及经得起最苛刻条件的质量，我们很可能为您的系统提供解决方案。

Model Number	F Low	F High	Gain	NF	P1dB(dBm) Typ.	OIP3 (dBm) Typ.	Input VSWR	Output VSWR	Voltage	Current	Case Style	Connector	Option
	(MHz)	(MHz)	(dB) Typ.	(dB) Typ.			(:1) Typ.	(:1) Typ.	(V)	(mA)		Type
Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort	Sort
HPA-25W-63+	700	6000	53	13	37	45	1.8	2	110/220 AC	-	NG1942	N	-

HPA-25W-272+	20	2700	50	10	38	50	1.3	2.5	110/220 AC	-	NG1942-1	N	-

HPA-50W-63+	700	6000	56	12	43	50	2.5	3	110/220 AC	-	NG1942	N	-

HPA-100W-63+	2500	6000	58	15	43	50	2.5	2.5	110/220 AC	-	NG1942	N	-

HPA-272+	700	2700	48	8.2	49	55	1.3	1.3	110/220 AC	-	NG1942	N	-

LZY-22+	0.1	200	43	8.9	42	52	1.4	4	24	6000	BT1598	SMA	Heat Sink

LZY-22X+	0.1	200	43	8.9	42	52	1.4	4	24	6000	BT1598	SMA	-

RFE-24M30M075X+	24	30	16	-	42	-	1.9	-	65	1750	VU3196	SMA	-

RFE-24M30M1K7X+	24	30	25	-	62.2	-	1.35	-	65	33162	VW3194	SMA-N	-

TVA-4W-422A+	500	4200	25	10	34	44	1.6	2.5	110/220 AC	-	PJ2059-2	N	-

TVA-11-422A+	10	4200	39	10.5	30	40	1.7	1.8	110/220 AC	-	PJ2059-1	N	-

TVA-63-183	6000	18000	23.6	6.9	18	26	1.5	1.25	110/220 AC	-	AP1601	SMA	-

TVA-63-183A+	6000	18000	24	6.4	17	26	1.5	1.25	110/220 AC	-	PJ2059	SMA	-

TVA-82-213A+	800	21000	25	3	24	30	1.35	1.4	110/220 AC	-	PJ2059	SMA	-

TVA-R5-13A+	0.5	1000	38	10	34	42	1.5	2.5	110/220 AC	-	PJ2059-2	N	-

ZEL-0812LN	800	1200	20	1.5	8	18	2.5	2.5	15	70	EEE132	SMA	-

ZEL-1217LN+	1200	1700	20	1.5	10	25	2.5	2.5	15	70	EEE132	SMA	-

ZEL-1724LN+	1700	2400	20	1.5	10	22	2.5	2.5	15	70	EEE132	SMA	-

ZFL-11AD+	2	2000	8	6.5	-2	14	2.5	2	15	22	Y460	SMA	-

ZFL-11ADB+	2	2000	8	6.5	-2	14	2.5	2	15	22	Y460	SMA	Bracket

ZFL-272VH+	30	2700	16.9	3.4	24.5	47.2	1.13	1.31	15	350	AW2740	SMA	-

ZFL-500+	0.05	500	20	4.2	9	18	1.9	1.9	15	80	Y460	SMA	-

ZFL-500-BNC+	0.05	500	20	4.2	9	18	1.9	1.9	15	80	Y460	BNC	-

ZFL-500B+	0.05	500	20	4.2	9	18	1.9	1.9	15	80	Y460	SMA	Bracket

ZFL-500HLN+	10	500	19	3.8	16	30	1.5	1.5	15	110	Y460	SMA	-

ZFL-500HLNB+	10	500	19	3.8	16	30	1.5	1.5	15	110	Y460	SMA	Bracket

ZFL-500LN+	0.1	500	24	2.9	5	14	1.5	1.6	15	60	Y460	SMA	-

ZFL-500LN-BNC+	0.1	500	24	2.9	5	14	1.5	1.6	15	60	Y460	BNC	-

ZFL-500LNB+	0.1	500	24	2.9	5	14	1.5	1.6	15	60	Y460	SMA	Bracket

ZFL-500LNB-BNC+	0.1	500	24	2.9	5	14	1.5	1.6	15	60	Y460	BNC	Bracket

ZFL-1000+	0.1	1000	17	6	9	18	1.5	2	15	105	Y460	SMA	-

ZFL-1000H+	10	1000	28	4	20	33	1.4	1.4	15	160	SS98	SMA	Heat Sink

ZFL-1000HB+	10	1000	28	4	20	33	1.4	1.4	15	160	SS98	SMA	Bracket

ZFL-1000LN+	0.1	1000	20	2.9	3	14	1.5	2	15	60	Y460	SMA	-

ZFL-1000LNB+	0.1	1000	20	2.9	3	14	1.5	2	15	60	Y460	SMA	Bracket

ZFL-1000VH+	10	1000	20	4.5	25	38	2	2.5	15	320	SS98	SMA	-

ZFL-1000VH2+	10	1000	28	5	25	38	2	2.5	15	320	SS98	SMA	-

ZFL-1000VH2X+	10	1000	28	5	25	38	2	2.5	15	320	SS98	SMA	-

ZFL-1000VHB+	10	1000	20	4.5	25	38	2	2.5	15	320	SS98	SMA	Bracket

ZFL-1000VHX+	10	1000	20	4.5	25	38	2	2.5	15	320	SS98	SMA	-

ZFL-1200G+	10	1200	23	6.5	8	22	1.25	1.5	15	180	Y39	SMA	-

ZFL-1200GB+	10	1200	23	6.5	8	22	1.25	1.5	15	180	Y39	SMA	Bracket

ZFL-1200GH+	10	1200	29	5.5	13	28	1.25	1.5	15	230	Y39	SMA	-

ZFL-1200GHB+	10	1200	29	5.5	13	28	1.25	1.5	15	230	Y39	SMA	Bracket

ZFL-2000+	10	2000	20	7	16	25	2	2	15	120	SS98	SMA	-

ZFL-2000B+	10	2000	20	7	16	25	2	2	15	120	SS98	SMA	Bracket

ZFL-2000G+	10	2000	20	7.5	7	17	1.5	1.5	15	180	Y39	SMA	-

ZFL-2000GH+	10	2000	27	5.5	14	25	1.4	1.5	15	230	Y39	SMA	-

ZFL-2000GHB+	10	2000	27	5.5	14	25	1.4	1.5	15	230	Y39	SMA	Bracket

ZFL-2000X+	10	2000	20	7	16	25	2	2	15	120	SS98	SMA	-

ZFL-2500+	500	2500	28	8	15	27	2.5	2.5	5	220	Y460	SMA	-

ZFL-2500B+	500	2500	28	8	15	27	2.5	2.5	5	220	Y460	SMA	Bracket

ZFL-2500VH+	10	2500	20	5.5	23	35	1.7	2	15	300	SS98	SMA	-

ZFL-2500VHB+	10	2500	20	5.5	23	35	1.7	2	15	300	SS98	SMA	Bracket

ZFL-2500VHX+	10	2500	20	5.5	23	35	1.7	2	15	300	SS98	SMA	-

ZHL-1-2W+	5	500	29	7	33	44	2.1	2.1	24	900	T35	BNC	-

ZHL-1-2W-N+	5	500	29	7	33	44	2.1	2.1	24	900	T35	N	-

ZHL-1-2W-S+	5	500	29	7	33	44	2.1	2.1	24	900	T35	SMA	-

ZHL-1-2WX+	5	500	29	7	33	44	2.1	2.1	24	900	T35	BNC	-

ZHL-1-2WX-S+	5	500	29	7	33	44	2.1	2.1	24	900	T35	SMA	-

ZHL-1A+	2	500	16	11	28	38	2	2	24	600	S32	BNC	-

ZHL-1A-S+	2	500	16	11	28	38	2	2	24	600	S32	SMA	-

ZHL-1W-63-S+	600	6000	35	12	30	35	2.5	3.5	15	1000	U2847	SMA	Heat Sink

ZHL-1W-63X-S+	600	6000	35	12	30	35	2.5	3.5	15	1000	U2847	SMA	-

ZHL-2-8-S+	10	1000	34	7	29	42	2	2	24	700	T34	SMA	-

ZHL-2-8X-S+	10	1000	34	7	29	42	2	2	24	700	T34	SMA	-

ZHL-2-12+	10	1200	26	5	29	45	2.2	2.2	24	750	T34	SMA	-

ZHL-2-12X+	10	1200	26	5	29	45	2.2	2.2	24	750	T34	SMA	-

ZHL-2-S+	10	1000	20	9	29	42	2	2.1	24	600	T34	SMA	-

ZHL-2W-63-S+	600	6000	42	12	33	38	2.5	3.5	28	2000	CP2548-1	SMA	Heat Sink

ZHL-2W-63X-S+	600	6000	42	12	33	38	2.5	3.5	28	2000	CP2548-1	SMA	-

ZHL-2X-S+	10	1000	20	9	29	42	2	2.1	24	600	T34	SMA	-

ZHL-03-5WF+	60	300	35	3	36	49	1.4	1.5	24	2800	CP641	SMA	Heat Sink

ZHL-3A+	0.4	150	24	11	29.5	38	2	2	24	600	S32	BNC	-

ZHL-03-5WFX+	60	300	35	3	36	49	1.4	1.5	24	2800	CP641	SMA	-

ZHL-3A-S+	0.4	150	24	11	29.5	38	2	2	24	600	S32	SMA	-

ZHL-4W-422+	500	4200	25	10	34	44	1.6	2.6	28	3000	BT1972	SMA	Heat Sink

ZHL-4W-422X+	500	4200	25	10	34	44	1.6	2.6	28	3000	BT1972	SMA	-

ZHL-5W-1+	5	500	45	4	37	49	2	2.5	24	3300	DDD131	SMA	Heat Sink

ZHL-5W-1X+	5	500	45	4	37	49	2	2.5	24	3300	DDD131	SMA	-

ZHL-5W-2G+	800	2000	45	8	37	44	1.7	1.5	24	2000	DDD131	SMA	Heat Sink

ZHL-5W-2GX+	800	2000	45	8	37	44	1.7	1.5	24	2000	DDD131	SMA	-

ZHL-5W-63-S+	600	6000	45	12	37	42	2.5	3.5	28	3500	CP2548-2	SMA	Heat Sink

ZHL-5W-63X-S+	600	6000	45	12	37	42	2.5	3.5	28	3500	CP2548-2	SMA	-

ZHL-5W-202-S+	10	2000	50	10	36	45	1.2	2	28	3000	BT1689-1	SMA	Heat Sink

ZHL-5W-422+	500	4200	25	7	35	45	1.7	5.47	28	3000	BT1896	SMA	Heat Sink

ZHL-5W-422X+	500	4200	25	7	35	45	1.7	5.47	28	3000	BT1896	SMA	-

ZHL-6A+	0.0025	500	25	9.5	22	34	1.8	2	24	350	S32	BNC	-

ZHL-6A-S+	0.0025	500	25	9.5	22	34	1.8	2	24	350	S32	SMA	-

ZHL-10M4G21W0+	10	4200	37	6	32	44	1.3	1.5	28	800	U36	SMA	Heat Sink

ZHL-10M4G21W0X+	10	4200	37	6	32	44	1.3	1.5	28	800	U36	SMA	-

ZHL-10W-2G+	800	2000	43	7	40	50	1.3	1.3	24	5000	BT1204	SMA	Heat Sink

ZHL-10W-2GX+	800	2000	43	7	40	50	1.3	1.3	24	5000	BT1204	SMA	-

ZHL-10W-202-S+	10	2000	50	10	38	45	2	2	28	5000	BT1689-1	SMA	Heat Sink

ZHL-15W-422-S+	600	4200	46	10	39	47	1.7	3.5	28	3500	CP2548	SMA	Heat Sink

ZHL-15W-422X-S+	600	4200	46	10	39	47	1.7	3.5	28	3500	CP2548	SMA	-

ZHL-16W-43+	1800	4000	45	6	41	47	1.5	1.3	28	4300	BT1344	SMA	Heat Sink

ZHL-20W-13+	20	1000	50	3.5	41	50	1.7	2.5	24	2800	CP641	SMA	Heat Sink

ZHL-20W-13SW+	20	1000	50	3.5	41	50	1.7	2.5	24	2800	CP1683	SMA	Heat Sink

ZHL-20W-13SWX+	20	1000	50	3.5	41	50	1.7	2.5	24	2800	CP1683	SMA	-

ZHL-20W-13X+	20	1000	50	3.5	41	50	1.7	2.5	24	2800	CP641	SMA	-

ZHL-20W-83-S+	4000	8000	56	11	39	50	1.6	1.7	28	4000	CP2548-2	SMA	Heat Sink

ZHL-20W-83X-S+	4000	8000	56	11	39	50	1.6	1.7	28	4000	CP2548-2	SMA	-

ZHL-20W-202-S+	20	2000	53	10	39	45	2	3.5	28	4000	BT1689-1	SMA	Heat Sink

ZHL-20W-202X-S+	20	2000	53	10	39	45	2	3.5	28	4000	BT1689-1	SMA	-

ZHL-25W-63+	700	6000	53	13	37	45	1.8	2	24	12000	BT1834-2	SMA	Heat Sink

ZHL-25W-63X+	700	6000	53	13	37	45	1.8	2	24	12000	BT1834-2	SMA	-

ZHL-25W-272+	20	2700	50	10	40	49	2	3.5	28	3700	BT2119	SMA	Heat Sink

ZHL-25W-272X+	20	2700	50	10	40	49	2	3.5	28	3700	BT2119	SMA	-

ZHL-30W-252+	600	2500	50	5.5	44	52	1.3	1.2	28	6300	BT1344	SMA	Heat Sink

ZHL-30W-252X-S+	600	2500	50	5.5	44	52	1.3	1.2	28	6300	BT1344	SMA	-

ZHL-30W-262+	2300	2550	50	7	43	50	1.3	1.3	28	4300	BT1344	SMA	Heat Sink

ZHL-30W-262X-S+	2300	2550	50	7	43	50	1.3	1.3	28	4300	BT1344	SMA	-

ZHL-32A+	0.05	130	25	10	29	38	2	2	24	600	S32	BNC	-

ZHL-32A-S+	0.05	130	25	10	29	38	2	2	24	600	S32	SMA	-

ZHL-40W-372-S+	3400	3700	50	15	46	52	1.5	1.5	28	6200	BT1344	SMA	Heat Sink

ZHL-42+	600	4200	34	8	30	38	2.5	2.5	15	1000	U36	SMA	Heat Sink

ZHL-42W+	10	4200	30	8	28	38	2.5	2.5	15	880	U36	SMA	Heat Sink

ZHL-42WX+	10	4200	30	8	28	38	2.5	2.5	15	880	U36	SMA	-

ZHL-42X+	600	4200	34	8	30	38	2.5	2.5	15	1000	U36	SMA	-

ZHL-50W-52+	50	500	50	6	47.5	55	1.6	2	24	9300	BT1165	SMA	Heat Sink

ZHL-50W-63+	700	6000	59	11	42	53	1.5	1.5	40	6000	BT2533	SMA	Heat Sink

ZHL-50W-GAN+	20	500	43.5	7	48	55	1.7	2.6	28	7400	BT1165	SMA	Heat Sink

ZHL-50W-GANX+	20	500	43.5	7	48	55	1.7	2.6	28	7100	BT1165	SMA	-

ZHL-72A+	0.0025	700	25	7.7	24	34	2	2	24	350	S32	BNC	-

ZHL-100W-13+	800	1000	50	7	49	60	1.3	1.4	28	14500	BT1689	SMA-N	Heat Sink

ZHL-100W-52+	50	500	50	6.5	48.5	57	1.45	2.5	24	10500	BT1165	SMA	Heat Sink

ZHL-100W-63+	2500	6000	58	12	43	54	2	1.2	30	8000	BT1834-3	SMA-N	Heat Sink

ZHL-100W-272+	700	2700	48	8.2	49	50	1.5	1.5	30	16000	BT2247	SMA-N	Heat Sink

ZHL-100W-352+	3000	3500	50	7.3	50	55	1.35	1.5	28	20000	BT1834	SMA-N	Heat Sink

ZHL-100W-382+	3250	3850	50	9.5	50	58	1.3	1.3	28	18000	BT1834	SMA-N	Heat Sink

ZHL-100W-GAN+	20	500	42	7	49	60	1.5	2.5	30	9400	BT1165	SMA	Heat Sink

ZHL-100W-GANX+	20	500	42	7	49	60	1.5	2.5	30	9400	BT1165	SMA	-

ZHL-122LM+	40	1200	12.3	3.9	23	40	1.5	1.5	6	260	S860	SMA	-

ZHL-0812HLN+	800	1200	36	1.5	26	36	1.4	1.3	15	725	NN92	SMA	Heat Sink

ZHL-0812HLNX+	800	1200	36	1.5	26	36	1.4	1.3	15	725	NN92	SMA	-

ZHL-1000-3W+	500	1000	44	3.5	37	45	2	2.5	24	2250	DDD131	SMA	Heat Sink

ZHL-1000-3WX+	500	1000	44	3.5	37	45	2	2.5	24	2250	DDD131	SMA	-

ZHL-1010+	50	1000	9.5	3.5	26	46	2	2	12	525	S32	SMA	-

ZHL-1042J+	10	4200	25	6	20	30	2.5	2.5	15	330	NN92	SMA	Heat Sink

ZHL-1042JX+	10	4200	25	6	20	30	2.5	2.5	15	330	NN92	SMA	-

ZHL-1217HLN+	1200	1700	36	1.5	26	36	1.4	1.3	15	725	NN92	SMA	Heat Sink

ZHL-1217HLNX+	1200	1700	36	1.5	26	36	1.4	1.3	15	725	NN92	SMA	-

ZHL-1217MLN+	1200	1700	35	1.1	22	36	1.4	1.3	15	380	S32	SMA	-

ZHL-1724HLN+	1700	2400	30	1.5	26	36	1.4	1.6	15	725	NN92	SMA	Heat Sink

ZHL-1724HLNX+	1700	2400	30	1.5	26	36	1.4	1.6	15	725	NN92	SMA	-

ZHL-2010+	50	1000	20	3.7	26	46	2	2	12	900	S32	SMA	-

ZHL-2150+	950	2450	30	3.5	11	25	1.3	1.3	12	110	S860-1	SMA	-

ZHL-2425-250X+	2400	2500	42	-	54.5	-	1.9	-	32	15000	VU3193	MCX / N	-

ZHL-3010+	50	1000	30	5.5	26	46	2	1.6	12	1000	S32	SMA	-

ZHL-4240+	600	4200	42	8	30	38	2.5	2.5	15	1000	U36	SMA	Heat Sink

ZHL-4240W+	10	4200	42	6	30	38	2.5	2.5	15	1000	U36	SMA	Heat Sink

ZHL-4240WX+	10	4200	42	6	30	38	2.5	2.5	15	1000	U36	SMA	-

ZHL-4240X+	600	4200	42	8	30	38	2.5	2.5	15	1000	U36	SMA	-

ZHL0G60G7100+	600	700	50	7	48.5	-	1.6	-	28	14000	BT3411	SMA-N	Heat Sink

ZHL0G60G7100X+	600	700	50	7	48.5	-	1.6	-	28	14000	BT3411	SMA-N	-

ZHL2G02G4125+	2000	2400	52	7	49.5	-	2	-	28	17000	BT1689	SMA-N	Heat Sink

ZHL6G018G020+	6000	18000	57	6.8	34	42	1.4	2	20	5000	BT3013	SMA	Heat Sink

ZHL6G018G020X+	6000	18000	57	6.8	34	42	1.4	2	20	5000	BT3013	SMA	-

ZJL-3G+	20	3000	14	3.8	8	22	1.4	1.6	12	45	BW459	SMA	-

ZJL-4G+	20	4000	12.4	5.5	14	30.5	1.4	1.6	12	75	BW459	SMA	-

ZJL-4HG+	20	4000	17	4.5	15	30	1.5	1.4	12	75	BW459	SMA	-

ZJL-5G+	20	5000	9	8.5	15	32	1.6	1.3	12	80	BW459	SMA	-

ZJL-6G+	20	6000	13	4.5	10	24	1.5	1.4	12	50	BW459	SMA	-

ZJL-7G+	20	7000	10	5	9	24	1.5	1.5	12	50	BW459	SMA	-

ZJL-153+	5000	15000	13	6	18	23	1.7	1.7	5	180	BW459	SMA	-

ZKL-1R5+	10	1500	40	3	15	31	1.4	1.6	12	115	BY493	SMA	-

ZKL-2+	10	2000	33.5	4	15	31	1.4	1.4	12	120	BY493	SMA	-

ZKL-2R5+	10	2500	30	5	15	31	1.4	1.4	12	120	BY493	SMA	-

ZKL-2R7+	10	2700	24	5	13	30	1.3	1.4	12	120	BY493	SMA	-

ZKL-33ULN-S+	400	3000	35	0.36	18	37	1.3	1.4	5	100	BY493	SMA	-

ZPUL-30P+	0.0025	700	35	7.7	22	34	2	2	24	400	S32	BNC	-

ZQL-900LN+	824	849	15	1.3	21	35	1.2	1.1	15	160	CW686	SMA	-

ZQL-900MLN+	824	849	25.5	1.5	24.5	41	1.3	1.4	15	230	CW686	SMA	-

ZQL-1900LN+	1850	1910	15	1.5	19	37	1.15	1.25	15	160	CW686	SMA	-

ZQL-2700MLNW+	2200	2700	25	1.5	25	38	1.25	1.15	15	350	CW686	SMA	-

ZRL-400+	150	400	31	2.5	25	42	1.5	1.25	12	450	FJ893	SMA	-

ZRL-700+	250	700	30	2	23.5	46	1.1	1.1	12	575	FJ893	SMA	-

ZRL-1150LN+	650	1400	33	1	25	41	1.4	1.3	12	500	FJ893	SMA	-

ZRL-1200+	650	1200	28	2	23.5	46	1.2	1.2	12	575	FJ893	SMA	-

ZRL-2150+	950	2150	25	1.5	22	34	1.3	1.2	12	300	FJ893	SMA	-

ZRL-2300+	1400	2300	29	2.5	26	42	1.2	1.16	12	470	FJ893	SMA	-

ZRL-2400LN+	1000	2400	30	1	23	39	1.6	1.4	12	520	FJ893	SMA	-

ZRL-3500+	700	3500	21	2.4	24	45	1.4	1.3	12	460	FJ893	SMA	-

ZRON-8G+	2000	8000	20	6	20	30	2	2	15	310	AV243	SMA	Heat Sink

ZRON-8GX+	2000	8000	20	6	20	30	2	2	15	310	AV243	SMA	-

ZVA-0.5W303G+	10	30000	24.5	4.5	25	35	1.6	1.8	12	460	AV2554-3	2.92mm	Heat Sink

ZVA-0.5W303GX+	10	30000	24.5	4.5	25	35	1.6	1.8	12	460	AV2554-3	2.92mm	-

ZVA-1W-103+	500	10000	39	4	30	39	1.5	1.4	15	750	CP3191	SMA	Heat Sink

ZVA-1W-103X+	500	10000	39	4	30	39	1.5	1.4	15	750	CP3191	SMA	-

ZVA-183-S+	700	18000	26	3	24	33	1.35	1.25	12	400	AV1280	SMA	Heat Sink

ZVA-183A-S+	700	18000	24.5	4.5	24	34	1.35	1.35	12	400	AV2554-3	SMA	Heat Sink

ZVA-183G-S+	500	18000	38	3	25	36	1.9	2	15	770	CP1755	SMA	Heat Sink

ZVA-183W-S+	100	18000	28	3	26	34.5	1.3	1.6	15	625	CP1755	SMA	Heat Sink

ZVA-183X-S+	700	18000	26	3	24	33	1.35	1.25	12	400	AV1280	SMA	-

ZVA-183AX-S+	700	18000	24.5	4.5	24	34	1.35	1.35	12	400	AV2554-3	SMA	-

ZVA-183GX-S+	500	18000	38	3	25	36	1.9	2	15	770	CP1755	SMA	-

ZVA-183WA-S+	100	18000	25	4	29	38	1.3	1.5	12	500	AV2554-3	SMA	Heat Sink

ZVA-183WX-S+	100	18000	28	3	26	34.5	1.3	1.6	15	625	CP1755	SMA	-

ZVA-183WAX-S+	100	18000	25	4	29	38	1.3	1.5	12	500	AV2554-3	SMA	-

ZVA-203GX+	1500	21000	29	3	15.5	27.5	1.5	1.6	5	450	AV2554-1	2.92mm	-

ZVA-213-S+	800	21000	26	3	24	33	1.35	1.25	12	400	AV1280	SMA	Heat Sink

ZVA-213A-S+	800	21000	24.5	4.5	24	34	1.35	1.35	12	400	AV2554-3	SMA	Heat Sink

电话：029-88256270 传真：029-88257182 网址：www.aiboco.com 邮箱：sales@aiboco.com
