Tensolite provides extensive engineering support to assist your project team in designing and manufacturing speciality cables.We specialize in custom designed, precision engineered cables to fit the toughest design criteria. Our design team knows that many applications require hybrid constructions in order to meet stringent packaging requirements.We work closely with end users to develop prototype samples for design verification. Tensolite has produced multiconductor cables and special constructions designed to address the following:

• Interprocessor Connection • Precision Clock Line coaxial cables for critical timing applications • High Density I/O applications • Multiconductor Twisted Pair Cables for systems requiring low skew between signal lines • Analog Read/Write Channel cables • Reduced Diameter multiconductor applications The following product tables list some of our capabilities in custom engineered cables. These tables are not all inclusive, representing only a fraction of the possibilities available.“Standard” construction does not apply since the majority of the cables we manufacture are One-ofa-Kind.

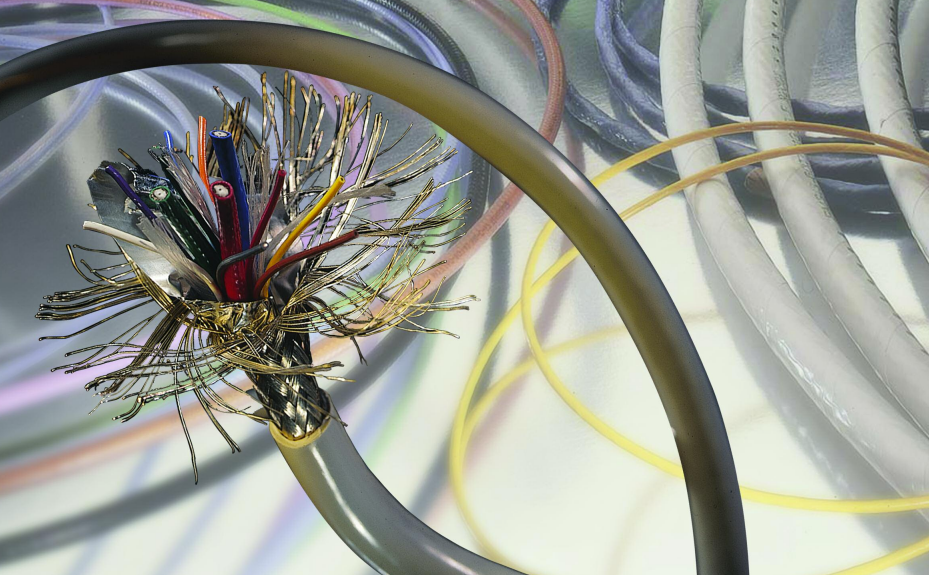

M u l t i c o n d u c t o r C o a x i a l C a b l e s • Component Counts from 4 coaxes to 44 individual coaxes • Dielectric materials: PTFE or Polyolefins • Braided shields and Aluminum/Polyester drain wire configurations available • Combinations of Braid and Aluminum/Polyester shields available to provide improved EMI/RFI Performance. P r e c i s i o n M i n i a t u r e C o a x i a l C a b l e s • Conductor sizes range from 28 to 34 AWG • PTFE Dielectric • Extremely tight electrical and mechanical tolerances • Stable impedance and minimal skew designs available M u l t i c o n d u c t o r T w i s t e d P a i r C a b l e s • Conductor counts range from 2 through 26 pair • Dielectric materials: PTFE or Polyolefins • Minimal skew designs available producing low line-to-Iine skew.

Tensolite ACCULITE® UT wire is a series of lightweight, smaller diameter lead wire for applications requiring thinner wall thickness and smaller conductor sizes.

Tensolite produces many different versions of coaxial cable by utilizing combinations of primary dielectric and shielding configurations. The ACCULITE® system provides Tensolite with the ability to develop a wide range of coaxial constructions to fit applications requiring small, flexible cables with highly engineered electrical properties
