JT00RE-8-35P连接器Amphenol
西安福川电子科技有限公司2023-09-19 11:10:46

描述：

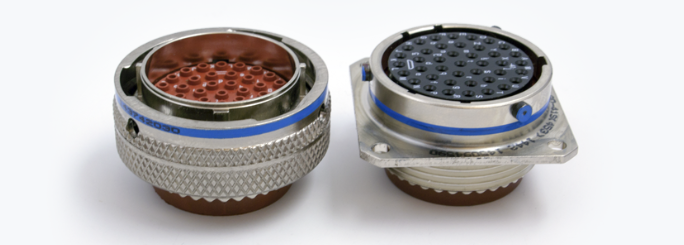

Amphenol® MIL-DTL-38999 系列 II 连接器是为满足航空航天工业的需求而开发的，并为 MIL-C-38999 规范的开发提供了动力，该规范后来被 MIL-DTL-38999 取代。Amphenol 的 MIL-DTL-38999 系列 II 和商用 JT 系列连接器满足或超过 Mil-Spec 要求，并提供铝或不锈钢以及几种不同的表面处理选项。Amphenol 还符合 MIL-DTL-27599 系列 II 连接器规范。

特点和优点：

轻巧、节省空间的设计
快速正向接头 - 3 点卡口锁定系统
消除雾化 - 采用 5 键/键槽设计
防错交替定位 - 由不同的键/键槽位置投保
EMI 屏蔽 - 接地手指可选
九种外壳尺寸和多种外壳样式
触点选项 - 尺寸 8、10、12、16、20、22M 和 22D 压接、焊接、PCB、绕线、同轴电缆、双同轴、三同轴、热电偶、光纤和滤波器
固定焊点 - 提供符合 MIL-DTL-27599 标准的商用和军用焊接版本
库存支持通用性 - 使用标准 MIL-DTL-38999 触点、插入排列和应用工具。
提供符合 RoHS 标准的产品 - 请咨询 Amphenol 航空航天运营部门。

JT00RE-8-35P(011)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(011) Finish: (011) Chromate treated (Iridite 14-2) 125°C
JT00RE-8-35P(014)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(014) Finish: (014) Olive drab cadmium plate nickel base 175°C
JT00RE-8-35P(023)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(023) Finish: (023) Electroless nickel 200°C
JT00RE-8-35P(033)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(033) Finish: (033) Zinc-Nickel Plated 175°C
JT00RE-8-35P(045)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(045) Finish: (045) Nickel-PTFE 175°C
JT00RE-8-35P(300)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(300) Finish and Strain Relief: (300) Anodic Coating (Alumilite) 200°
JT00RE-8-35P(344)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(344) Finish and Strain Relief: (344) Chromate treated (Iridite 14-2) 125°C
JT00RE-8-35P(424)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(424) Finish and Strain Relief: (424) Electroless Nickel 200°C
JT00RE-8-35P(453)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(453) Finish: (453) Electroless Nickel, space compatible 200°C
JT00RE-8-35P(467)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(467) Finish and Strain Relief: (467) Electroless nickel, space compatible 200°C
JT00RE-8-35P(582)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(582) Finish and Strain Relief: (582) Nickel-PTFE 175°C
JT00RE-8-35P(DS)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(DS) (DS): AP-93 Tri-Nickel Alloy, Aluminum, 1000 Hr., 200°C, -65dB@100Hz
JT00RE-8-35P(SR)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	Shell Size 8: Normal 100°	8-35	(SR) Finish and Strain Relief: (SR) Cadmium plated nickel base 175°C
JT00RE-8-35PA(011)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(011) Finish: (011) Chromate treated (Iridite 14-2) 125°C
JT00RE-8-35PA(014)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(014) Finish: (014) Olive drab cadmium plate nickel base 175°C
JT00RE-8-35PA(023)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(023) Finish: (023) Electroless nickel 200°C
JT00RE-8-35PA(045)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(045) Finish: (045) Nickel-PTFE 175°C
JT00RE-8-35PA(300)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(300) Finish and Strain Relief: (300) Anodic Coating (Alumilite) 200°
JT00RE-8-35PA(344)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(344) Finish and Strain Relief: (344) Chromate treated (Iridite 14-2) 125°C
JT00RE-8-35PA(424)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(424) Finish and Strain Relief: (424) Electroless Nickel 200°C
JT00RE-8-35PA(453)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(453) Finish: (453) Electroless Nickel, space compatible 200°C
JT00RE-8-35PA(467)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(467) Finish and Strain Relief: (467) Electroless nickel, space compatible 200°C
JT00RE-8-35PA(582)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(582) Finish and Strain Relief: (582) Nickel-PTFE 175°C
JT00RE-8-35PA(DS)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(DS) (DS): AP-93 Tri-Nickel Alloy, Aluminum, 1000 Hr., 200°C, -65dB@100Hz
JT00RE-8-35PA(SR)	Commercial	Crimp	JT00 JT00: Wall Mount Receptacle	RE- RE-: Environmental crimp applications. Box mount versions using spacer grommets are not environmental.	P P: Pin Contacts Crimp	A Shell Size 8: A 82°	8-35	(SR) Finish and Strain Relief: (SR) Cadmium plated nickel base 175°C
