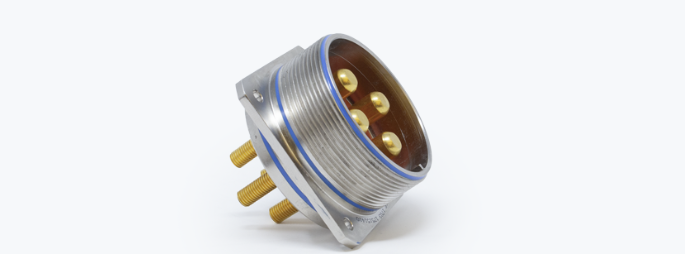

高功率 5015 系列采用先进的插座触点技术，与标准 40 连接器触点相比，载流能力提高了 50-5015%。这些高功率连接器采用成熟的 RADSOK® 技术以及大电流、高温回火夹具，可为任何工作温度提供解决方案。利用久经考验的 Matrix 5015 和 MGT-5015 连接器配接设计和一系列新的触点端接方法，高功率系列在标准目录产品中提供定制连接器性能。
与标准 40 连接器相比，载流能力提高 50-5015%
目录定制缩短了设计导入时间
标准接口允许用户在需要高性能的地方利用现有的布线设计
触点端接方法，包括压接、公螺纹和母螺纹端接、焊接、PCB 和母线
超过 25 种工具刀片布置，载流能力从 50 到 1200 安培
易于定制，型号可在 48 小时内提供
| Part Number | Connector Type | Shell Style | Shell Finish | Contact Type | Shell Size Insert Arrangement | Contacts | Alternate Keying Position |
|---|---|---|---|---|---|---|---|
| PKB00DTM16-12P | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | P P: Pin | 16-12: Normal |
| PKB00DTM16-12P | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | P P: Pin | Normal |
| PKB00DTM16-12R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | R R: RADSOK recommended up to 150°C | 16-12: Normal |
| PKB00DTM16-12R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | R R: RADSOK recommended up to 150°C | Normal |
| PKB00DTM16-12S | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | S S: Standard Socket Contacts | 16-12: Normal |
| PKB00DTM16-12S | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | S S: Standard Socket Contacts | Normal |
| PKB00DTM16-12T | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | T T: Temper-Grip recommended for 150°C + | 16-12: Normal |
| PKB00DTM16-12T | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 16-12 | T T: Temper-Grip recommended for 150°C + | Normal |
| PKB00DTM18-13R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | R R: RADSOK recommended up to 150°C | 18-13: Normal |
| PKB00DTM18-13R | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | R R: RADSOK recommended up to 150°C | Normal |
| PKB00DTM18-13RW | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | R R: RADSOK recommended up to 150°C | W 18-13: W 80° |
| PKB00DTM18-13RX | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | R R: RADSOK recommended up to 150°C | X 18-13: X 110° |
| PKB00DTM18-13RY | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | R R: RADSOK recommended up to 150°C | Y 18-13: Y 250° |
| PKB00DTM18-13RZ | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | R R: RADSOK recommended up to 150°C | Z 18-13: Z 280° |
| PKB00DTM18-13S | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | S S: Standard Socket Contacts | 18-13: Normal |
| PKB00DTM18-13SW | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | S S: Standard Socket Contacts | W 18-13: W 80° |
| PKB00DTM18-13SX | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | S S: Standard Socket Contacts | X 18-13: X 110° |
| PKB00DTM18-13SY | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | S S: Standard Socket Contacts | Y 18-13: Y 250° |
| PKB00DTM18-13SZ | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | S S: Standard Socket Contacts | Z 18-13: Z 280° |
| PKB00DTM18-13T | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | T T: Temper-Grip recommended for 150°C + | 18-13: Normal |
| PKB00DTM18-13T | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | T T: Temper-Grip recommended for 150°C + | Normal |
| PKB00DTM18-13TW | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | T T: Temper-Grip recommended for 150°C + | W 18-13: W 80° |
| PKB00DTM18-13TX | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | T T: Temper-Grip recommended for 150°C + | X 18-13: X 110° |
| PKB00DTM18-13TY | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | T T: Temper-Grip recommended for 150°C + | Y 18-13: Y 250° |
| PKB00DTM18-13TZ | PKB PKB: 5015 High Power with bayonet coupling | 00 00: Wall Mount Receptacle | DT DT: Durmalon (PTFE) | M M: Male Thread Termination (Potted-in) | 18-13 | T T: Temper-Grip recommended for 150°C + | Z 18-13: Z 280° |
